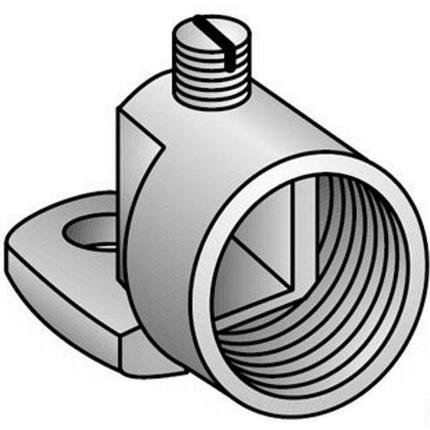

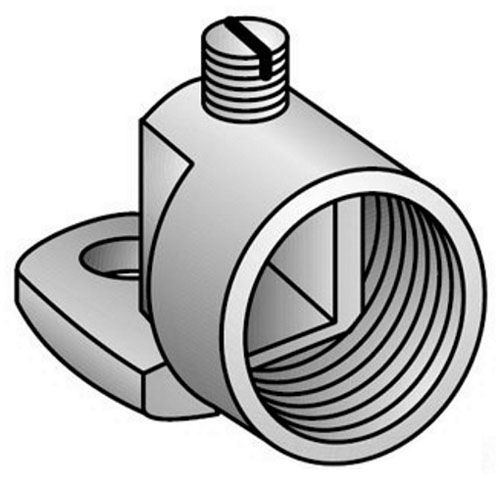

GH-75G, Conduit Grounding Hub for Electrical Grounding

The GH-75G Conduit Grounding Hub by O-Z Gedney is designed for use with universal ground clamps to connect grounding conductors run bare, in armor, or in conduit. This grounding hub is suitable for electrical distributors and lighting solutions providers requiring reliable grounding connections in wire and cable installations. It supports conductor sizes ranging from 4 AWG to 2/0 AWG and is constructed for durability and corrosion resistance in industrial and commercial electrical applications.

Specifications

• Manufacturer: O-Z Gedney
• Manufacturer Part #: GH-75G
• Conductor Size: 4 - 2/0 AWG
• Body Material: Hot Dip Galvanized Malleable Iron
• Length: 1-1/4 IN
• Product Weight: 0.2300 lbs
• Application: For Use With Universal Ground Clamps To Connect Grounding Conductors Run Bare, In Armor Or In Conduit

Features

• Hot dip galvanized finish for corrosion resistance
• Malleable iron body provides mechanical strength
• Compatible with all basic ground clamp systems
• UL Listed and compliant with NEC standards (UL Standard 514A, UL Listed E-24264)
