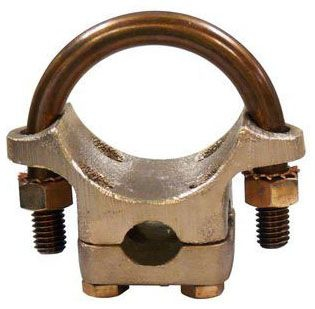

GH-100G Conduit Ground Hub - Electrical Grounding Solutions

The GH-100G Conduit Ground Hub by O-Z Gedney is designed for use with universal ground clamps to securely connect grounding conductors run bare, in armor, or in conduit. This grounding fitting is suitable for electrical distributors and switchgear suppliers seeking reliable grounding solutions compliant with industry standards.

Specifications

• Trade Size: 1 Inch
• Conductor Size Range: 1 AWG to 250 KCMIL
• Body Material: Hot Dip Galvanized Malleable Iron
• Screw Material: Zinc Electroplated Steel
• Length: 1-1/2 IN
• UL Approval: UL 514A
• Applicable Standards: Federal Specification W-F-406E, NEC/CEC
• Product Weight: 0.4500 lbs

Features

• Compatible with universal ground clamps for versatile grounding conductor connections
• Hot dip galvanized finish for corrosion resistance in industrial environments
• Meets UL and federal specifications ensuring safety and performance
• Constructed from durable malleable iron for mechanical strength

Downloads & Links

• Catalog
