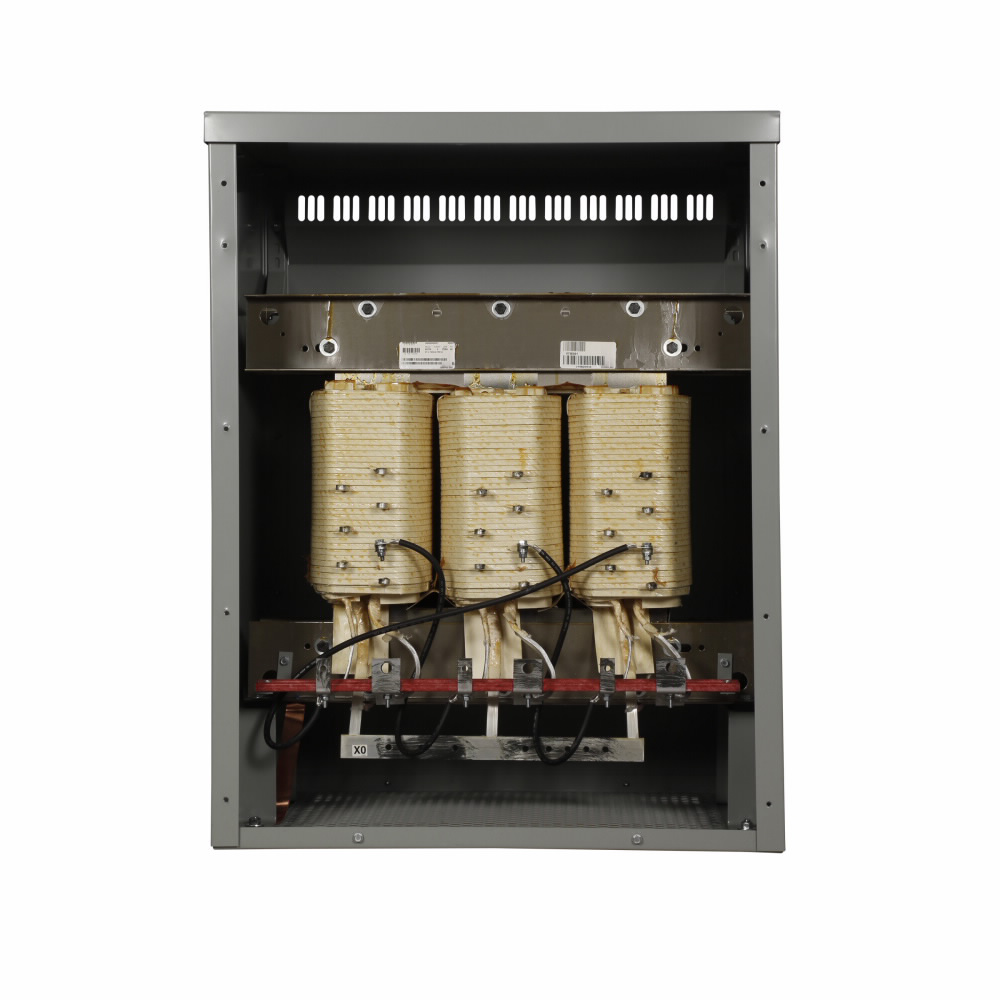

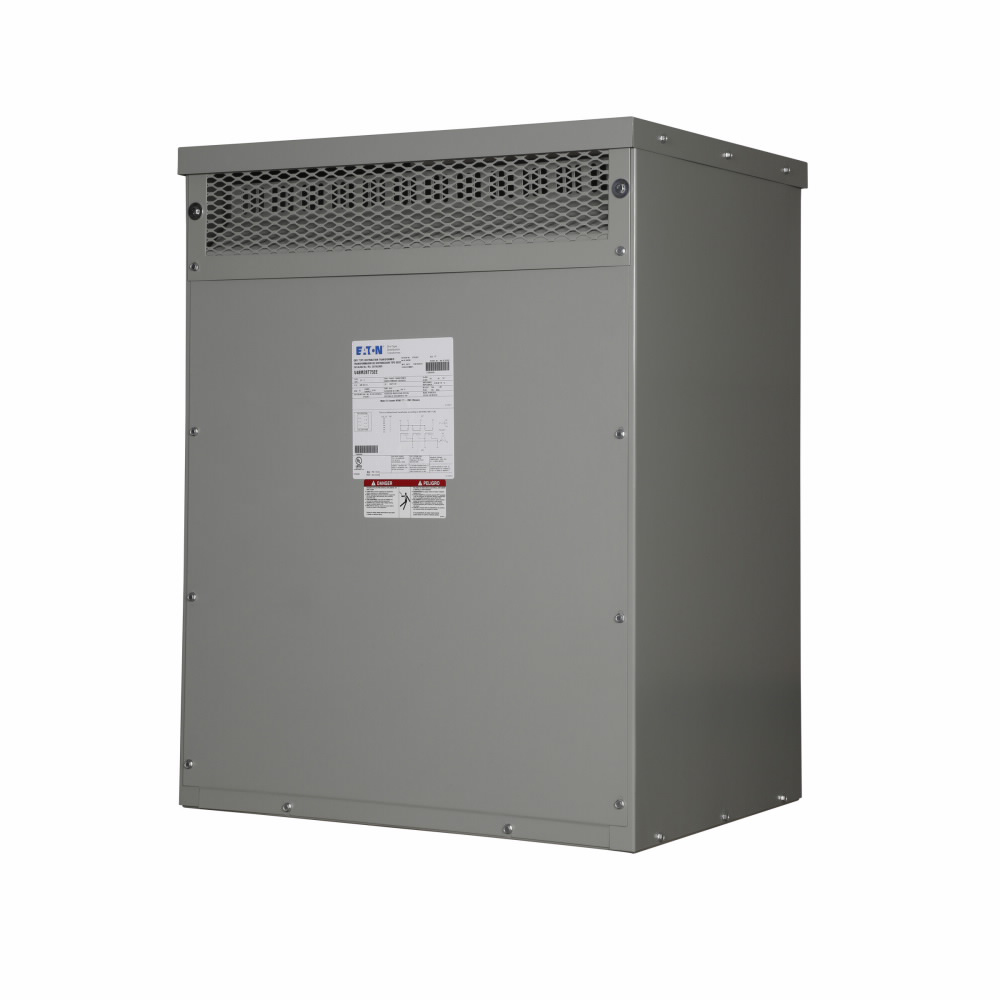

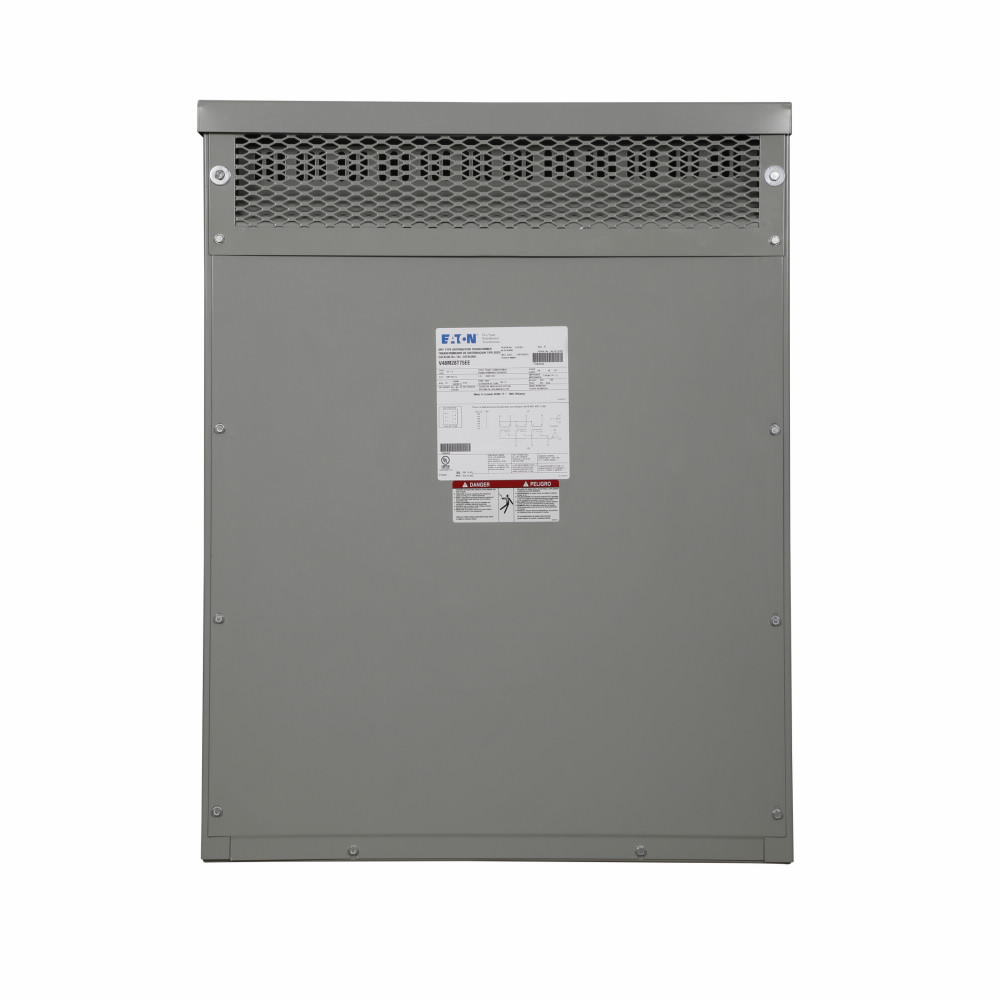

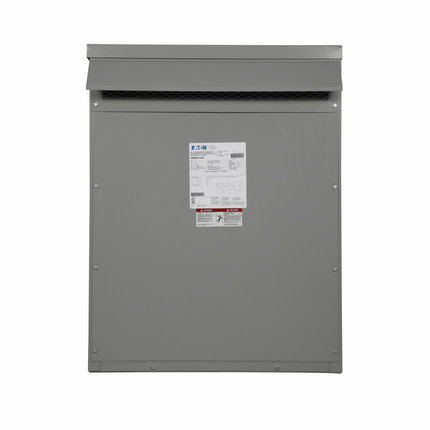

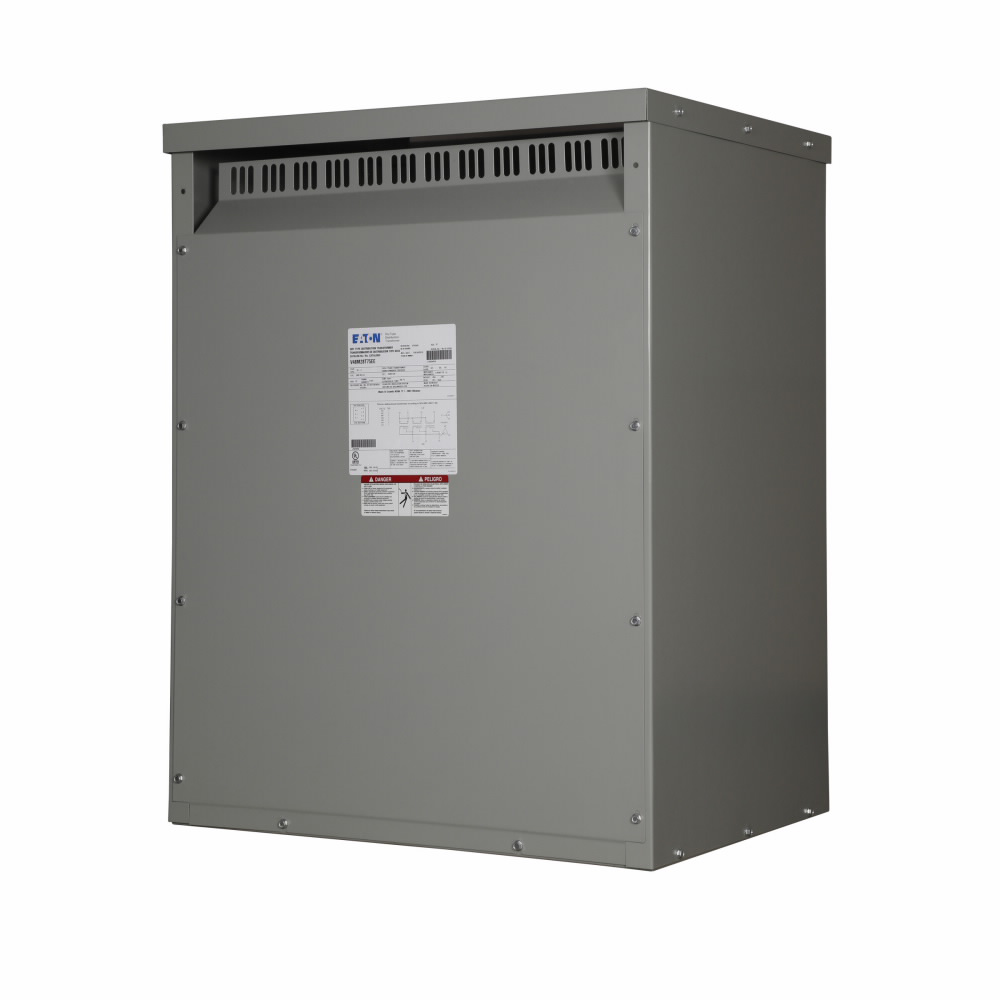

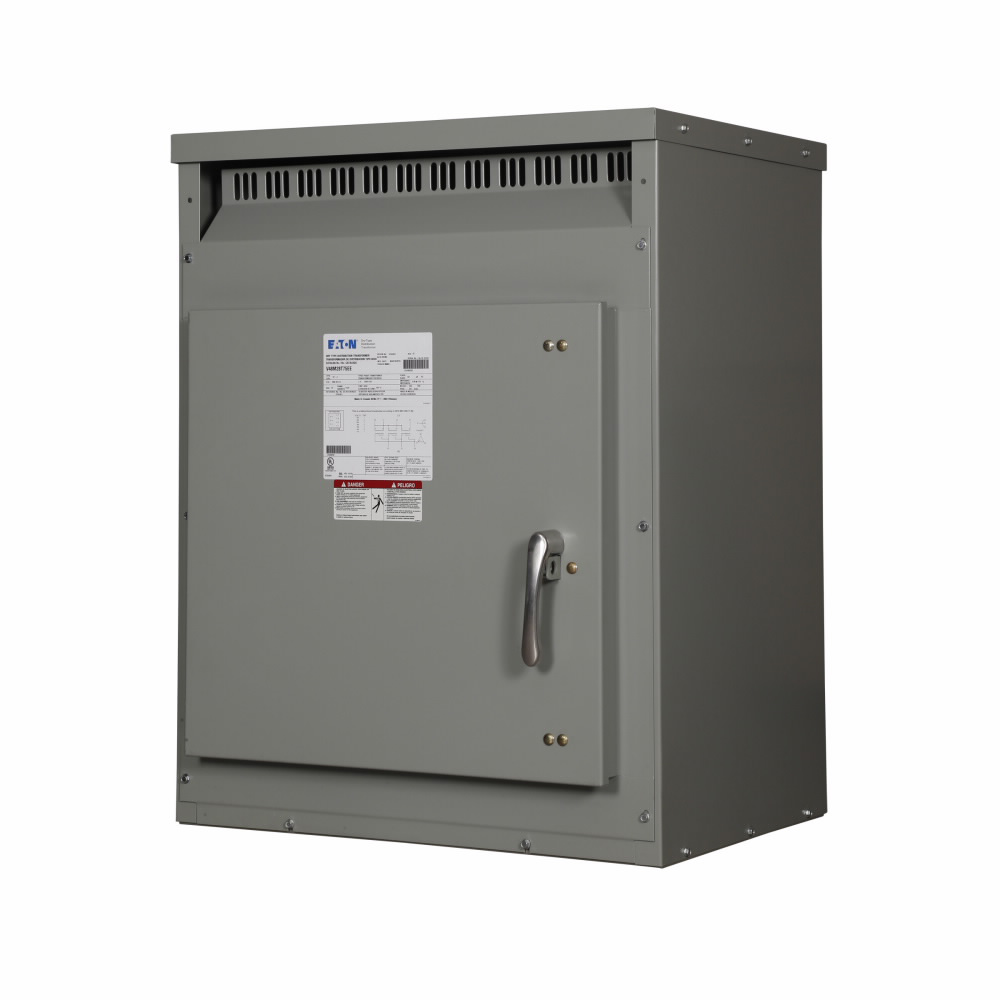

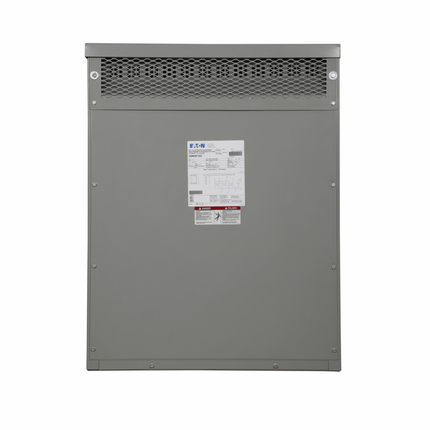

General-Purpose Transformer, Dry Type Distribution, DT-3, Three-phase, PV: 208V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 480Y/277V, 150°C, 112.5 kVA, Al windings , Frame: 916A, uses WS19

Eaton
SKU #169204Part #V29M47T12UPC 786680094729

General-Purpose Transformer, Dry Type Distribution, DT-3, Three-phase, PV: 208V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 480Y/277V, 150°C, 112.5 kVA, Al windings , Frame: 916A, uses WS19

Eaton
SKU #169204Part #V29M47T12UPC 786680094729

Product form

Out of stock, Call 1-866-853-4768 for availability and price. Most out of stock items can be ordered and are usually available to ship in 1-3 business days.

Product Substitutes

Description

Specifications

Secondary Voltage: 480Y/277 V
Design: DT-3
Type: Dry Type Distribution Transformer
Frame: 916A
Tap size: 2 at +2.5% FCAN, 4 at -2.5% FCBN
Phase: Three-phase
Weathershield: WS19
Primary voltage: 208 V
Frequency rating: 60 Hz
Coil material: Aluminum
Temperature rise: 150 °C rise
Kva Rating: 112.5 kVA

General

UPC: 786680094729
Product Length/Depth: 23.42 in
Product Height: 48.56 in
Product Width: 28.22 in
Product Weight: 772 lb
Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications: UL Listed

Downloads

Catalogs

Eatons Volume 2-Commercial Distribution

More Information

Manufacturer Catalog Number

V29M47T12

Weight

772.0000

Length

23.42

Width

28.22

Height

48.56

Frame

916A

Number Of Phases

3

Type

Distribution
