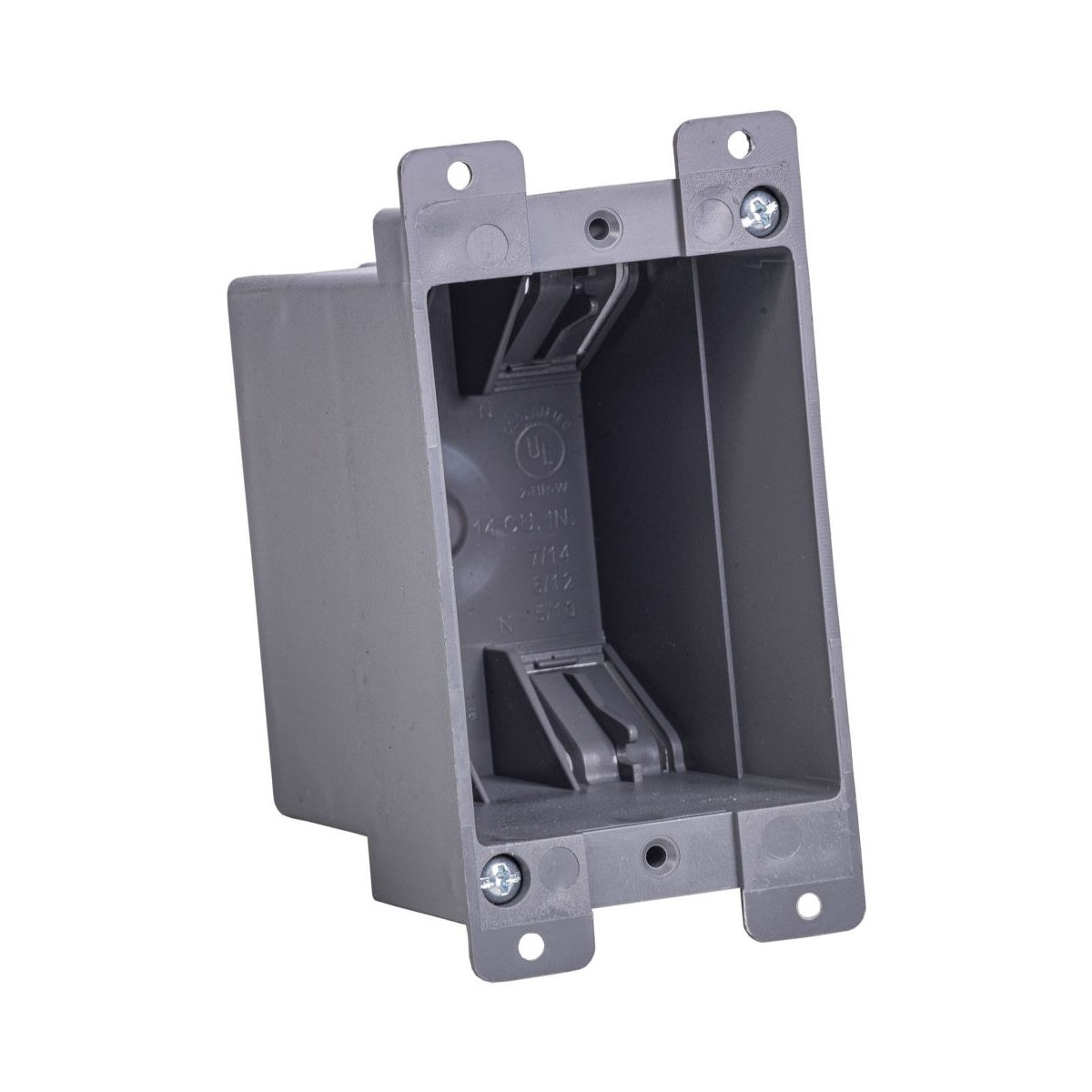

GARDNER BENDER RS14N 1-GANG 14 CUBIC INCH PVC OLD WORK STANDARD Electrical Box

The Gardner Bender RS14N is a 1-gang, 14 cubic inch non-metallic electrical box designed for old work or retrofit applications. Constructed from durable high-grade PVC, it provides reliable performance and resistance to breaking, making it suitable for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring safe and compliant wall electrical boxes. This box is UL 514C & 263 listed and UL classified for walls up to a 2-hour flame rating, meeting applicable ANSI/NEMA standards.

Specifications

• Volume: 14.0 cubic inches
• Cutout Height: 3.72 inches
• Cutout Width: 2.26 inches
• Depth: 2.80 inches
• Product Weight: 0.1900 lbs
• Manufacturer Part #: BOX-RS14N
• UPC: 032076952853

Features

• Durable high-grade PVC construction resists breaking and reduces installation costs
• Flanges and adjustable mounting tabs for convenient installation into existing walls
• Equipped with living hinges for additional cable support
• Designed and tested to comply with the latest National Electric Code requirements
• UL 514C & 263 listed for new and retrofit applications
• UL classified for walls with up to a 2-hour flame rating
