Description

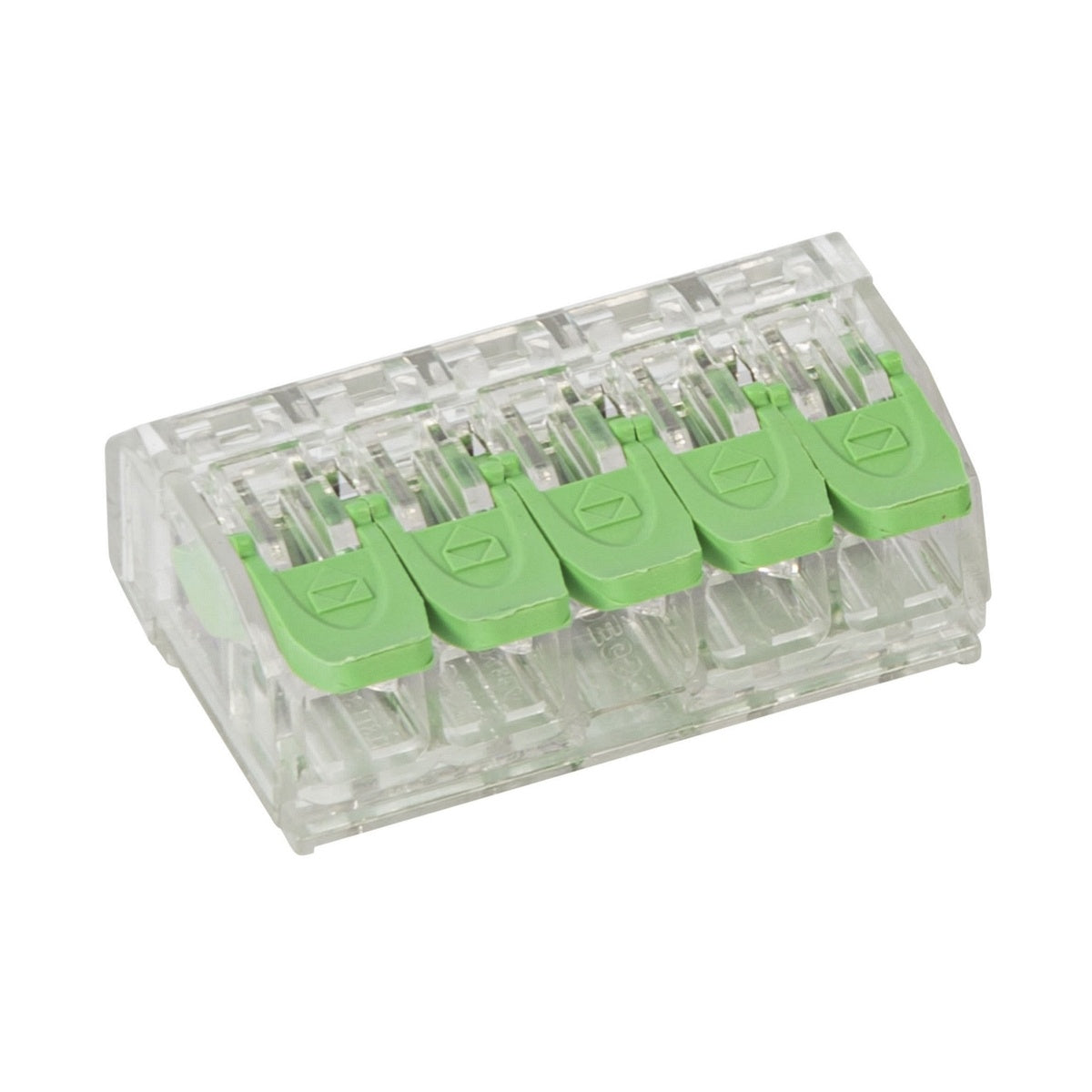

GARDNER BENDER 19-PCL5 Connector 5-Port Lever Connector for Electrical Wiring
The Gardner Bender 19-PCL5 is a lever-style wire connector designed to securely connect both stranded and solid wires ranging from 24 to 12 AWG. Ideal for electrical distributors and lighting solutions providers, this connector facilitates fast, reliable, and safe wire connections within electrical installations, wire and cable management, and switchgear applications.
Specifications
- Manufacturer Part #: 19-PCL5
- Wire Range: #24 - #12 AWG Solid/Stranded
- Number of Ports: 5
- Color: Clear/Green
- Pack Quantity: 10 per bag
- Maximum Voltage Rating: 600V
- Maximum Temperature Rating: 105°C
- Product Weight: 0.1290 lbs
- UPC: 032076938147
Features
- Strong protruding levers with anti-slip design for ease of use
- Clear body design allows visual confirmation that wires are securely connected
- Supports multiple wire size combinations within one connector
- Rated for 600V max with 105°C temperature tolerance
- Compatible with both stranded and solid wire types
