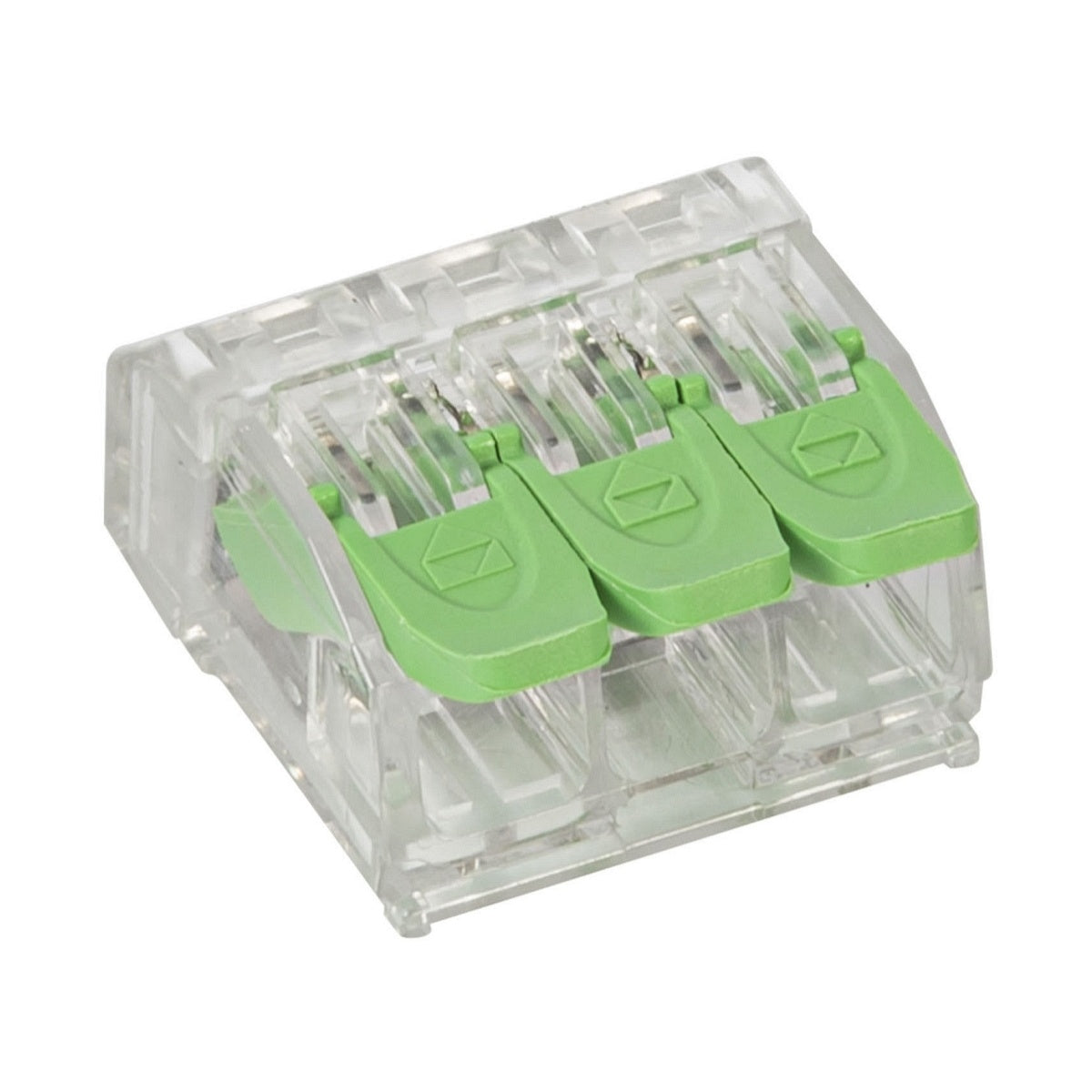

GARDNER BENDER 19-PCL3 CONNECTOR 3-PORT LEVER CONNECTOR – Wire Connector

The Gardner Bender 19-PCL3 is a 3-port lever wire connector designed for secure and reliable electrical connections. It supports solid and stranded wires ranging from 24 to 12 AWG, making it suitable for various wiring applications. This connector is ideal for electrical distributors, lighting solutions, wire and cable installations, and switchgear suppliers requiring fast, tool-free connections with clear visual confirmation of wire engagement.

Specifications

• Manufacturer Part #: 19-PCL3
• Wire Range: 24–12 AWG Solid/Stranded
• Number of Ports: 3
• Color: Clear/Green
• Pack Quantity: 10 per bag
• Maximum Voltage Rating: 600 V
• Maximum Temperature Rating: 105°C
• Product Weight: 0.0880 lbs
• UPC: 032076938130

Features

• Strong protruding levers with anti-slip design for easy use
• Clear body design allows visual verification that wire is secure and connected
• Allows multiple wire size combinations to fit in one connector
• Suitable for both stranded and solid wires
• 600 V max rated with 105°C max temperature rating
• UL Listed for safety and reliability

Downloads & Links

• Spec Sheet
