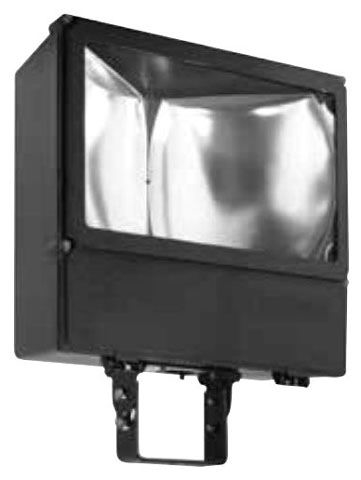

GAM775PMT, HID Floodlight Fixture - Integrally Ballasted Floodlight

The GAM775PMT HID Floodlight Fixture by Appleton is a powerful, weatherproof lighting solution designed for medium and large outdoor areas. It is suitable for general, marine, and hazardous locations classified as Class I, Division 2/Zone 2. This integrally ballasted floodlight supports high-intensity discharge lamps up to 400 watts, making it ideal for electrical distributors and lighting solutions providers serving industrial and commercial applications.

Specifications

• Manufacturer: Appleton
• Model Number: GAM775PMT
• Lamp Wattage: 400 watts
• Housing Material: Copper-Free Aluminum
• Finish: Architectural Bronze Polyester
• Mounting Type: 2 Inch O Tenon
• Product Weight: 36 lbs
• UPC: 781381902281

Features

• Corrosion-resistant, one-piece pressure-cast housing with architectural bronze polyester finish
• Compound parabolic and double segment design for optimized light distribution and efficiency
• Alzak-finished aluminum reflector enhances light output
• Rugged, enclosed, and gasketed construction suitable for severe non-hazardous and hazardous environments
• Designed for Class I, Division 2/Zone 2 hazardous locations
• Weatherproof seal and strain relief for supply cable entry
• Compatible with various lamp types including high pressure sodium, metal halide, pulse start metal halide, and mercury vapor lamps
• Mounting flexibility with trunnion, yoke, pole, wall, or clamp brackets
