Description

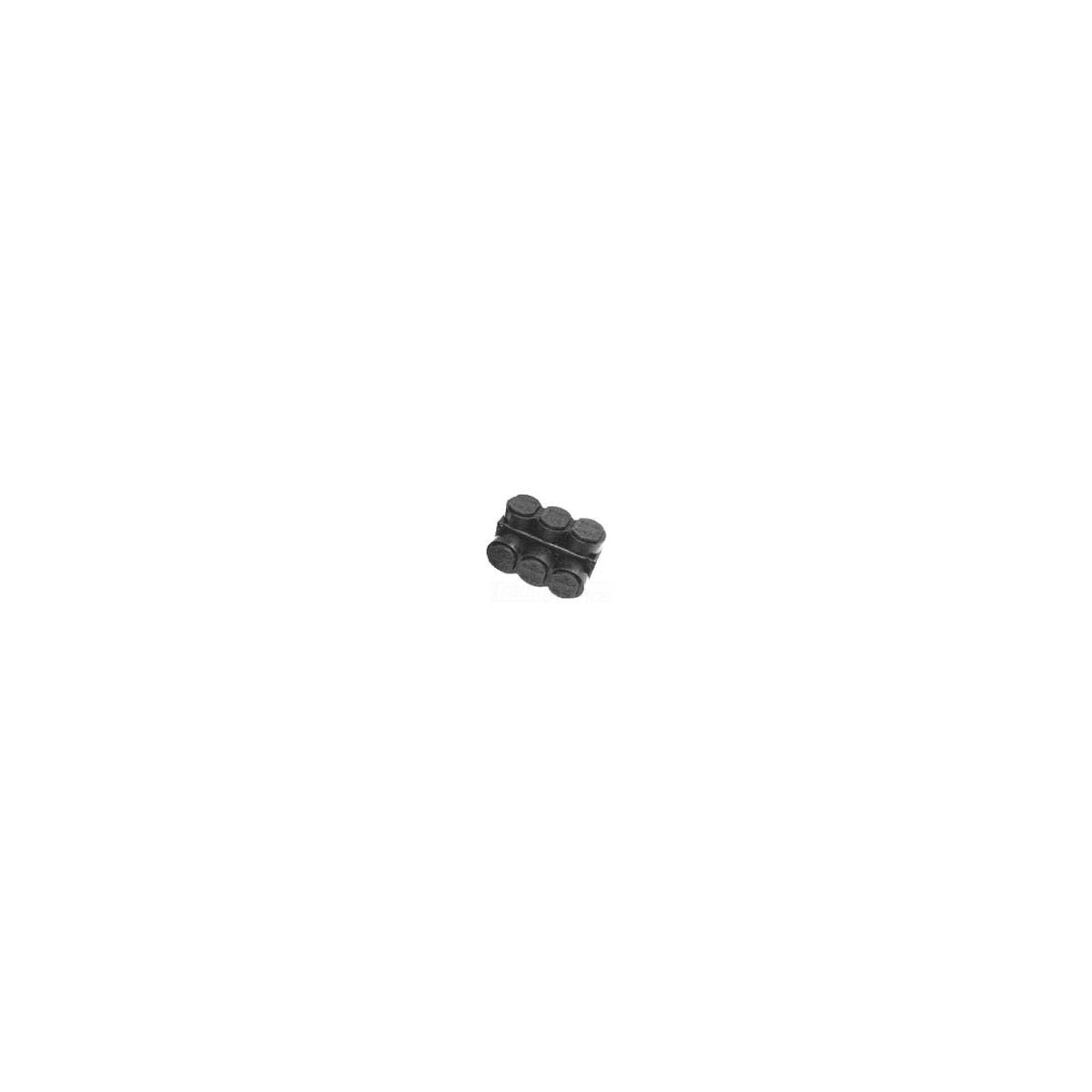

GALVAN IPL2/0-4 Multi-Tap Connector
The GALVAN IPL2/0-4 Multi-Tap Connector by Galvan Industries is a pre-insulated, UV-rated multi-tap connector designed for efficient electrical line splicing, reducers, and tap applications. Suitable for use with copper or aluminum conductors, it offers tape-free installation, reducing labor time and inventory costs. This connector is UL listed up to 600 MCM and CSA-certified to 600 volts, 900°C, making it a reliable choice for electrical distributors and switchgear suppliers requiring durable and compliant wire and cable connections.
Specifications
- Manufacturer: Galvan Industries
- Manufacturer Part #: IPL2/0-4
- Product Weight: 32.0000 lbs
- UPC: 632591614191
- Number of Ports: 4
- Conductor Range: #14-2/0 AWG
- Dimensions (L×W×H): 2.86 × 1.56 × 1.25 inches
- Hex Key Torque: 3/16 inch (120 in.-lbs.)
- Wire Strip Length: 11/16 inch
- UL Listing: Up to 600 MCM
- CSA Certification: 600 volts, 900°C
Features
- Pre-insulated with PVC-covered black Plastisol for UV resistance
- Filled with Penetrox™ oxide inhibitors for enhanced contact resistance to moisture, chemicals, and abrasion
- Solid end caps protect against contamination
- Tape-free installation saves time
- Compatible with copper and aluminum conductors
- Supports 2 to 8 taps per connector, reducing inventory size and costs
