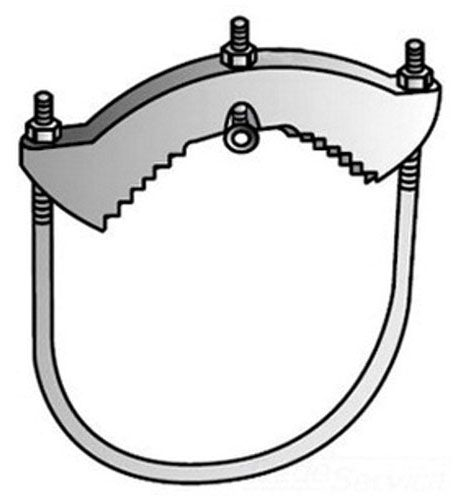

G-800G, Universal Ground Clamp
SKU: #315053
Part: #G-800G
UPC: 783126238259

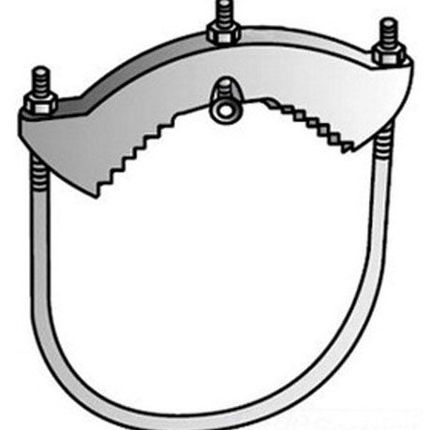

G-800G, Universal Ground Clamp
SKU: #315053
Part: #G-800G
UPC: 783126238259
Next day delivery
Description
G-800G Universal Ground Clamp for Electrical Grounding
The G-800G Universal Ground Clamp is designed for connecting grounding conductors to cold water ground pipes, ranging in sizes from 1-1/4” through 12”. This grounding clamp is suitable for use by electrical distributors and switchgear suppliers providing reliable grounding solutions in lighting and wiring installations.
Specifications
- Application: For Connecting Grounding Conductors To Cold Water Ground Pipe
- Material: Hot Dip Galvanized Malleable Iron Body
- Installation: U Bolt To Pipe
- Length: 10-5/8 IN
- Product Weight: 2.5700 lbs
- Manufacturer: O-Z Gedney
- Manufacturer Part #: G-800G
- Ground Pipe Size O.D. Range: 203.2 mm (8.00 inches) to 236.2 mm (9.30 inches)
- U-Bolt Diameter: 7.9 mm (0.31 inches)
- Height: 300.0 mm (11.81 inches) max
- Width: 270.0 mm (10.63 inches)
- UL Standard: 467
- UL Listed: E-24264
- CSA Standard: C22.2 No. 18
- CSA Certified: 009795
- Federal Specification: W-F-406E
Features
- Standard built-in ground wire connector compatible with #8 Solid through #2 Stranded AWG wire
- Hot dip galvanized malleable iron body ensures corrosion resistance and durability
- Suitable for direct burial and wet locations when used with cast bronze clamps
- Designed for secure U-bolt attachment to ground pipes
- UL and CSA certified for safety and compliance in electrical grounding applications
