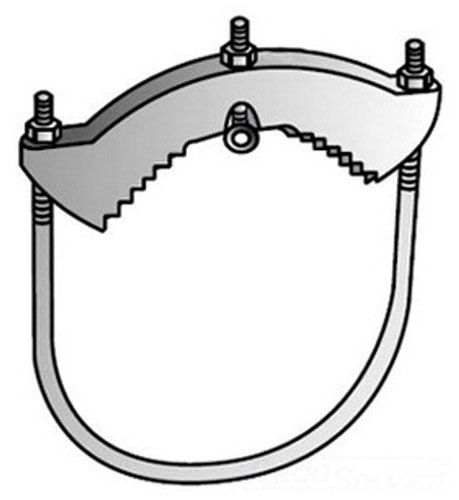

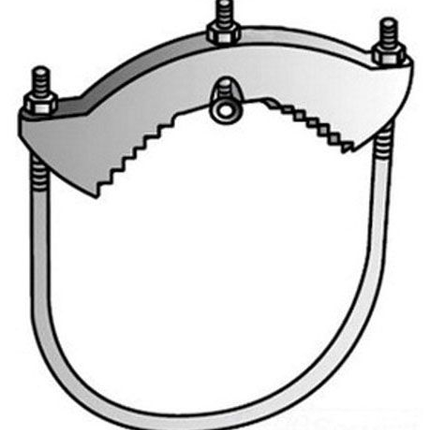

G-800B Universal Ground Clamp for Electrical Grounding

The G-800B Universal Ground Clamp by O-Z Gedney is designed for connecting grounding conductors to cold water ground pipes, making it suitable for electrical distributors and lighting solutions requiring reliable grounding connections. This clamp facilitates secure attachment of grounding wires to cold water pipes ranging from 1-1/4” to 12” in size, supporting safe and compliant grounding in electrical systems.

Specifications

• Application: For Connecting Grounding Conductors To Cold Water Ground Pipe
• Material: Cast Bronze Body
• Installation: U Bolt To Pipe
• Length: 10-5/8 IN
• Product Weight: 3.13 lbs
• Manufacturer: O-Z Gedney
• Manufacturer Part #: G-800B

Features

• Standard built-in ground wire connector accommodates #8 Solid through #2 Stranded AWG wire
• Cast bronze construction suitable for direct burial and wet locations
• Designed for secure grounding connection to cold water pipes with U-bolt installation
• UL Listed to Standard 467 and CSA Certified ensuring compliance with electrical safety standards
