FZS400QT Flood Light by RAB – High Performance HID Lighting Solution

The FZS400QT is a robust 400-watt HID flood light designed for outdoor electrical distribution and lighting solutions. It delivers 50,000 lumens with an efficacy of 107 lumens per watt, making it suitable for ground mounting in wet locations. This fixture is ideal for applications requiring high-intensity illumination with precise beam control, supplied by a reputable switchgear supplier and electrical distributor.

Specifications

• Manufacturer: RAB
• Model Number: FZS400QT
• Input Wattage: 464 watts
• Lumens: 50,000 lumens
• Efficacy: 107 lumens per watt
• Lens Material: Tempered Shock Resistant Glass
• Weight: 29.4 lbs
• Housing: Precision die-cast aluminum
• Reflector: High quality anodized aluminum
• Lens Gasket: Molded one-piece silicone in die cast retaining groove
• Electrical Socket: Glazed porcelain 4kv pulse rated with nickel plated screw shell and spring contacts
• Voltage Compatibility: 120V, 208V, 240V, 277V (quad tap)
• UL Listed: Suitable for wet locations and ground mounting
• EPA (Effective Projected Area): 1.3

Features

• Optional glare hood, wire guard, or polycarbonate shield available
• Reflector designed for precise beam control
• Stainless steel screws included for durability
• Long life lamp included, rated for 24,000 hours
• Supplied with 3 feet of STW cord for convenient installation

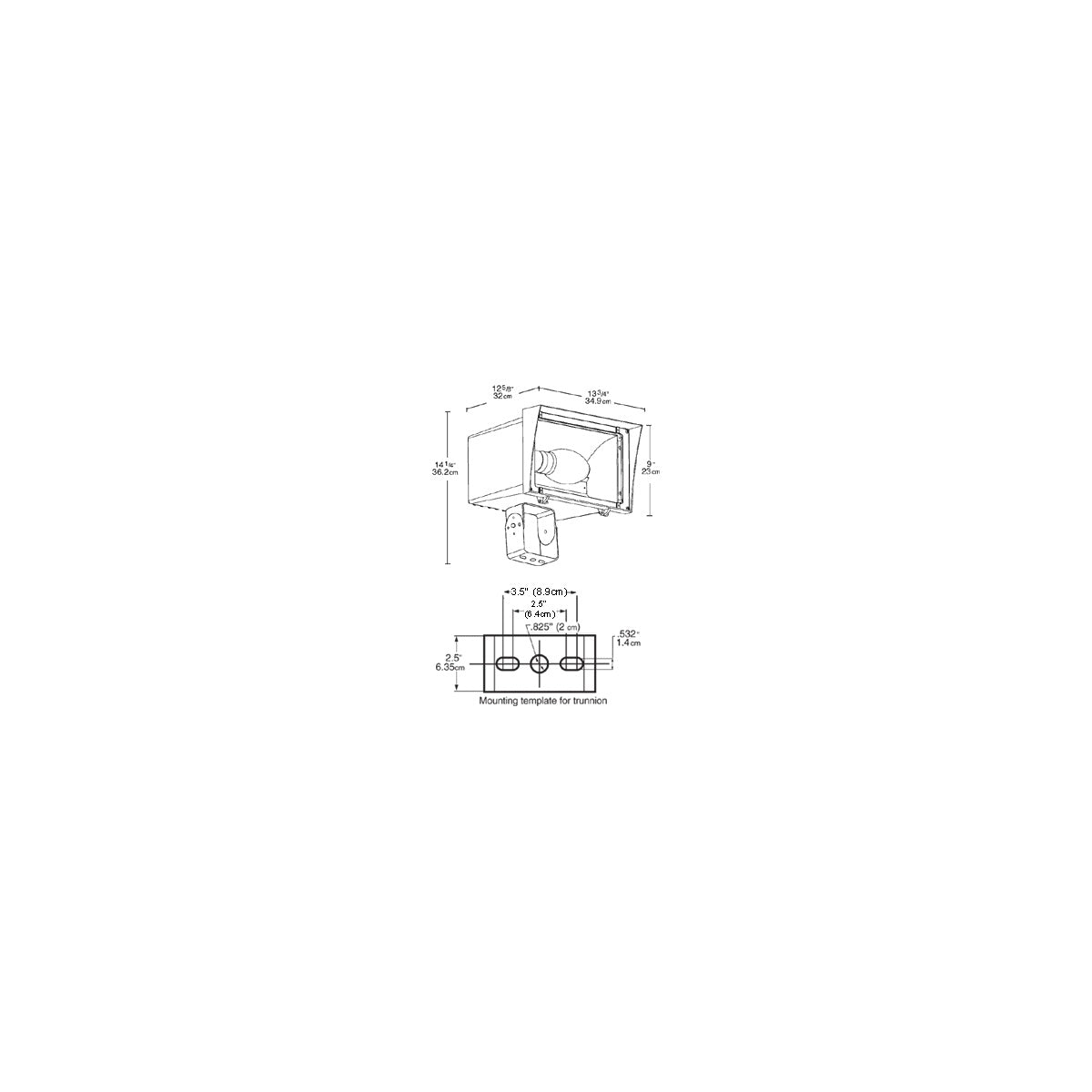

• Rugged trunnion or slipfitter mounting options for flexible installation
• New 2" Integra hood reduces light trespass and glare

Downloads & Links

• Instructions
• Spec Sheet
