FZH200PSQ Floodlight by RAB – High-Performance HID Lighting Solution

The FZH200PSQ is a robust 200-watt pulse start metal halide floodlight designed for outdoor lighting applications requiring reliable, high-intensity illumination. Manufactured by RAB, this fixture is suitable for ground mounting and wet locations, making it ideal for commercial and industrial electrical distributors, lighting solutions providers, and switchgear suppliers seeking durable wire and cable-compatible floodlighting options.

Specifications

• Manufacturer: RAB
• Input Wattage: 222 watts
• Lumens: 21,000 lumens
• Efficacy: 94 lumens per watt
• Lens Material: Tempered shock resistant glass
• Housing: Precision die-cast aluminum
• Reflector: High quality anodized aluminum
• Lens Gasket: Molded one-piece silicone in die cast retaining groove
• Socket: Glazed porcelain 4kv pulse rated with nickel plated screw shell and spring contacts
• Ballast Voltage: 480 V
• Starting/Operating Amps: 0.4 / 0.63 A
• Color: Bronze
• Weight: 30.0 lbs
• Compliance: UL Listed, suitable for wet locations and ground mounting
• Ballast Type: CWA-HPF QT
• Lamp Type: Pulse Start Metal Halide T15, 200W
• Expected Lamp Life: 15,000 hours
• EPA (Effective Projected Area): 1.3

Features

• Optional glare hood, wire guard, or polycarbonate shield available
• Reflector designed for precise beam control
• Stainless steel screws included for durability
• Long life lamp included for reduced maintenance
• Supplied with 3 feet of STW cord for easy wiring

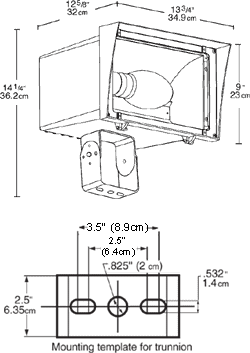

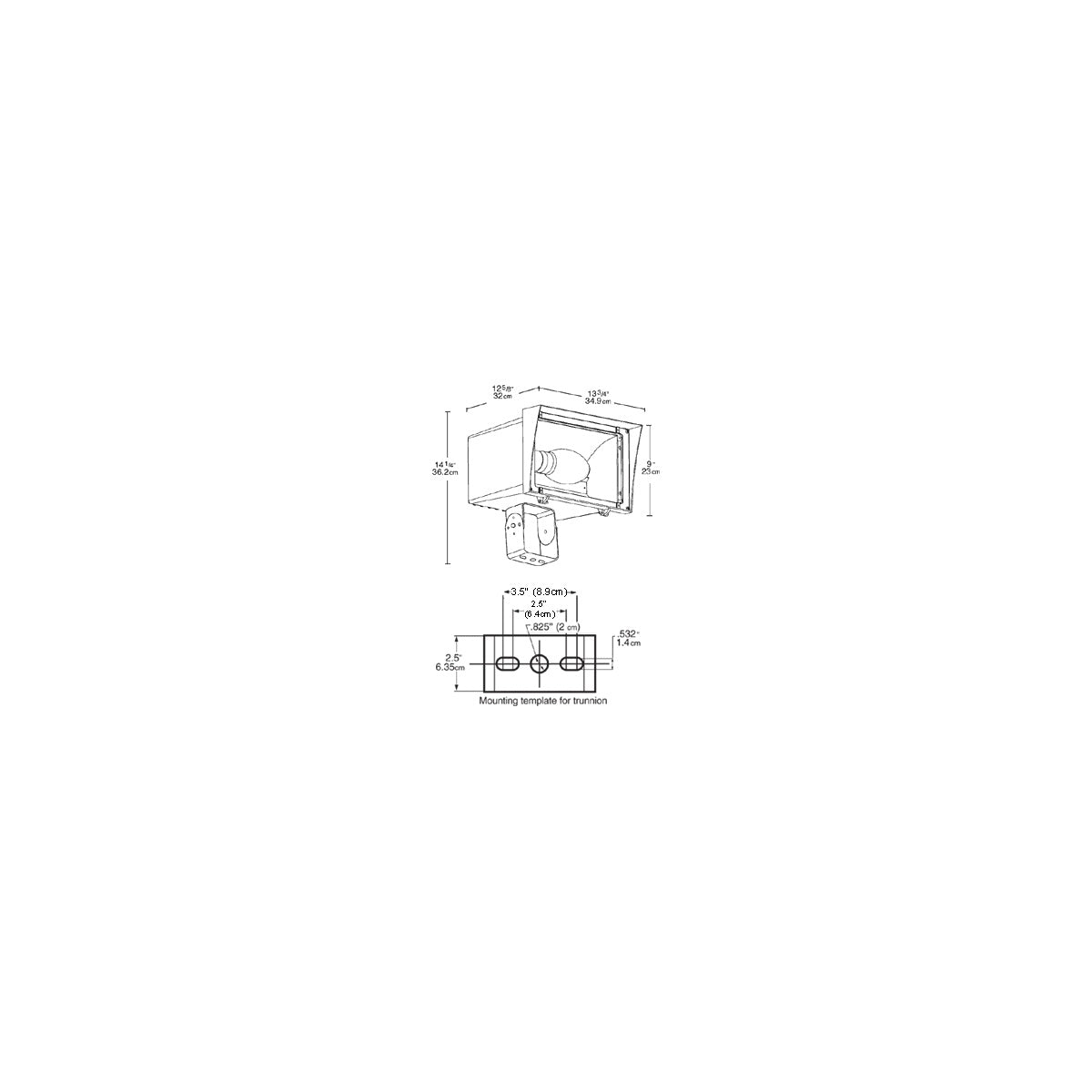

• Rugged trunnion or slipfitter mounting options for versatile installation
• New 2-inch Integra hood to reduce light trespass and glare
• Lens gasket designed to remain in place during relamping
• Pulse start technology enhances lamp life, lumen maintenance, color uniformity, and efficiency

Downloads & Links

• Instructions
• Spec Sheet
