Features

• Eliminates external sealing requirements.
• Lower installation cost.
• NEMA 3 weatherproof.
• Color coded wiring with more wiring space for easier field installation.
• Stainless steel captive screws for cover assembly.
• Lockout accessory available must be factory installed.
• Ground boss for grounding in the splicebox.
• Device bodies and covers are copper-free cast aluminum alloy.
• Push button, selector switches and pilot light bodies are copper-free aluminum.
• Operating shaft in both push buttons and selector switches are stainless steel.

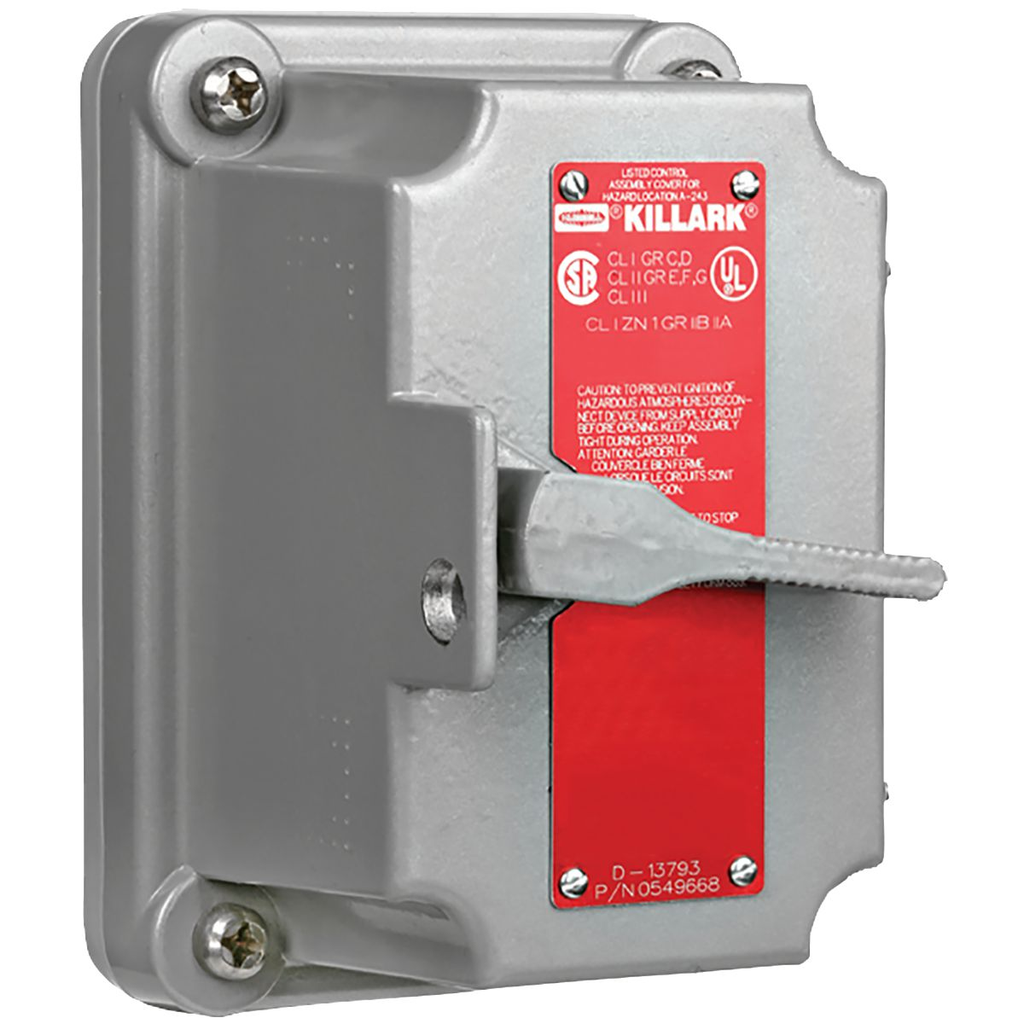

• Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.

Specifications

• Country of Origin: United States
• Back Box Type: FXB
• Buy American Compliant: Contact Manufacturer
• Depth: 3.15
• Dimensions: 6.63 in x 6 in x 4.38 in
• Width: 6.000 in
• Each - Width: 6.000 in
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
• Height: 4.38 in
• Length: 6.63 in
• Action: SP
• Actuator: Lever
• Amperage Rating: 20 A
• Application: FXS tumbler switches are suitable for applications where making, breaking, or changing connections in an electrical circuit is required and where conditions of load do not exceed the switch ratings.
• Color: Gray
• Number of Poles: 1
• Size: 6.63 in x 6 in x 4.38 in
• Special Features: Killark SEAL-X Series Factory Sealed Tumbler Switch Controls provide solutions in hazardous location areas to supply; START/STOP Motor Functions and Light Switching. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.
• Type: Factory Sealed
• Ambient Temp. Range: UL: -25 to 40 ºC, CSA: -50 to 40 ºC, IEC: -20 to 40 °C
• Frequency Rating: 50/60 Hz
• Nema Rating: 3
• Number Of Poles: 1
• ARRA Compliant: Contact Manufacturer
• Class Code: D25
• Description - Invoice: TUMBL SWITCH W/ CVR 1P 20A
• Freight Class Code: 06316009
• Harmonization Code: 8536509040
• Image Actual Or Representative: R
• Lead Time: 15 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Returnable Indicator: Yes
• Sub Class Code: D25D250
• CSA File Number: LR11712
• Gross Weight with Packaging: 2.96
• UL File Number: E53360, E10501
• Series: FXS
• Base Unit of Measure: EA
• BOX SIZE: 4.750x6.500x6.125 (in)
• Carton - Gross Weight per Pack: 14.800 lb.
• Carton - Number of Sub Packs: 5
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00783936194738
• Carton - Total Units: 5 EA
• Master Pack Description: Each

Certifications

• EU RoHS Indicator: Contact Manufacturer
