FXLED78TW LED Flood Light

The FXLED78TW is a high-performance LED flood light designed for commercial and industrial lighting applications. Manufactured by RAB, this fixture delivers efficient, reliable illumination with a color temperature of 5100K, suitable for outdoor and wet locations. It is optimized for electrical distributors and lighting solutions providers seeking durable, energy-saving fixtures with advanced features such as tempered glass lens protection and robust die-cast aluminum housing. The product is ideal for use in environments requiring long-lasting, high-efficacy lighting such as security, site, and area lighting.

Specifications

• Lumens: 9,989 lumens
• Efficacy: 127 lumens per watt
• Input Wattage: 79 watts
• Color Temperature: 5100 kelvins
• Color Accuracy: 75 CRI
• Lens Material: Tempered Glass
• Product Weight: 22.7 lbs
• Ambient Temperature Range: -40°C to 40°C (-40°F to 104°F)

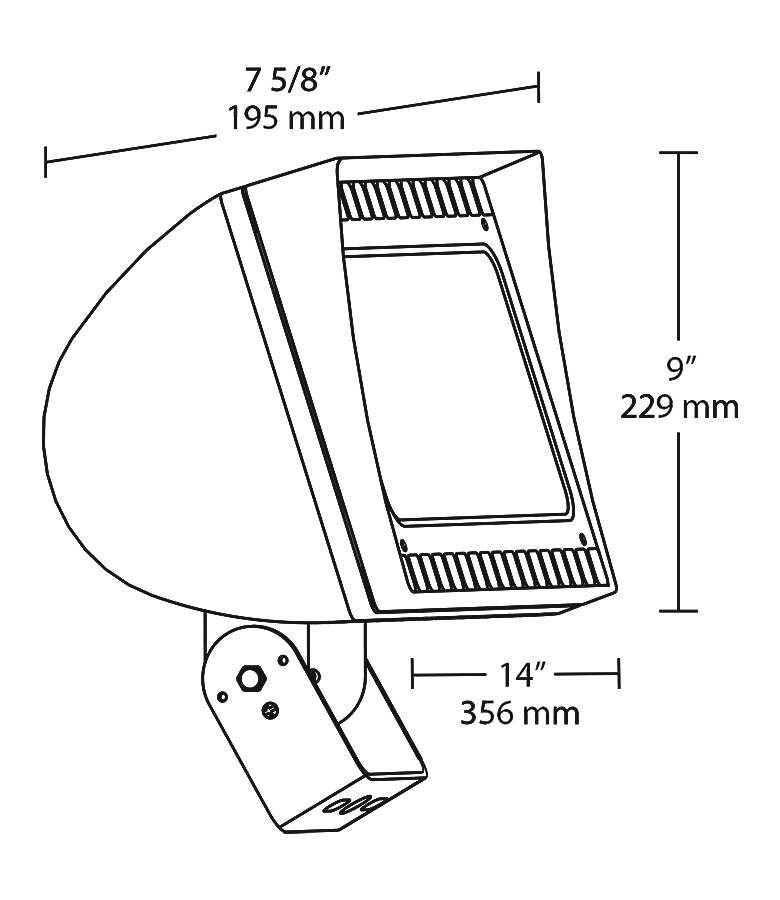

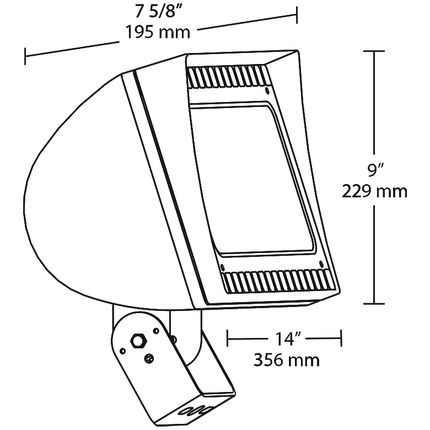

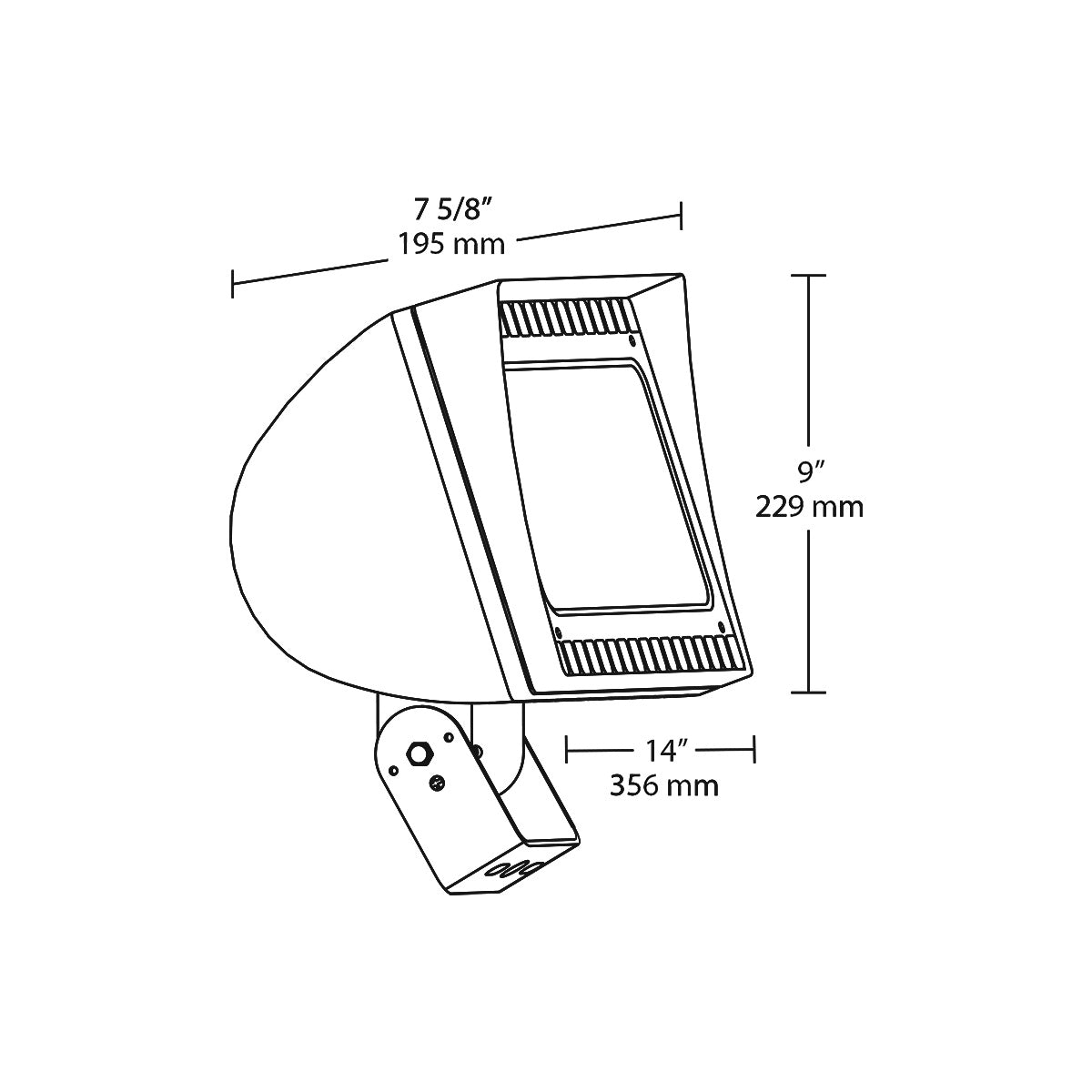

• Dimensions: 7 5/8" (195 mm) width, 9" (229 mm) height, 14" (356 mm) depth
• IP Rating: IP66 for dust and water protection
• Mounting: Heavy-duty Trunnion mount with stainless steel hardware
• Housing: Die-cast aluminum housing and door frame
• Driver Type: Constant Current, Class 2, 120-277V, 50/60 Hz
• Lifespan: 100,000 hours (L70)

Features

• 66% energy cost savings compared to HID lighting
• NEMA Type 6H x 6V optical distribution
• “Air-Flow” technology for enhanced heat dissipation
• Long-life, high-efficacy surface-mount LEDs
• Color temperature stability with a maximum shift of 200K over 5 years
• 5-Year, no-compromise warranty covering light output, color stability, driver performance, and fixture finish
• DLC Listed as an ultra-efficient premium product qualifying for highest tier rebates
• Suitable for mounting within 1.2 meters (4 feet) of the ground
• Formulated finish for high durability and long-lasting color
• Buy American Act compliance available upon request
