FXLED78TN LED Flood Light

The FXLED78TN by RAB is a high-performance LED flood light designed for commercial and industrial lighting applications. It provides efficient, long-lasting illumination suitable for outdoor environments, making it an ideal choice for electrical distributors and lighting solutions providers. This fixture is engineered to replace 250W metal halide lights while delivering superior energy savings and durability.

Specifications

• Manufacturer: RAB
• Input Wattage: 79 watts
• Lumens: 10,195 lumens
• Efficacy: 129 lumens per watt
• Color Temperature: 4000 kelvins (Neutral)
• Color Accuracy: 74 CRI
• Lens Material: Tempered Glass
• Ambient Temperature Range: -40°C to 40°C (-40°F to 104°F)
• Product Weight: 22.7 lbs
• IP Rating: IP66 (dust and water resistant)
• Mounting: Heavy-duty Trunnion mount with stainless steel hardware
• Housing: Die-cast aluminum housing and door frame

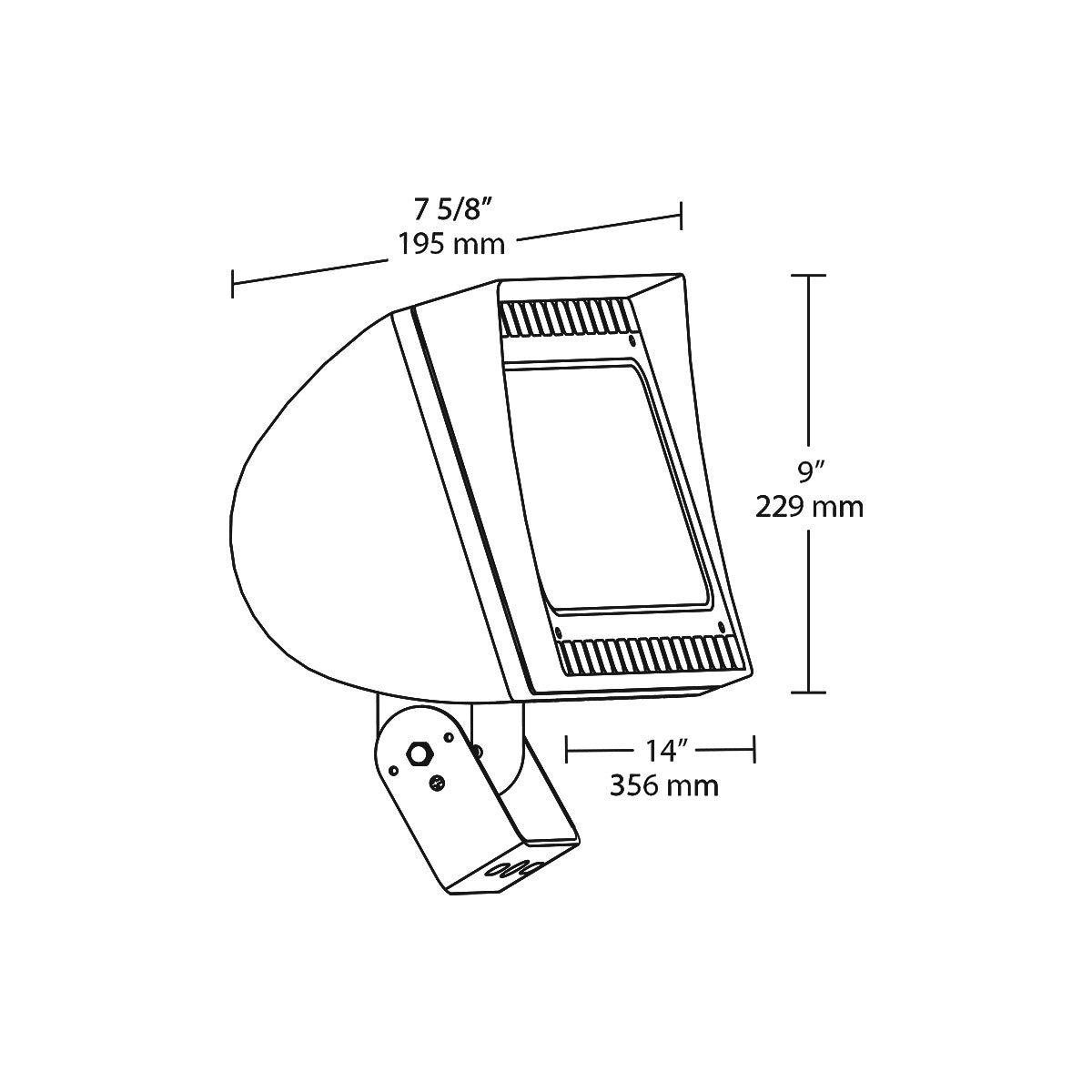

• Dimensions: 7 5/8" (195 mm) width, 9" (229 mm) height, 14" (356 mm) depth
• Equivalent to 250W Metal Halide
• Driver Type: Constant Current, Class 2, 120-277V, 50/60 Hz
• Lifespan: 100,000 hours (based on IES LM-80 and TM-21 calculations)

Features

• 66% energy cost savings compared to HID lighting
• NEMA Type 6H x 6V optical distribution
• "Air-Flow" technology for enhanced heat dissipation
• Long-life, high-efficacy surface-mount LEDs
• Color temperature stability with less than 200K shift over 5 years
• Formulated finish for high durability and long-lasting color
• Suitable for wet locations and mounting within 4 feet of the ground
• 5-year no-compromise warranty covering light output, color stability, driver performance, and fixture finish
