FXLED78SFY LED Flood Light

The FXLED78SFY by RAB is a high-performance LED flood light designed for architectural and outdoor lighting applications. It delivers efficient illumination with 9,844 lumens output at 78 watts input wattage, making it suitable for lighting solutions that require energy efficiency and durability. This product is ideal for electrical distributors and switchgear suppliers looking to offer reliable outdoor lighting fixtures with robust performance and quality materials.

Specifications

• Manufacturer: RAB
• Model Number: FXLED78SFY
• Input Wattage: 78 watts
• Lumens: 9,844 lumens
• Efficacy: 125 lumens per watt
• Color Temperature: 3000 kelvins
• Color Accuracy (CRI): 71
• Lens Material: Tempered Glass
• Operating Ambient Temperature: Down to -40°C
• Product Weight: 21.6 lbs

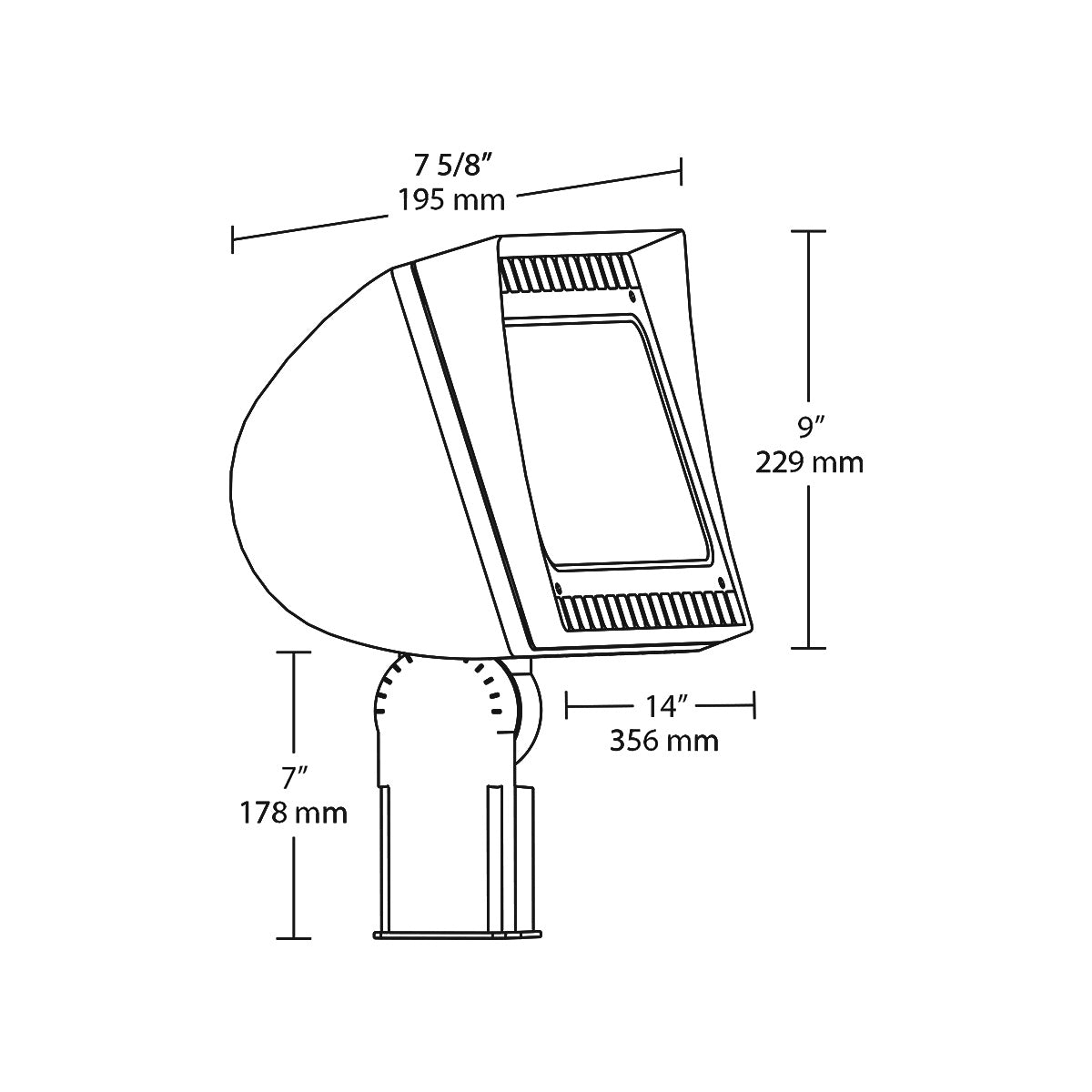

• Dimensions: 14" length x 9" height x 7 5/8" width (356 mm x 229 mm x 195 mm)
• Voltage Range: 120V to 277V, 50/60 Hz
• Power Factor: 0.999 (120V), 0.950 (277V)
• Total Harmonic Distortion (THD): 4.11% (120V), 6.30% (277V)
• Beam Angle (50%): Horizontal 91.6°, Vertical 70.1°
• Field Angle (10%): Horizontal 120.5°, Vertical 104.6°

Features

• High luminous efficacy with 125 lumens per watt for energy-efficient lighting
• Durable tempered glass lens for enhanced protection and longevity
• Wide operating temperature range down to -40°C for outdoor environments
• Universal voltage driver compatible with 120-277V power supplies
• Low total harmonic distortion and high power factor for electrical efficiency
• Slipfitter and trunnion mounting options for flexible installation
• Available wire guard and poly shield accessories for added protection

Downloads & Links

• LM79
• Instructions
• Spec Sheet
