FXLED78SFN LED Flood Light

The FXLED78SFN by RAB is a high-performance LED flood light designed for outdoor architectural lighting applications. This fixture delivers efficient and reliable illumination suitable for electrical distributors and lighting solution providers seeking energy-efficient flood lighting. Its robust construction and tempered glass lens make it ideal for demanding environments, while its compatibility with universal voltage input supports versatile installation scenarios.

Specifications

• Manufacturer: RAB
• Model Number: FXLED78SFN
• Lumens: 10,195 lumens
• Efficacy: 129 lumens per watt
• Input Wattage: 79 watts
• Color Temperature: 4000 kelvins
• Color Accuracy (CRI): 74
• Lens Material: Tempered Glass
• Ambient Temperature Rating: -40 degrees Celsius
• Product Weight: 21.6 lbs
• UPC: 019813031590

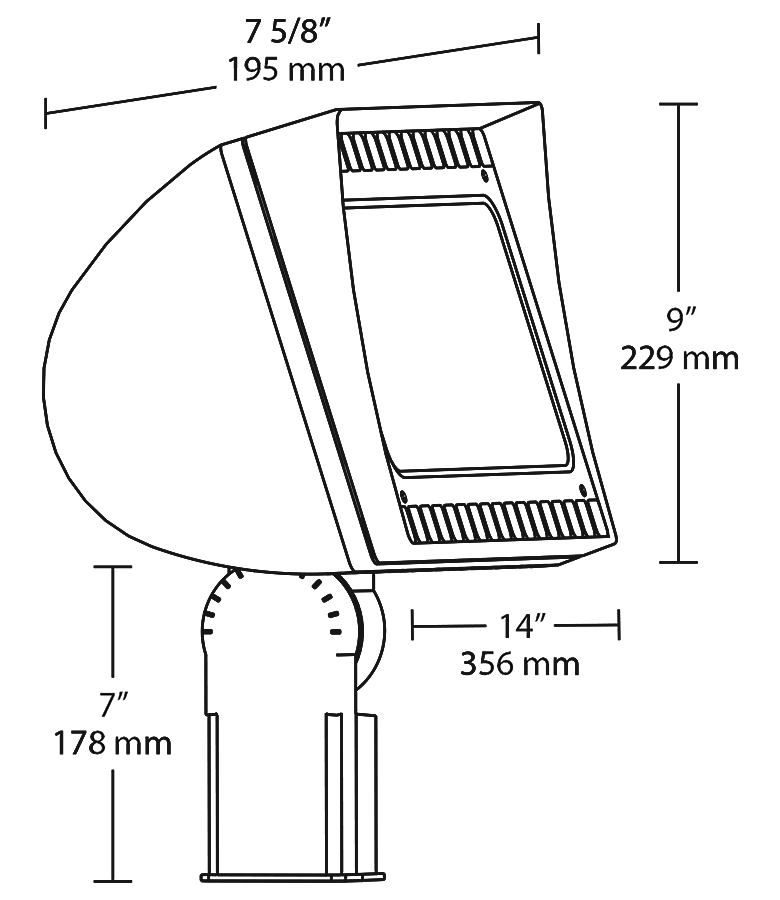

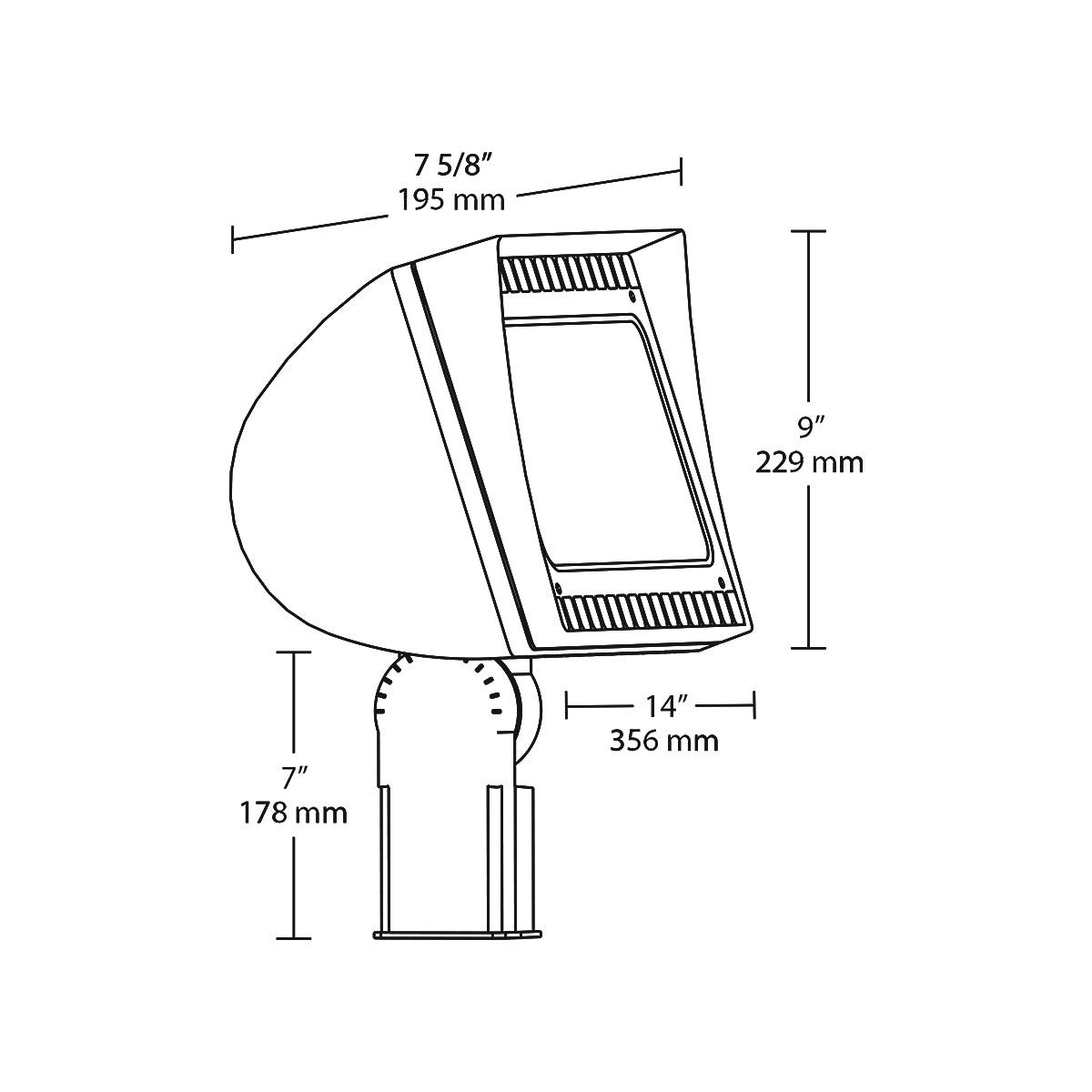

• Dimensions: 7 5/8" (195 mm) width, 9" (229 mm) height, 14" (356 mm) length, 7" (178 mm) slipfitter height

Features

• High luminous output with 10,195 lumens for effective area lighting
• Energy-efficient operation at 79 watts with 129 lumens per watt efficacy
• Durable tempered glass lens for protection and longevity
• Suitable for harsh environments with an ambient temperature rating down to -40°C
• Universal voltage driver compatible with 120V through 277V, 50/60 Hz power supplies
• Designed for easy installation with slipfitter and trunnion mounting options
• Color rendering index of 74 ensures good color accuracy for outdoor applications
