Description
FXLED200T/PCT LED Floodlight – High Efficiency Outdoor Lighting
The FXLED200T/PCT by RAB is an ultra high output, high efficiency LED floodlight designed for general and security lighting applications including large areas, building façades, signs, and landscapes. This fixture features advanced "Air-Flow" technology for superior thermal management, ensuring long LED and driver lifespan. It is suitable for wet locations and ground mounting, making it an ideal choice for electrical distributors and lighting solutions providers looking for reliable outdoor LED lighting products.
Specifications
- Manufacturer: RAB
- Input Wattage: 210 watts
- Lumens: 31,951 lumens
- Efficacy: 152 lumens per watt
- Color Temperature: 5000 kelvins (Cool)
- Color Accuracy: 72 CRI
- Lens Material: Tempered Glass
- Ambient Temperature Rating: 104 degrees Fahrenheit (40°C)
- Minimum Starting Temperature: -40 degrees Celsius (-40°F)
- Product Weight: 72.1 lbs
- IP Rating: IP66 for dust and water protection

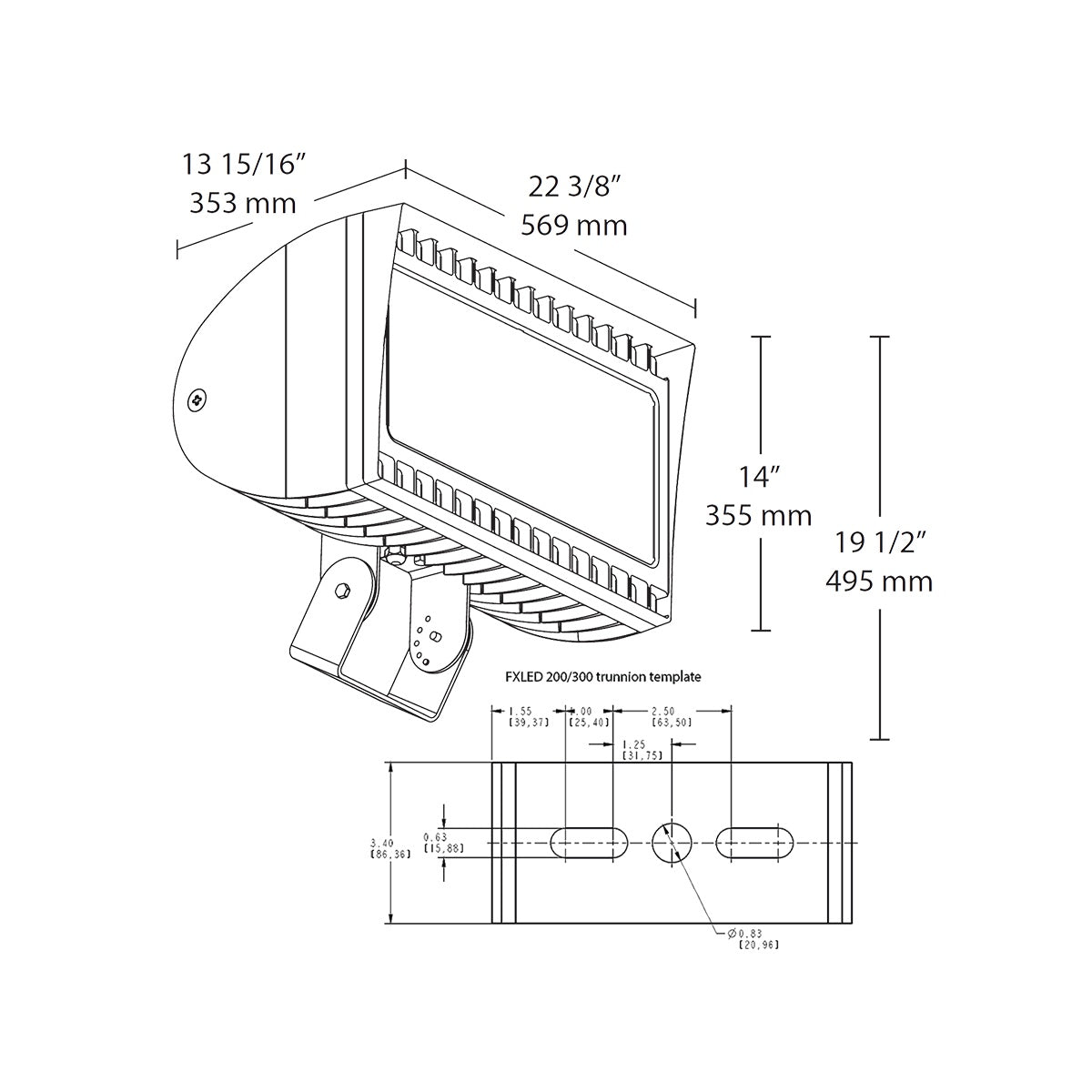

- Mounting: Heavy-duty Trunnion mount with stainless steel hardware
- Housing: Die-cast aluminum housing and door frame
- Reflector: Specular and semi-specular vacuum-metalized polycarbonate
- Driver Type: Constant Current, 700mA, 120-277V, 50/60 Hz with 4 kV surge protection
- Lifespan: 100,000 hours based on IES LM-80 and TM-21 calculations
- Equivalency: Replaces 1000W Metal Halide
- Compliance: UL Listed, DLC Listed, RoHS-compliant, suitable for wet locations
Features
- Patent-pending "Air-Flow" technology for enhanced thermal management
- High-temperature silicone gaskets for durability
- 7-step MacAdam Ellipse binning for consistent color uniformity
- Color temperature shift warranted to be less than 200K over 5 years
- Included 120-277V Twistlock photocell for versatile control
- Mercury and UV free, environmentally friendly design
- Superior power factor of 99% and low total harmonic distortion (THD)
- Heavy-duty construction with weather-resistant finish
- 5-year warranty covering light output, color stability, driver performance, and fixture finish
