FXLED150T/PCT LED Flood Light

The FXLED150T/PCT by RAB is a high-performance LED flood light designed for outdoor architectural and security lighting applications. It delivers efficient, high-lumen output suitable for electrical distributors and lighting solution providers requiring reliable, energy-saving illumination. This fixture is ideal for use in wire and cable installations and by switchgear suppliers needing durable, high-output lighting.

Specifications

• Manufacturer: RAB
• Model Number: FXLED150T/PCT
• Lumens: 20,686 lumens
• Efficacy: 126 lumens per watt
• Input Wattage: 164 watts
• Color Temperature: 5000 kelvins
• Color Accuracy (CRI): 72
• Lens Material: Tempered Glass
• Ambient Temperature Rating: -40 degrees Celsius
• Product Weight: 22.8 lbs

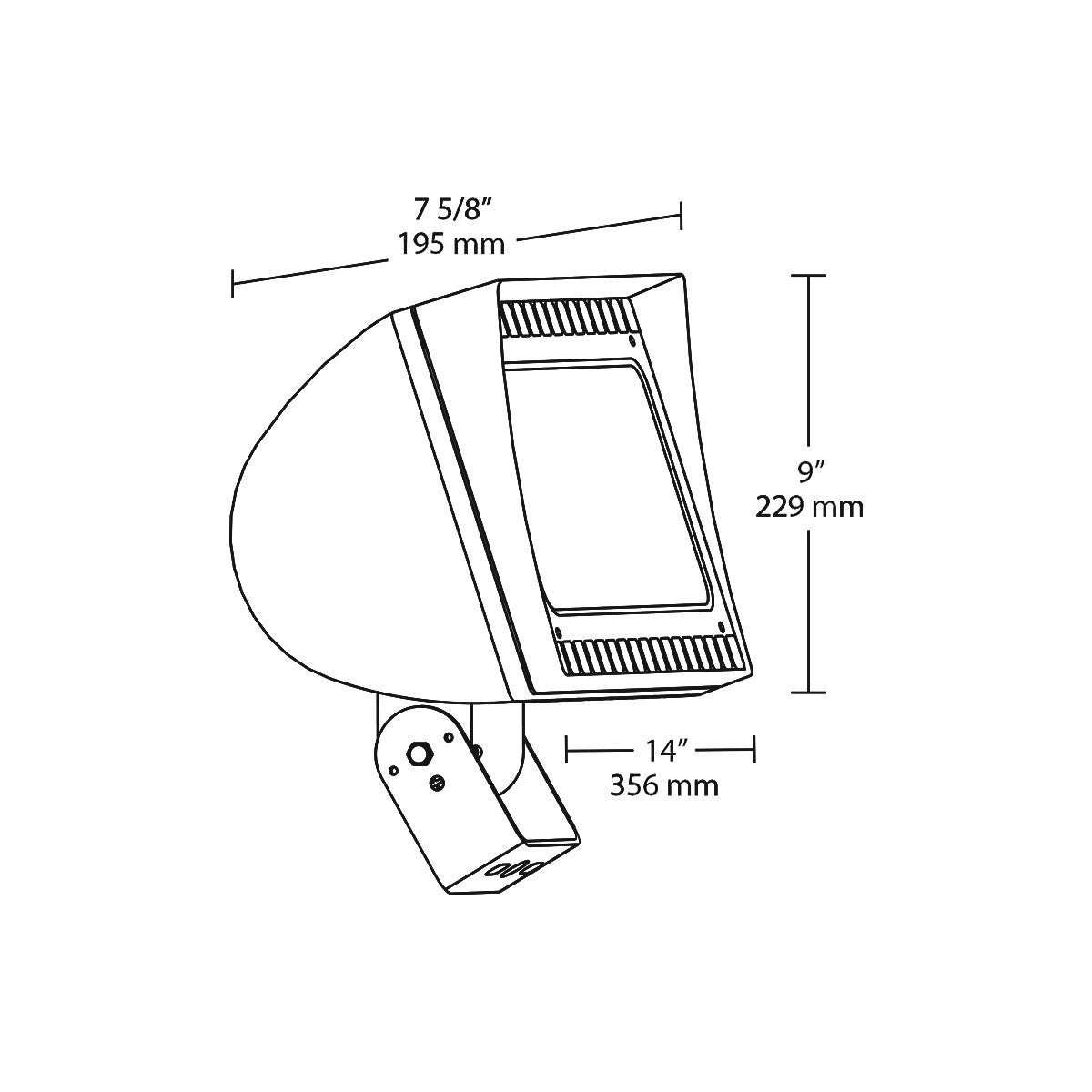

• Dimensions: 7 5/8" (195 mm) width x 9" (229 mm) height x 14" (356 mm) length

Features

• High lumen output with 20,686 lumens for bright, efficient lighting
• Energy-efficient LED technology with 126 lumens per watt efficacy
• Durable tempered glass lens for enhanced protection and longevity
• Suitable for harsh environments with ambient temperature rating down to -40°C
• Accurate color rendering with a CRI of 72 for natural light quality
• Compact and robust design with adjustable mounting options (Slipfitter and Trunnion)
• Compatible with 120V to 277V electrical systems for versatile installation

Downloads & Links

• Instructions
• LM79
• Spec Sheet
