FXLED150T LED Flood Light

The FXLED150T by RAB is a high-performance LED flood light designed for outdoor and industrial lighting applications. It offers efficient, long-lasting illumination suitable for electrical distributors and lighting solutions providers requiring durable, energy-saving fixtures. This model delivers bright, cool white light with excellent color accuracy, making it ideal for commercial and security lighting where reliable, high-output lighting is essential.

Specifications

• Manufacturer: RAB
• Model Number: FXLED150T
• Input Wattage: 164 watts
• Lumens: 20,686 lumens
• Efficacy: 126 lumens per watt
• Color Temperature: 5000 kelvins (Cool White)
• Color Accuracy: 72 CRI
• Lens Material: Tempered Glass
• Ambient Temperature Range: -40°C to 40°C (-40°F to 104°F)
• Weight: 22.9 lbs

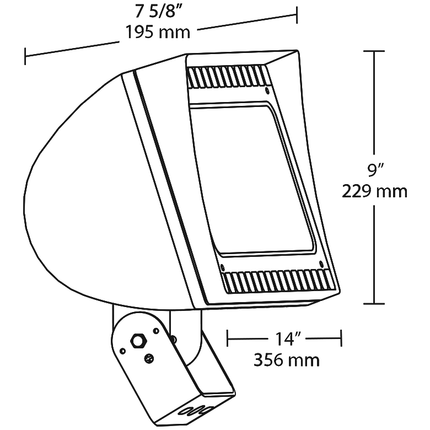

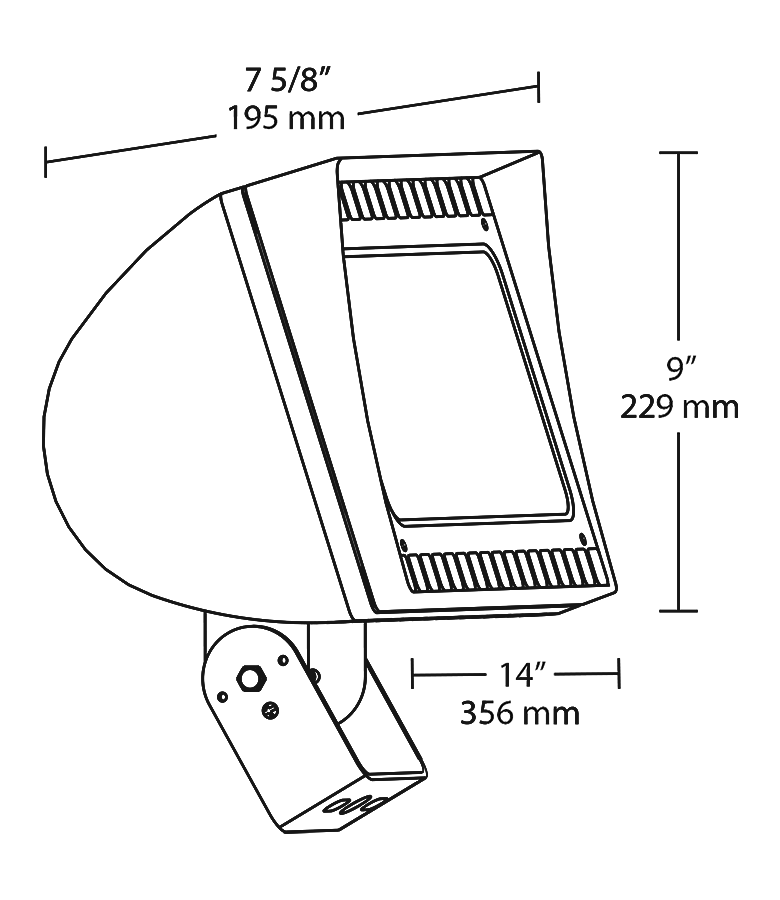

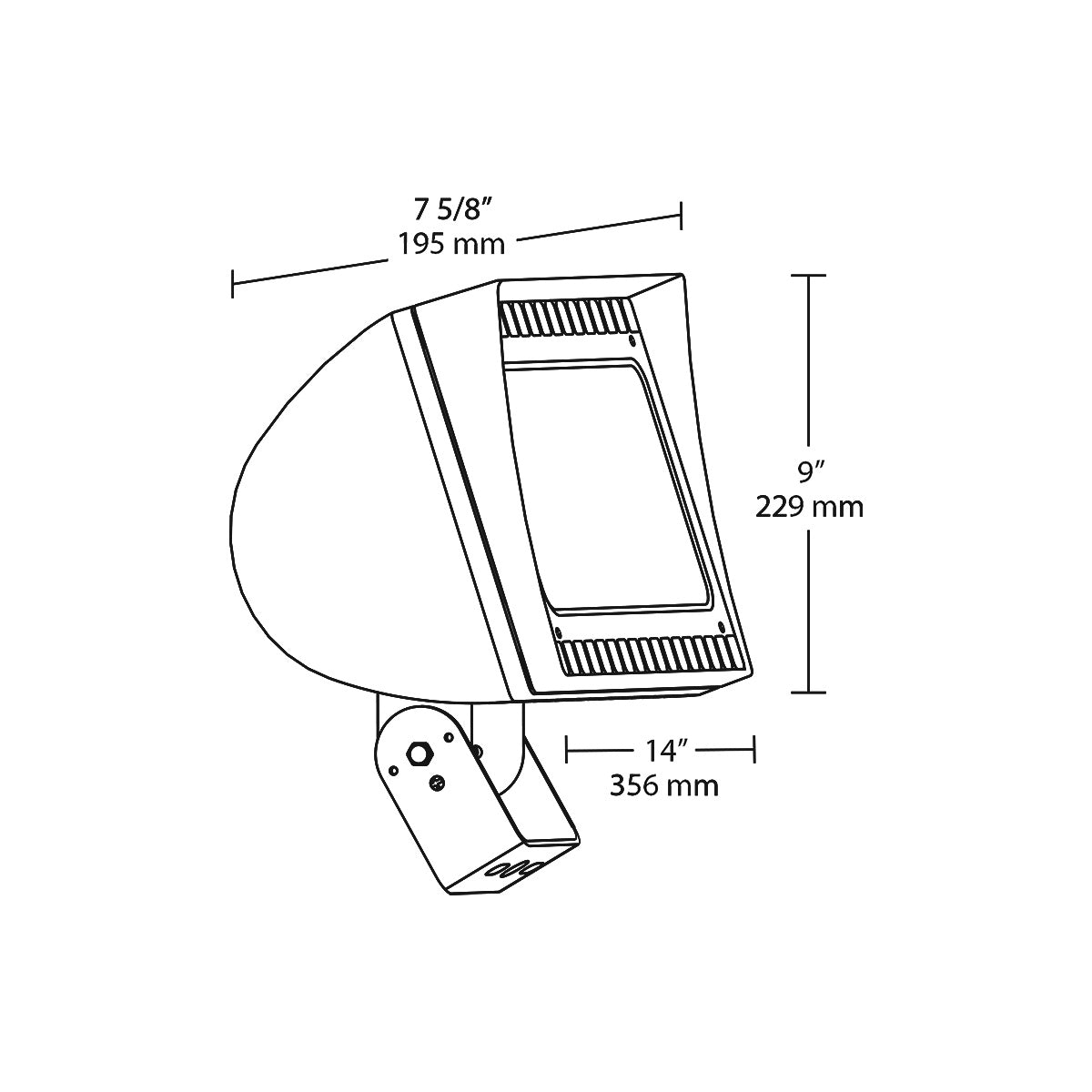

• Dimensions: 7 5/8" (195 mm) width x 9" (229 mm) height x 14" (356 mm) depth
• LED Lifespan: 100,000 hours
• Driver Type: Constant Current, Class 2, 120-277V, 50/60 Hz
• IP Rating: IP66 for dust and water protection
• Equivalent to 400W Metal Halide

Features

• 66% energy cost savings compared to HID lighting
• NEMA Type 6H x 6V optical distribution
• “Air-Flow” technology for enhanced heat dissipation
• Heavy-duty Trunnion mount with stainless steel hardware for secure installation
• Die-cast aluminum housing and door frame with durable bronze finish
• 5-year no-compromise warranty covering light output, color stability, driver performance, and fixture finish
• Listed by UL for wet locations and suitable for mounting within 4 feet of the ground
• Listed by Design Lights Consortium (DLC) as an ultra-efficient premium product

Downloads & Links

• Spec Sheet
• Instructions
• LM79
