FXLED150SF LED Flood Light - High-Efficiency Lighting Solutions

The FXLED150SF by RAB Lighting is a high-performance LED flood light designed for outdoor architectural flood and spot lighting applications. This fixture delivers precise, energy-efficient illumination suitable for electrical distributors and lighting solution providers focusing on wire and cable, and switchgear supplier markets. It operates on a universal voltage range of 120-277V at 50/60 Hz, providing consistent lighting performance in demanding environments down to -40°C ambient temperature.

Specifications

• Manufacturer: RAB
• Model Number: FXLED150SF
• Input Wattage: 164 watts
• Lumens Output: 20,686 lumens
• Efficacy: 126 lumens per watt
• Color Temperature: 5000 kelvins
• Color Rendering Index (CRI): 72
• Lens Material: Tempered Glass
• Ambient Operating Temperature: -40 degrees Celsius
• Product Weight: 22.6 lbs

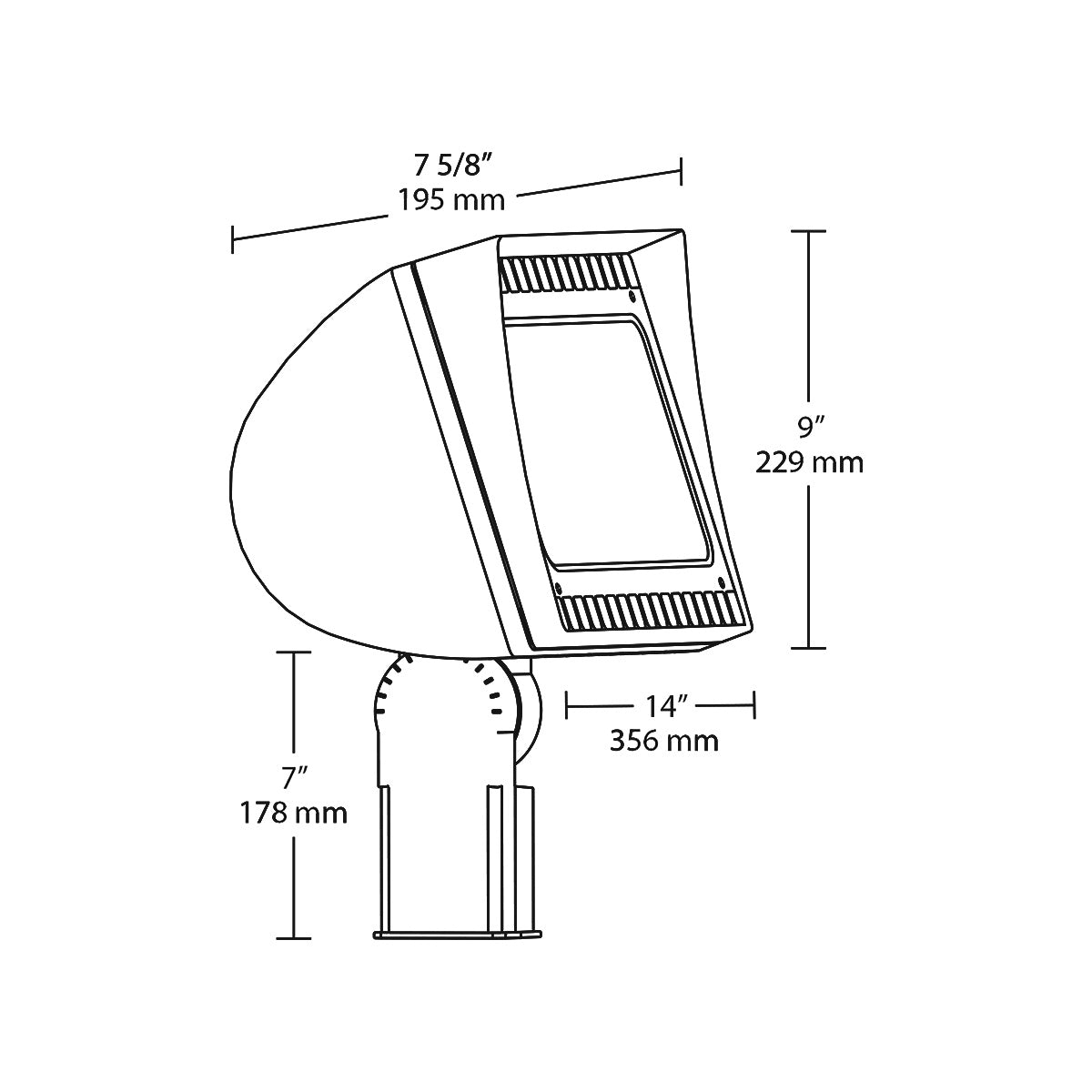

• Dimensions: 14" length x 9" height x 7 5/8" width (356 mm x 229 mm x 195 mm)

Features

• High luminous efficacy of 126 lm/W for energy savings
• Durable tempered glass lens for enhanced protection and longevity
• Wide operating temperature range suitable for harsh outdoor conditions
• Universal voltage driver compatible with 120-277V, 50/60 Hz power supplies
• Consistent color accuracy with a CRI of 72 for natural light rendering
• Robust design optimized for architectural flood and spot lighting

Downloads & Links

• Instructions
• LM79
• Spec Sheet
