FXLED125SF LED Flood Light

The FXLED125SF is a high-performance LED flood light designed for outdoor architectural and security lighting applications. It delivers efficient, high-lumen output suitable for electrical distributors and lighting solutions providers focused on wire and cable, and switchgear supplier markets. This fixture operates on universal voltage from 120V to 277V at 50/60Hz, ensuring compatibility with a wide range of electrical systems.

Specifications

• Manufacturer: RAB
• Model Number: FXLED125SF
• Input Wattage: 137 watts
• Lumens: 18,101 lumens
• Efficacy: 131 lumens per watt
• Color Temperature: 5000 kelvins
• Color Accuracy (CRI): 72
• Lens Material: Tempered Glass
• Operating Ambient Temperature: -40°C
• Product Weight: 25 lbs

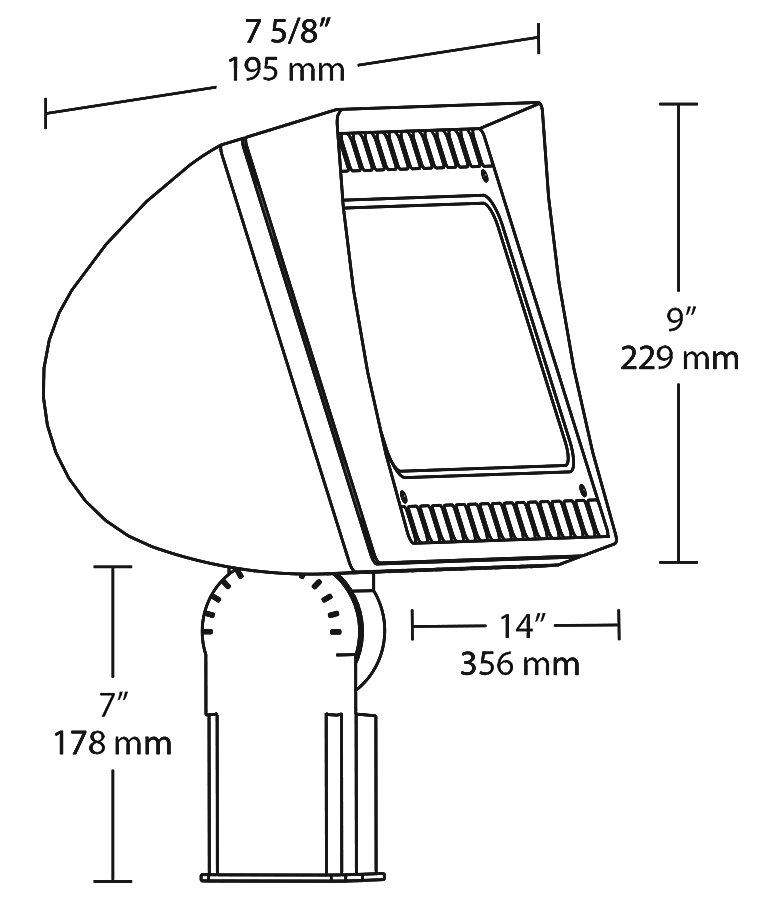

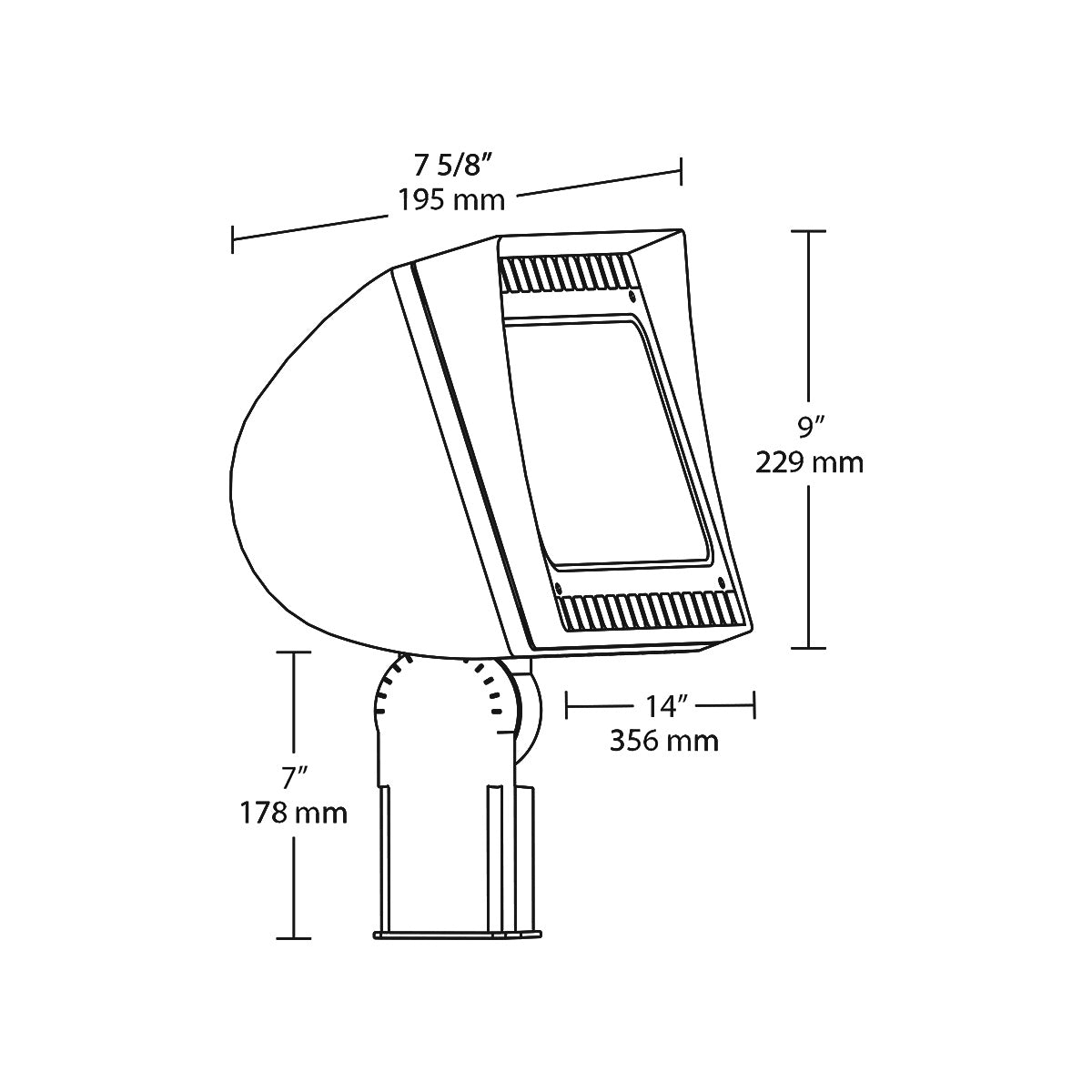

• Dimensions: 14" length x 9" height x 7 5/8" width (356 mm x 229 mm x 195 mm)
• Voltage Range: 120-277V, 50/60 Hz
• Power Factor: 0.999 (120V), 0.966 (277V)
• Total Harmonic Distortion (THD): 1.79% (120V), 9.84% (277V)

Features

• High lumen output with 18,101 lumens for bright, uniform illumination
• Energy-efficient LED technology with 131 lumens per watt efficacy
• Durable tempered glass lens for enhanced protection and longevity
• Wide operating temperature range down to -40°C for reliable outdoor performance
• Universal voltage driver supports 120V to 277V operation for flexible installation
• Low total harmonic distortion and high power factor for electrical efficiency
• Slipfitter and trunnion mounting options for versatile installation configurations
