FXLED105T LED Flood Light

The FXLED105T by RAB is a high-efficiency LED flood light designed for outdoor lighting applications. It offers an energy-saving alternative to traditional metal halide fixtures, suitable for commercial and industrial electrical distributors, lighting solutions providers, and switchgear suppliers requiring durable, high-performance illumination. The fixture is engineered for wet locations and can be mounted within 4 feet of the ground, making it ideal for site, security, and area lighting.

Specifications

• Manufacturer: RAB
• Input Wattage: 109 watts
• Lumens: 14,029 lumens
• Efficacy: 128 lumens per watt
• Color Temperature: 5000 kelvins (Cool)
• Color Accuracy: 72 CRI
• Lens Material: Tempered Glass
• Ambient Temperature Range: -40°C to 40°C (-40°F to 104°F)
• Weight: 27.8 lbs
• Mounting: Heavy-duty Trunnion mount with stainless steel hardware
• Housing: Die-cast aluminum housing and door frame
• IP Rating: IP66 for dust and water ingress
• Energy Savings: 66% compared to HID
• Lifespan: 100,000 hours (L70)
• Power Factor: 99.8% at 120V, 93.1% at 277V
• THD: 7.19% at 120V, 6.58% at 277V

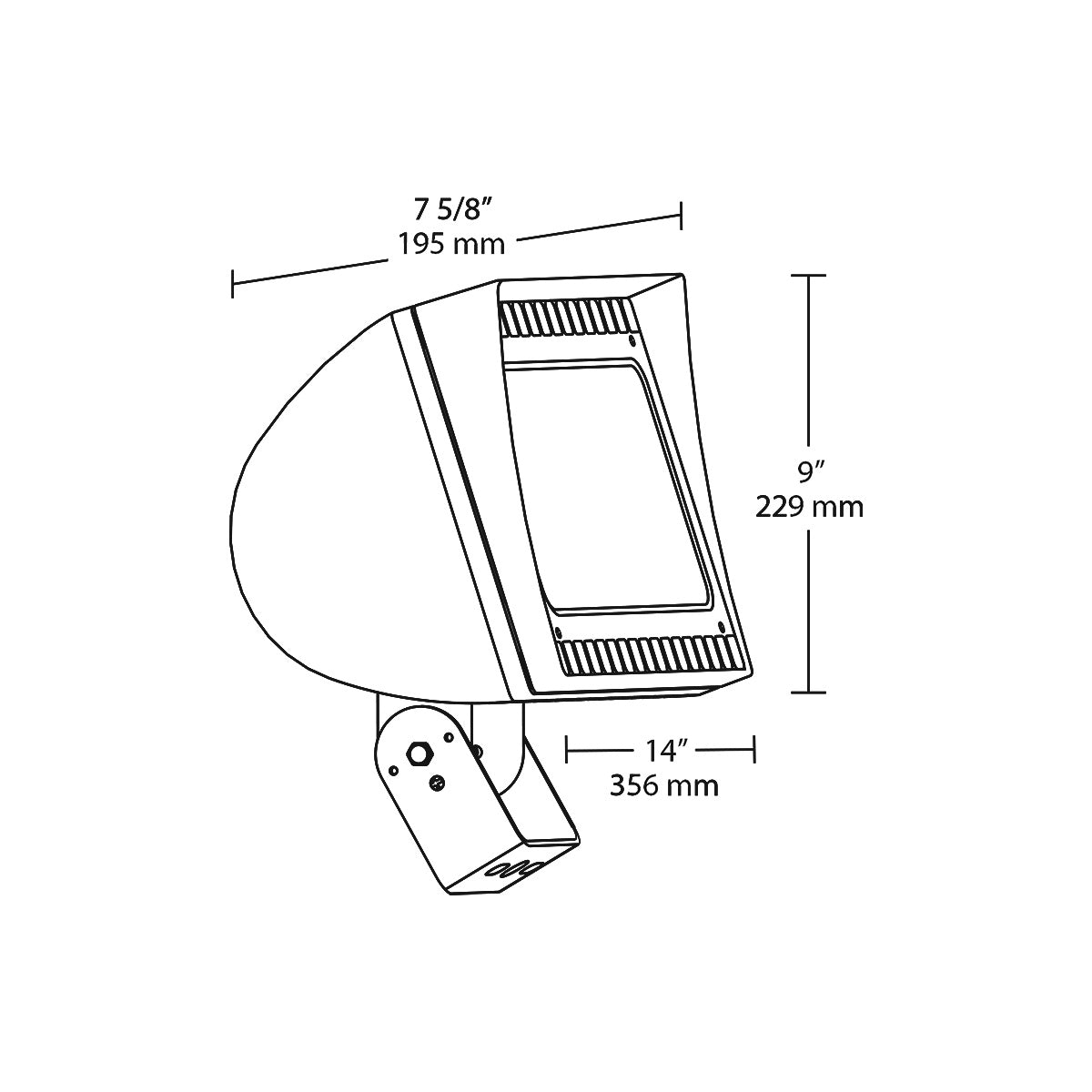

• Dimensions: 14" (356 mm) length x 9" (229 mm) height x 7 5/8" (195 mm) width

Features

• Constant current driver, Class 2, compatible with 120-277V, 50/60 Hz
• Replaces 320W metal halide fixtures
• “Air-Flow” technology for enhanced heat dissipation
• 5-year warranty covering light output, color stability, driver performance, and finish
• DLC listed as an ultra-efficient premium product for rebate eligibility
• Color temperature stability with less than 200K shift over 5 years
• Suitable for wet locations and outdoor environments
• Heavy-duty construction with durable bronze finish
