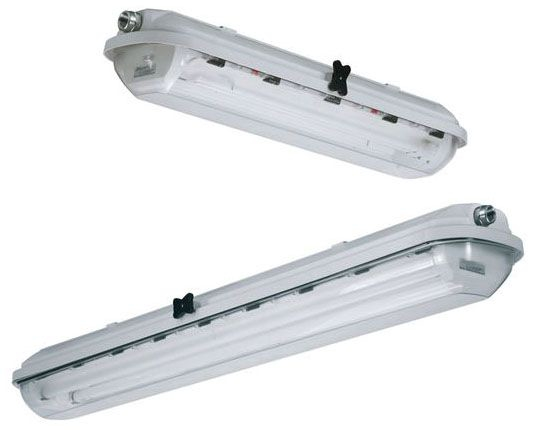

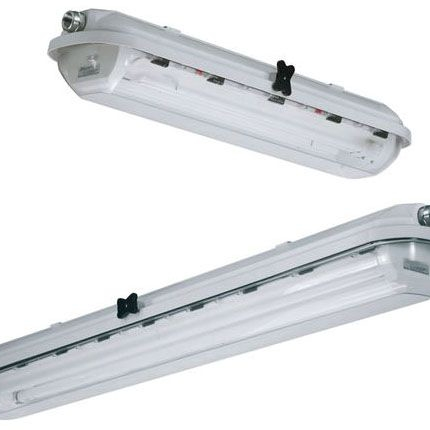

FVR332BU, Hazardous Location Fluorescent Light Fixture – Fluorescent Lighting Solutions

The FVR332BU Hazardous Location Fluorescent Light Fixture by Appleton is designed for use in demanding industrial environments requiring durable, corrosion-resistant lighting. It is ideal for indoor or outdoor applications where protection against dirt, water, and moisture is essential. This fixture is suitable for electrical distributors and switchgear suppliers seeking reliable lighting solutions compatible with wire and cable installations in hazardous locations.

Specifications

• Manufacturer: Appleton
• Manufacturer Part #: FVR332BU
• Lamp Wattage: 32 watts
• Housing Material: Fiberglass Reinforced Polyester
• Dimensions (L x W x H): 31" x 8.6" x 5.7" (Inches)
• Product Weight: 16 lbs
• Lens Material: Polycarbonate
• Gasket: Elastomer
• Hubs: Stainless Steel, 3/4" NPT, one on each side
• Lampholders: Polycarbonate
• Internal Reflectors: Highly Reflective White Polycarbonate
• Operating Temperature: Rated T6, suitable for ambient up to 40°C
• Compliance: UL844, UL1598 and 1598A, Type 4X, Marine Outdoor (Salt Water) except fixtures with fusing
• Hazardous Location Ratings: Class I, Div. 2, Groups A, B, C, D; Class II, Div. 2, Groups F & G; Class I, Zone 2, Group IIC
• UPC: 781381090797

Features

• Non-metallic fluorescent luminaire offering enhanced safety and durability
• Rugged lens able to withstand hose downs for easy cleaning
• Single-handed access to lamp and internal controls with automatic unit cutoff switch when opened
• Hinged internal reflector for easy access to control gear
• High light-producing efficiency of 94%
• Corrosion-resistant fiberglass reinforced polyester housing for long service life in harsh environments
• Multiple mounting options including surface, chain, fixed wall, and adjustable wall mounts
• Designed for permanent installation with grounding required for electrical safety
• Lens gasket ensures secure closure preventing ingress of dirt and moisture
• Compatible with supply wires rated at least 75°C
• Safety features include a safety switch and red reflector safety lock tab

Downloads and Links

• FV Series Fluorescent Fixtures Installation Instructions (PDF)
• Technical Specifications and Dimensions (PDF)
• Appleton GRP LLC Terms of Sale (PDF)
• Appleton Electric LLC Sales Policies and Procedures (PDF)
