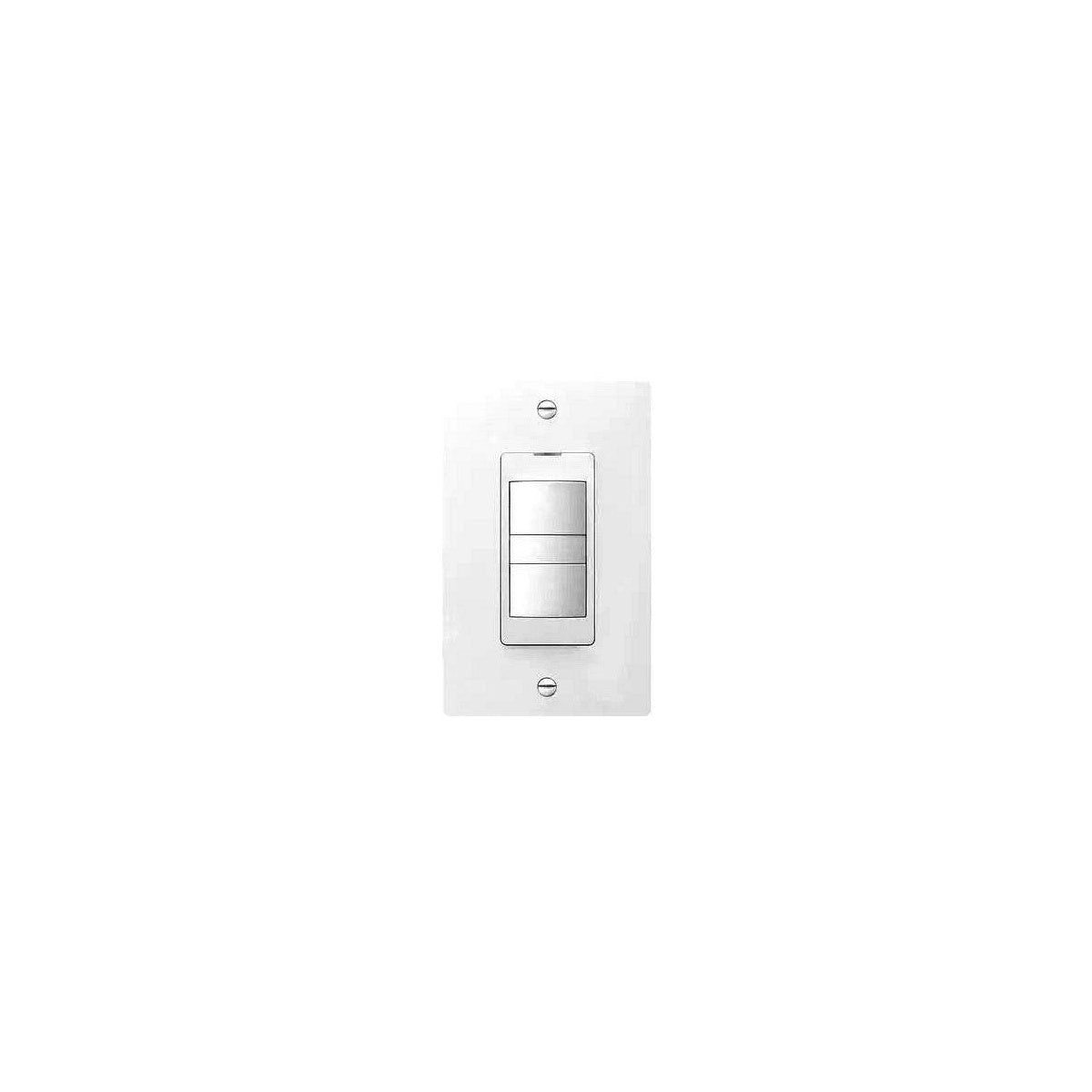

FV-WCD02-W, Preset Countdown and Hourly Timer Switch
SKU: #317984
Part: #FV-WCD02-W
UPC: 885170207523
FV-WCD02-W, Preset Countdown and Hourly Timer Switch
SKU: #317984
Part: #FV-WCD02-W
UPC: 885170207523
Description
FV-WCD02-W, Preset Countdown and Hourly Timer Switch for Electrical Distributor Applications
The FV-WCD02-W is a preset countdown and hourly timer switch designed for use in single gang boxes. It provides precise control for fan and light operation, suitable for residential and commercial ventilation systems. This timer switch supports compliance with ventilation standards such as ASHRAE 62.2, LEED, and ENERGY STAR® 3.0, making it a reliable component for lighting solutions and wire and cable installations managed by switchgear suppliers and electrical distributors.
Specifications
- Amperage Rating: 8 Amp
- Voltage: 120 Volt
- Housing Material: Galvanized steel
- Dimensions: 5.75 in (Width) x 5.13 in (Height) x 10.5 in (Length)
- Color: White
- Termination: 6" Leads
- Maximum Fluorescent Light Load: 400 Watt
- Standard Certifications: UL/CSA Listed
- Warranty: 2 Year Limited
- Application: Use in single gang box
- Manufacturer: Panasonic
- Manufacturer Part #: FV-WCD02-W
Features
- Preset countdown timer with selectable intervals: 5, 15, 30, 45, or 60 minutes
- Adjustable Minutes Per Hour (MPH) fan timer (0-60 minutes) for controlled ventilation compliance with ASHRAE 62.2
- Manual On/Off control for both fan and light functions
- Blue LED indicator illuminates when the fan is operating
- Commercial grade design supporting an 8 Amp maximum load
- Includes matching wall plate for seamless installation
- Designed for indoor use
