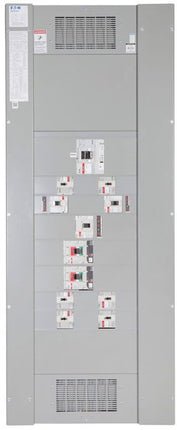

Fusible panelboard switch, FDPW, Unit 1: 60A, Unit 2: 100A, Three-pole, 240 Vac, 250 Vdc, 200 kAIC at 240 Vac, 10 kAIC at 250 Vdc, #14-1/0, Class R fuses, Twin, horizontal, Branch
SKU: #165540
Part: #FDPWT3223R
UPC: 786679914304
Fusible panelboard switch, FDPW, Unit 1: 60A, Unit 2: 100A, Three-pole, 240 Vac, 250 Vdc, 200 kAIC at 240 Vac, 10 kAIC at 250 Vdc, #14-1/0, Class R fuses, Twin, horizontal, Branch
SKU: #165540
Part: #FDPWT3223R
UPC: 786679914304
Description
Fusible panelboard switch FDPW - Electrical Panelboard Switch
The Eaton Fusible Panelboard Switch FDPW is designed for commercial, industrial, and service entrance applications, providing reliable protection and switching for feeder and branch circuits. This unit supports electrical distributors and switchgear suppliers with its robust construction and high interrupting capacity, suitable for integration in lighting solutions, wire and cable systems, and electrical distribution panels.
Specifications
- Manufacturer: Eaton
- Manufacturer Part #: FDPWT3223R
- Amperage: 100 amperes
- Voltage Rating: 240 Vac, 250 Vdc
- Interrupt Rating: 200 kAIC at 240 Vac, 10 kAIC at 250 Vdc
- Poles: Three-pole
- Fuse Type: Class R fuses
- Fuse Size: #14-1/0
- Connection Type: Branch
- Dimensions (W x H x L): 8 in x 10.2 in x 22.3 in
- Product Weight: 17.15 lbs
- Configuration: Twin, horizontal
Features
- Quick-make, quick-break switch mechanism housed in a durable sheet steel enclosure
- Interlock mechanism prevents opening the switch cover when the switch is ON, enhancing safety
- Padlockable in both ON and OFF positions for secure operation
- Designed for installation in PRL4-F or CDP/FDP Distribution Panelboard chassis
- High interrupting capacity of 200,000 A rms symmetrical at 600V AC for reliable circuit protection
