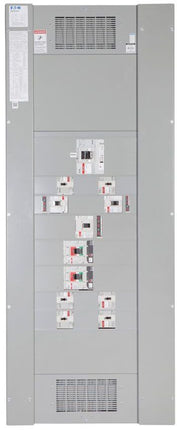

Fusible panelboard switch, FDPW, 600A, Three-pole, 240 Vac, 200 kAIC, (2) #4-600 MCM or (4) 3/0-250 MCM, Class R fuses, 200 hp at 240 Vac, Single, horizontal, Branch
SKU: #165507
Part: #FDPW326R
UPC: 786679783917
Fusible panelboard switch, FDPW, 600A, Three-pole, 240 Vac, 200 kAIC, (2) #4-600 MCM or (4) 3/0-250 MCM, Class R fuses, 200 hp at 240 Vac, Single, horizontal, Branch
SKU: #165507
Part: #FDPW326R
UPC: 786679783917
Description
Fusible panelboard switch FDPW 600A – Electrical Distributor Switchgear Supplier
The Fusible Panelboard Switch FDPW by Eaton is designed for industrial and commercial electrical distribution applications. It provides reliable branch circuit protection and switching with a 600 ampere rating, suitable for 240 Vac systems. This switch is ideal for use in panelboards requiring a fusible protection solution, integrating seamlessly with wire and cable systems and serving as a critical component in lighting solutions and power distribution setups.
Specifications
- Name: Fusible panelboard switch, FDPW, 600A, Three-pole, 240 Vac, 200 kAIC, (2) #4-600 MCM or (4) 3/0-250 MCM, Class R fuses, 200 hp at 240 Vac, Single, horizontal, Branch
- Amperage: 600 amperes
- Voltage: 240 Vac
- Interrupt Rating: 200 kiloamps
- Connection Type: Branch
- Enclosure Material: Stainless Steel
- Dimensions (W x H x L): 16.5 in x 10.5 in x 25 in
- Product Weight: 51.7 lbs
- Manufacturer: Eaton
- Manufacturer Part #: FDPW326R
- Wire Range: (2) #4-600 MCM or (4) 3/0-250 MCM
- Fuse Class: Class R
- Horsepower Rating: 200 hp at 240 Vac
Features
- Three-pole fusible switch providing reliable branch circuit protection
- Horizontal single configuration optimized for panelboard integration
- High interrupt rating of 200 kAIC for enhanced safety and durability
- Stainless steel enclosure for robust environmental resistance
- UL recognized pressure terminals supporting #4 to 600 kcmil copper or aluminum wiring
- Compatible with Class R fuses for effective overcurrent protection
- Supports motor loads up to 200 horsepower at 240 Vac
- Designed for use in electrical distribution systems by electrical distributors and switchgear suppliers
