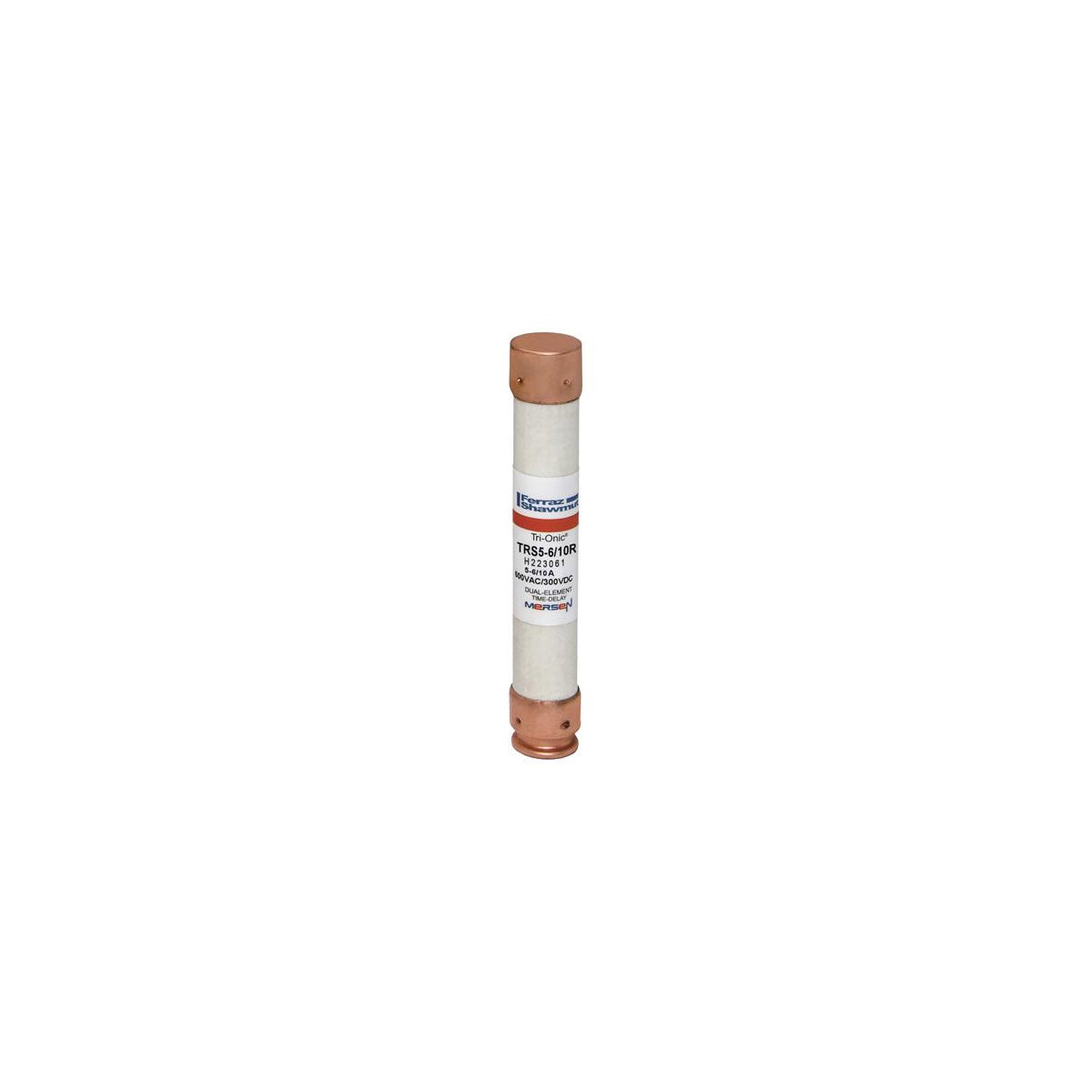

Fuse Tri-Onic® 600V 5.6A Time-Delay Class RK5 TRS Series - Current-Limiting Time-Delay Fuse

The Fuse Tri-Onic® 600V 5.6A Time-Delay Class RK5 TRS Series is designed for overcurrent protection in motor circuits, mains, feeders, branch circuits, transformers, and service entrance equipment. Manufactured by Mersen, this fuse features time-delay characteristics that safely handle harmless motor starting and transformer inrush currents, making it suitable for a wide range of electrical distributor and switchgear supplier applications. It is ideal for use in lighting solutions, wire and cable protection, and general-purpose equipment requiring reliable current-limiting protection.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: TRS5-6/10R
• Amperage Rating: 5.6 A
• Voltage Rating: 600 V AC
• Fuse Class: Class RK5
• Interrupt Rating: 200 kA
• Frequency: 50 hertz
• Connection: Ferrule
• Mounting Type: Clip
• Insulation Material: PolyTube
• Dimensions: Length 5 in, Diameter 0.81 in, Width 0.81 in, Height 0.81 in
• Product Weight: 0.1370 lb
• Application: Motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment, general-purpose equipment

Features

• Time-delay for motor start-ups and transformer inrush currents without nuisance opening
• Current-limiting for low peak let-thru current
• Clip mounting for secure installation
• Rejection-style design prevents replacement errors when used with recommended fuse blocks
• Fiberglass body provides dimensional stability in harsh industrial settings
• High-grade silica filler ensures fast arc quenching and high current limitation
• Metal-embossed date and catalog number for traceability and lasting identification
