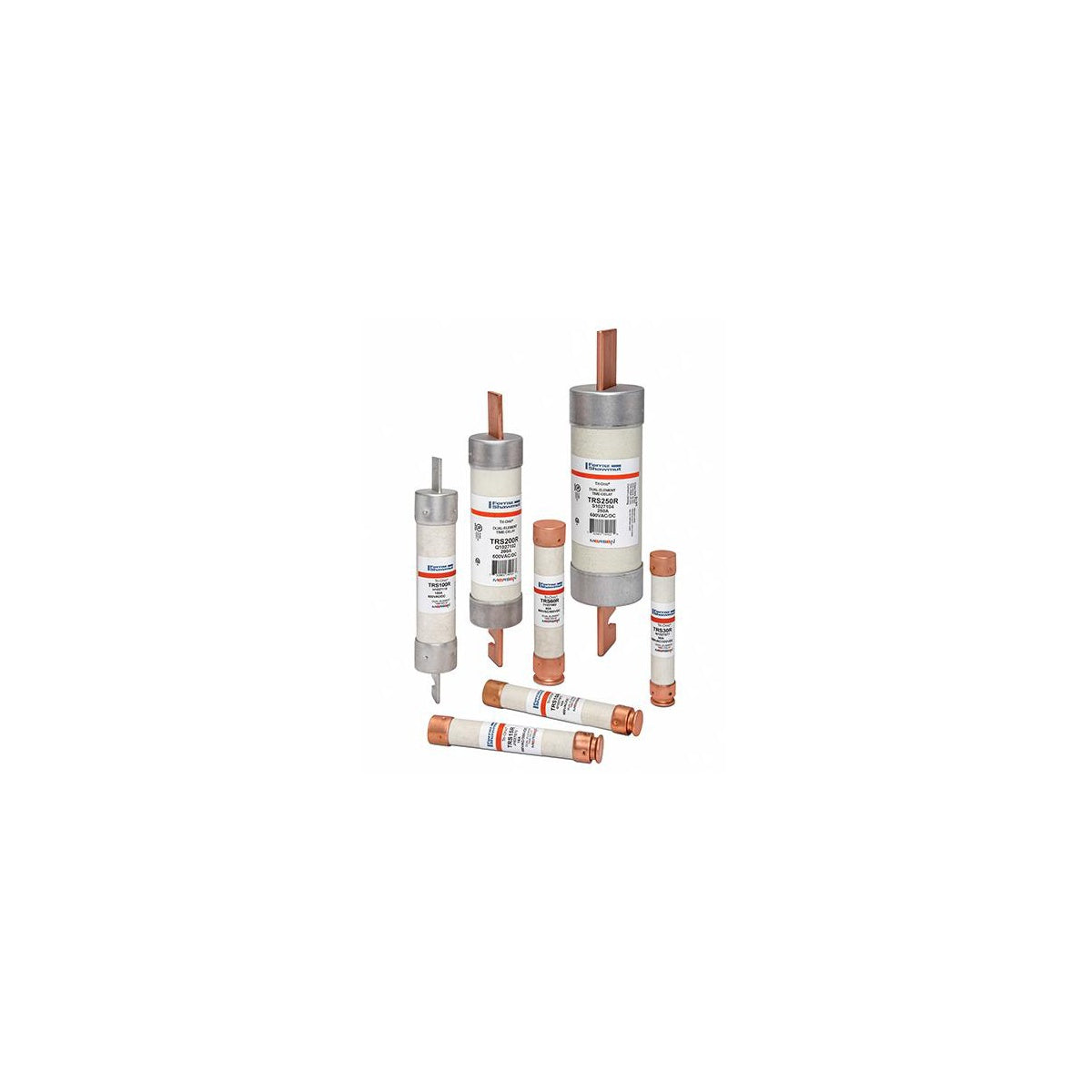

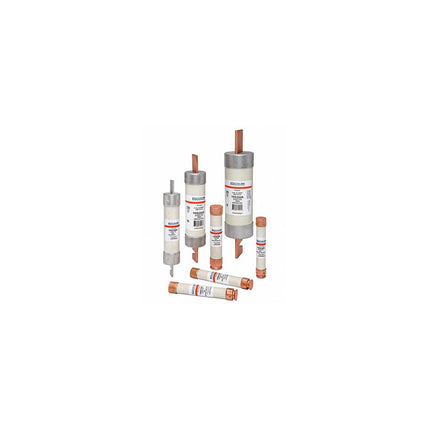

Fuse Tri-Onic® 600V 450A Time-Delay Class RK5 TRS Series Smart-Spot
SKU: #197999
Part: #TRS450RID
UPC: 782001415280
Fuse Tri-Onic® 600V 450A Time-Delay Class RK5 TRS Series Smart-Spot
SKU: #197999
Part: #TRS450RID
UPC: 782001415280
Description
Fuse Tri-Onic® 600V 450A Time-Delay Class RK5 TRS Series Smart-Spot
The Fuse Tri-Onic® TRS Series is a Class RK5 time-delay fuse designed for overcurrent protection in motor circuits, mains feeders, branch circuits, transformers, and service entrance equipment. Engineered with dual-element technology, it safely handles motor starting and transformer inrush currents, making it suitable for general-purpose electrical distribution and switchgear applications.
Specifications
- Amperage Rating: 450 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Fuse Class: Class RK5
- Dimensions (L x W x H): 13.38 in x 3.12 in x 3.12 in
- Diameter: 3.12 inches
- Connection Type: Blade
- Mounting Type: Clip
- Insulation Material: PolyTube
- Product Weight: 4.77 lbs
- Manufacturer Part Number: TRS450RID
- Manufacturer: Mersen
Features
- Time-delay characteristics for handling harmless starting and inrush currents
- Dual-element design for reliable overcurrent protection
- Smart-Spot indicator for easy fuse status identification
- PolyTube insulation for enhanced durability and safety
- Clip mounting for straightforward installation in electrical panels
