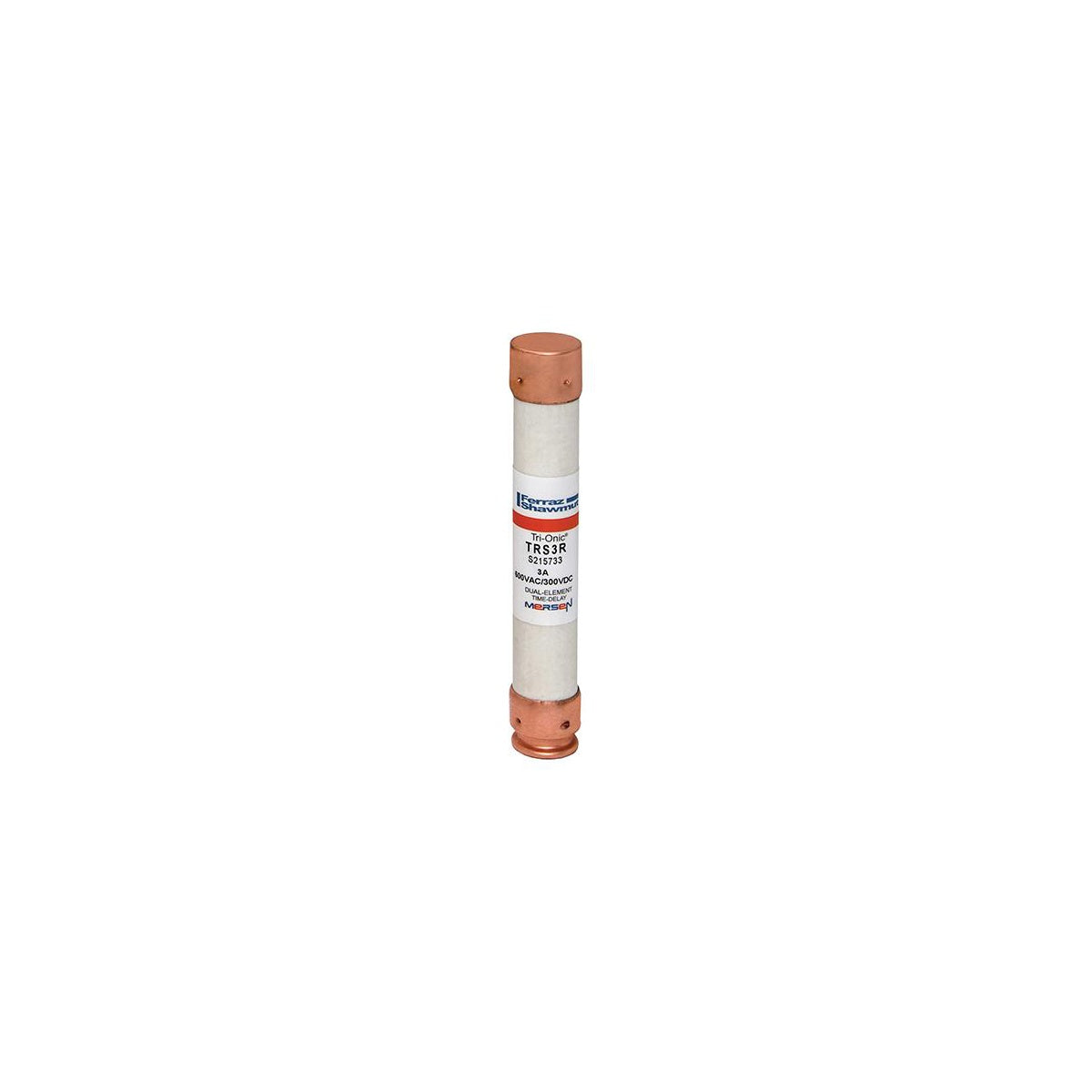

Fuse Tri-Onic® 600V 3A Time-Delay Class RK5 TRS Series
SKU: #197965
Part: #TRS3R
UPC: 782001748685
Fuse Tri-Onic® 600V 3A Time-Delay Class RK5 TRS Series
SKU: #197965
Part: #TRS3R
UPC: 782001748685
Description
Fuse Tri-Onic® 600V 3A Time-Delay Class RK5 TRS Series
The Fuse Tri-Onic® 600V 3A Time-Delay Class RK5 TRS Series by Mersen is engineered for overcurrent protection in motor circuits, mains, feeders, branch circuits, transformers, and service entrance equipment. Its current-limiting and time-delay characteristics allow it to safely handle starting and inrush currents typical in motors and transformers. This fuse is suitable for electrical distributors and switchgear suppliers requiring reliable protection components within lighting solutions and wire and cable applications.
Specifications
- Amperage Rating: 3 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200 kA
- Fuse Class: Class RK5
- Frequency: 50 hertz
- Dimensions (L x W x H): 5 in x 0.81 in x 0.81 in
- Diameter: 0.81 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Product Weight: 0.1370 lbs
- Manufacturer Part #: TRS3R
- Manufacturer: Mersen
Features
- Time-delay characteristic for motor start-ups and transformer inrush currents without nuisance opening
- Current-limiting design reduces peak let-thru current
- Designed to prevent replacement errors when used with recommended fuse blocks
- Easy-to-read label for quick brand recognition and replacement
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body offers dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching and high current limitation
