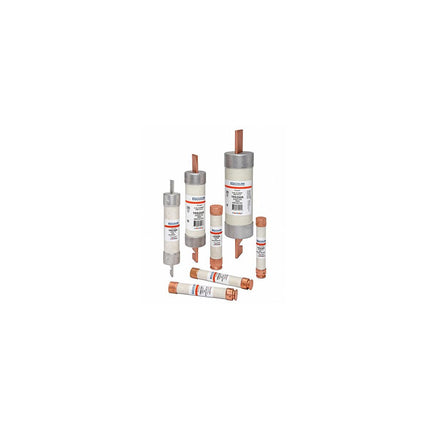

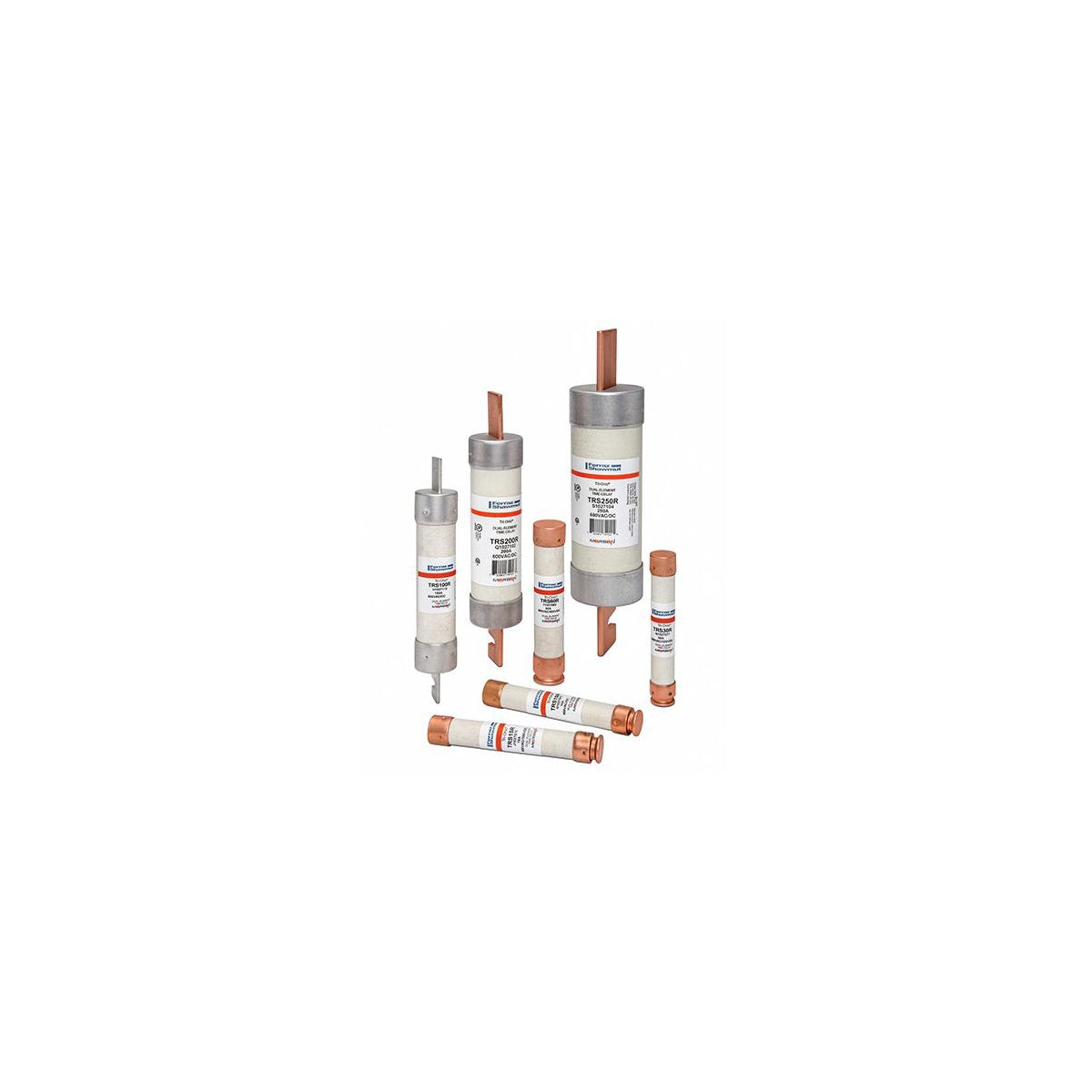

Fuse Tri-Onic® 600V 20A Time-Delay Class RK5 TRS Series Smart-Spot
SKU: #197906
Part: #TRS20RID
UPC: 782001415068
Fuse Tri-Onic® 600V 20A Time-Delay Class RK5 TRS Series Smart-Spot
SKU: #197906
Part: #TRS20RID
UPC: 782001415068
Description
Fuse Tri-Onic® 600V 20A Time-Delay Class RK5 TRS Series Smart-Spot
The Mersen Fuse Tri-Onic® TRS Series is a 600V, 20A time-delay fuse designed for overcurrent protection in motor circuits, mains feeders, branch circuits, transformers, and service entrance equipment. Its time-delay characteristics allow it to safely handle harmless motor starting and transformer inrush currents, making it suitable for general-purpose electrical distribution and switchgear applications.
Specifications
- Amperage Rating: 20 A
- Voltage Rating: 600 V
- Interrupt Rating: 200 kA
- Fuse Class: Class RK5
- Frequency: 50 hertz
- Dimensions: Length 5 in, Diameter 0.81 in, Width 0.81 in, Height 0.81 in
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Product Weight: 0.1370 lb
- Manufacturer Part #: TRS20RID
- Manufacturer: Mersen
Features
- Time-delay design for handling motor starting and transformer inrush currents
- Current-limiting capability to enhance circuit protection
- Smart-Spot indicator for easy fuse status identification
- Durable PolyTube insulation for enhanced safety and reliability
- Clip mounting for straightforward installation in electrical panels
