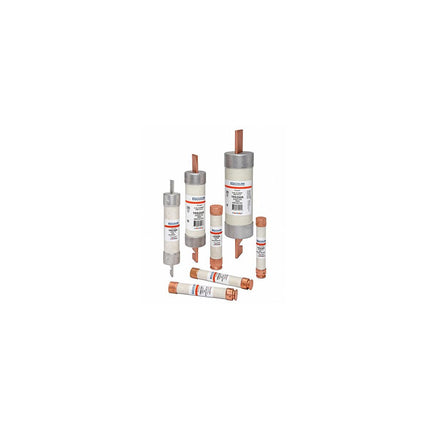

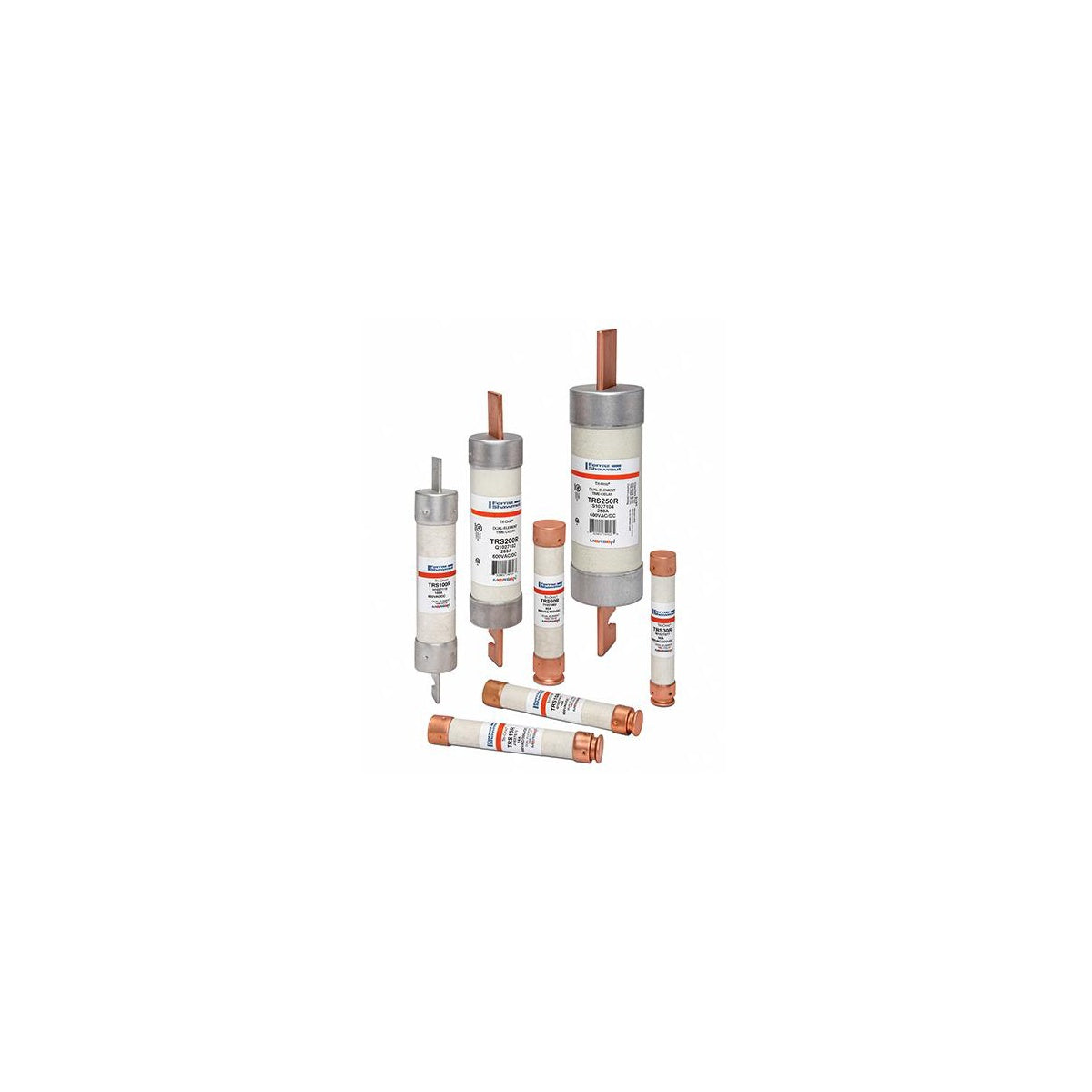

Fuse Tri-Onic® 600V 12A Time-Delay Class RK5 TRS Series Smart-Spot
SKU: #197838
Part: #TRS12RID
UPC: 782001415037
Fuse Tri-Onic® 600V 12A Time-Delay Class RK5 TRS Series Smart-Spot
SKU: #197838
Part: #TRS12RID
UPC: 782001415037
Description
Fuse Tri-Onic® 600V 12A Time-Delay Class RK5 TRS Series Smart-Spot
The Fuse Tri-Onic® 600V 12A Time-Delay Class RK5 TRS Series Smart-Spot is designed for overcurrent protection in motor circuits, mains feeders, branch circuits, transformers, and service entrance equipment. This time-delay fuse safely handles the inrush and starting currents typical of motors and transformers, making it suitable for general-purpose electrical distribution and lighting solutions applications.
Specifications
- Voltage Rating: 600 V
- Amperage Rating: 12 A
- Fuse Class: Class RK5
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Dimensions (L x W x H): 5 in x 0.81 in x 0.81 in
- Diameter: 0.81 inches
- Weight: 0.1370 lbs
- Mounting Type: Clip
- Connection Type: Ferrule
- Insulation Material: PolyTube
- Manufacturer Part Number: TRS12RID
- Manufacturer: Mersen
Features
- Time-delay characteristic to handle harmless starting and inrush currents
- Engineered for protection of motors, transformers, feeders, and branch circuits
- Smart-Spot indicator for easy fuse status identification
- PolyTube insulation for enhanced durability and safety
- Clip mounting for secure and straightforward installation
