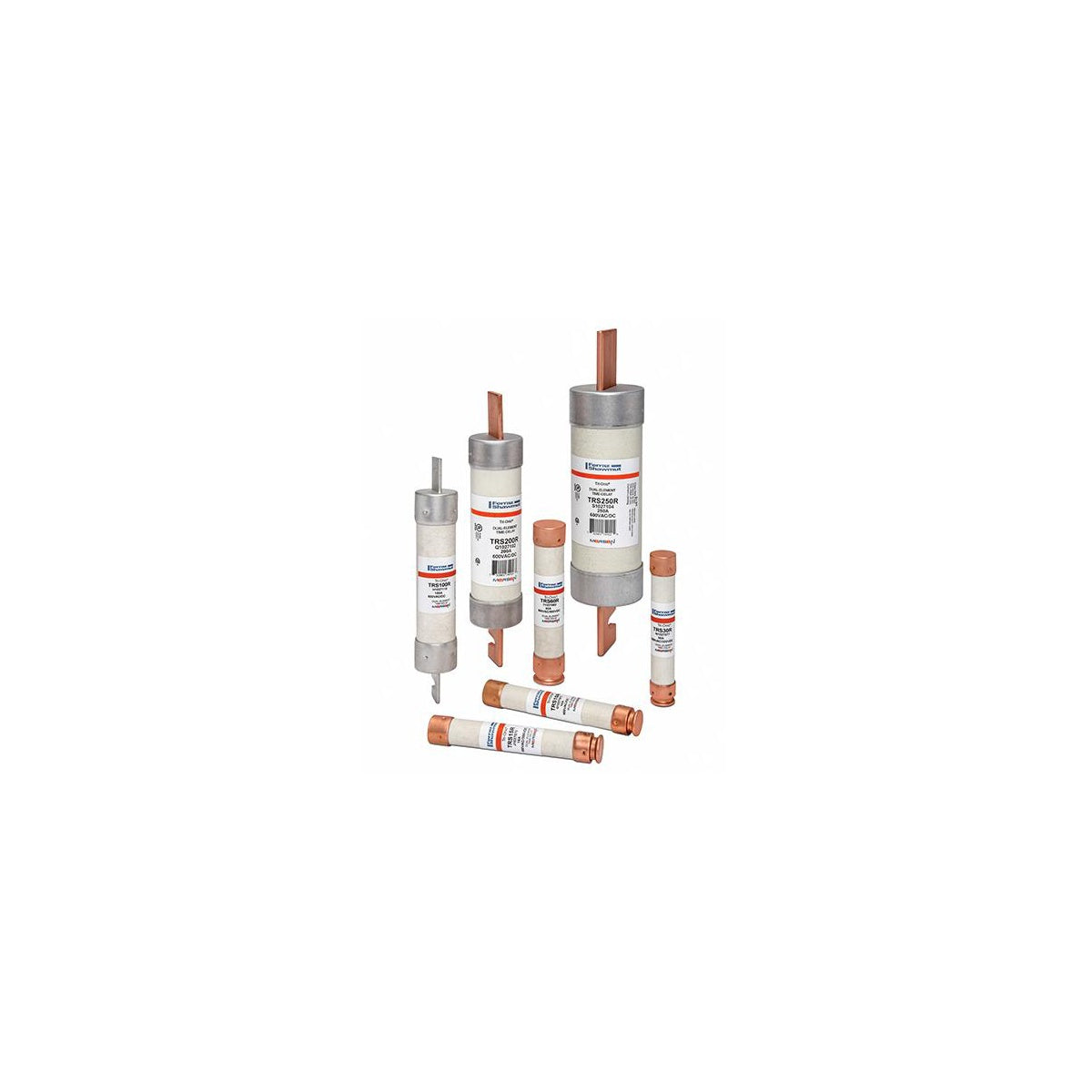

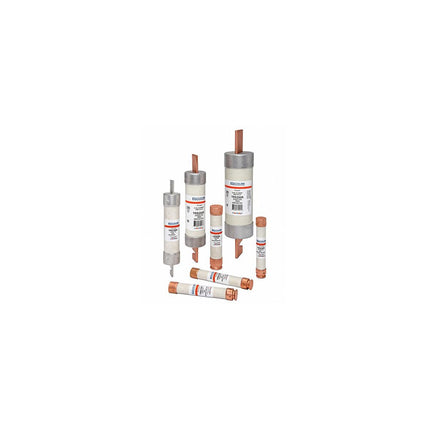

Fuse Tri-Onic® 600V 110A Time-Delay Class RK5 TRS Series Smart-Spot

The Fuse Tri-Onic® TRS Series is a 600V, 110A time-delay fuse designed for overcurrent protection in motor circuits, mains, feeders, branch circuits, transformers, and service entrance equipment. Engineered with current-limiting and time-delay characteristics, it safely handles motor starting and transformer inrush currents without nuisance openings. This product is suitable for electrical distributors and switchgear suppliers seeking reliable protection solutions within lighting and wire and cable systems.

Specifications

• Manufacturer: Mersen
• Manufacturer Part #: TRS110RID
• Class: Class RK5
• Fuse Class: Class RK5
• Amperage Rating: 110 A
• Voltage Rating: 600V
• Interrupt Rating: 200 kA
• Frequency: 50 hertz
• Dimensions (L x W x H): 9.63 in x 1.81 in x 1.81 in
• Diameter: 1.81 inches
• Product Weight: 1.32 lbs
• Connection Type: Blade
• Mounting Type: Clip
• Insulation Material: PolyTube
• Application: Motor circuits, mains feeders, branch circuits, transformers, service entrance equipment, general-purpose equipment

Features

• Time-delay for motor start-ups and transformer inrush currents without nuisance opening
• Current-limiting for low peak let-thru current
• Optional SmartSpot® solid-state blown fuse indicator for visual status
• Rejection-style design to prevent replacement errors when used with recommended fuse blocks
• Easy-to-read label for quick brand recognition and replacement
• Metal-embossed date and catalog number for traceability and lasting identification
• Fiberglass body provides dimensional stability in harsh industrial environments
• High-grade silica filler ensures fast arc quenching and high current limitation
