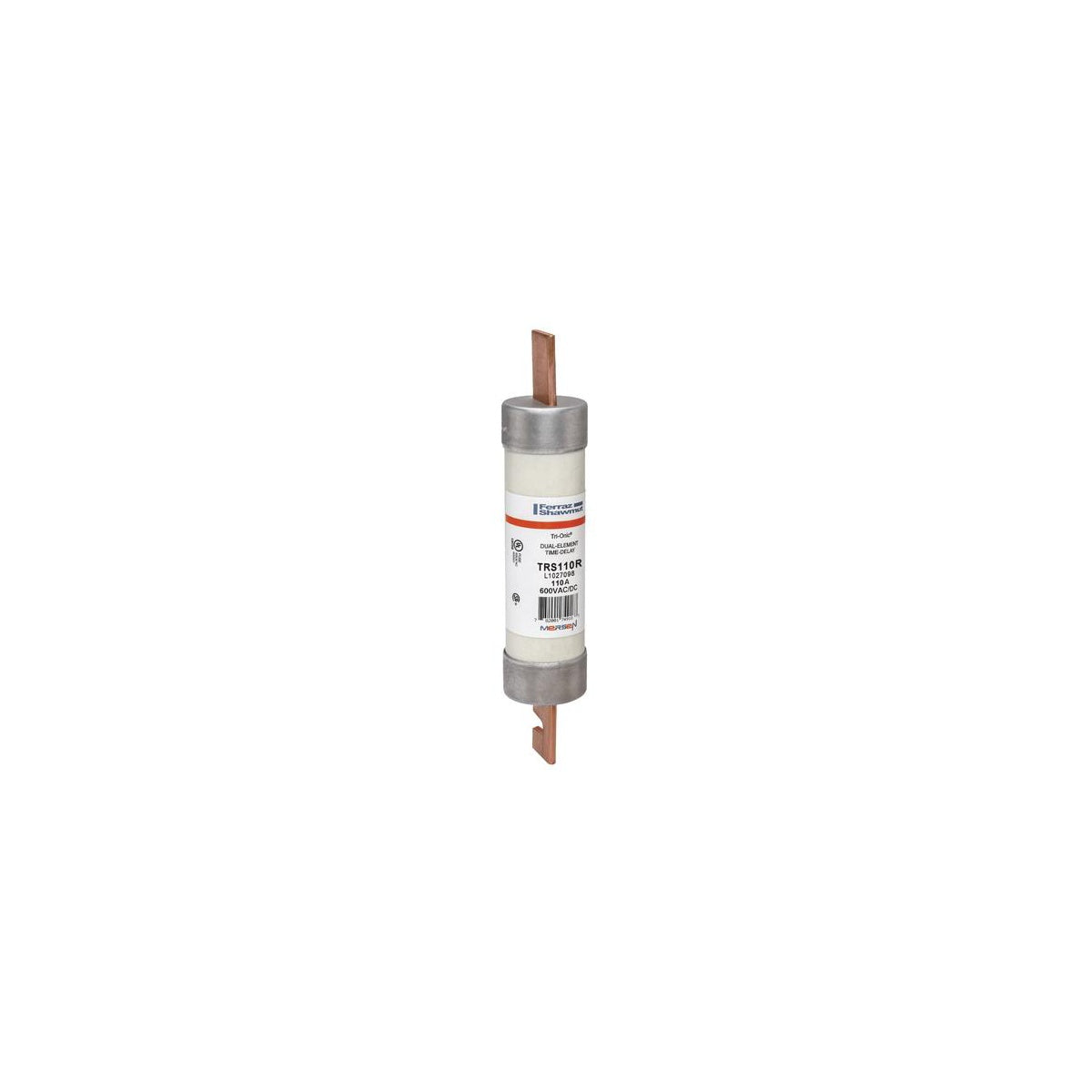

Fuse Tri-Onic® 600V 110A Time-Delay Class RK5 TRS Series

The Tri-Onic TRS-R fuse is a current-limiting time-delay fuse designed for overcurrent protection in motor circuits, mains, feeders, branch circuits, transformers, service entrance equipment, and general-purpose electrical equipment. This fuse is suitable for use by electrical distributors and switchgear suppliers requiring reliable protection with time-delay characteristics that safely handle motor starting currents and transformer inrush currents. It is rated for both AC and DC applications and is engineered for use in lighting solutions and wire and cable systems where dependable fuse protection is critical.

Specifications

• Amperage Rating: 110 A
• Voltage Rating: 600 V AC/DC
• Interrupt Rating: 200 kA
• Fuse Class: Class RK5
• Frequency: 50 hertz
• Dimensions (L x W x H): 9.63 in x 1.81 in x 1.81 in
• Diameter: 1.81 inches
• Mounting Type: Clip
• Connection Type: Blade
• Insulation Material: PolyTube
• Product Weight: 1.32 lbs
• Manufacturer: Mersen
• Manufacturer Part #: TRS110R

Features

• Time-delay for motor start-ups and transformer inrush currents without nuisance opening
• Current-limiting design for low peak let-thru current
• AC and DC rated fuse
• Rejection-style design to prevent replacement errors when used with recommended fuse blocks
• Easy-to-read label for quick brand recognition and replacement
• Metal-embossed date and catalog number for traceability and lasting identification
• Fiberglass body provides dimensional stability in harsh industrial environments
• High-grade silica filler ensures fast arc quenching and high current limitation
