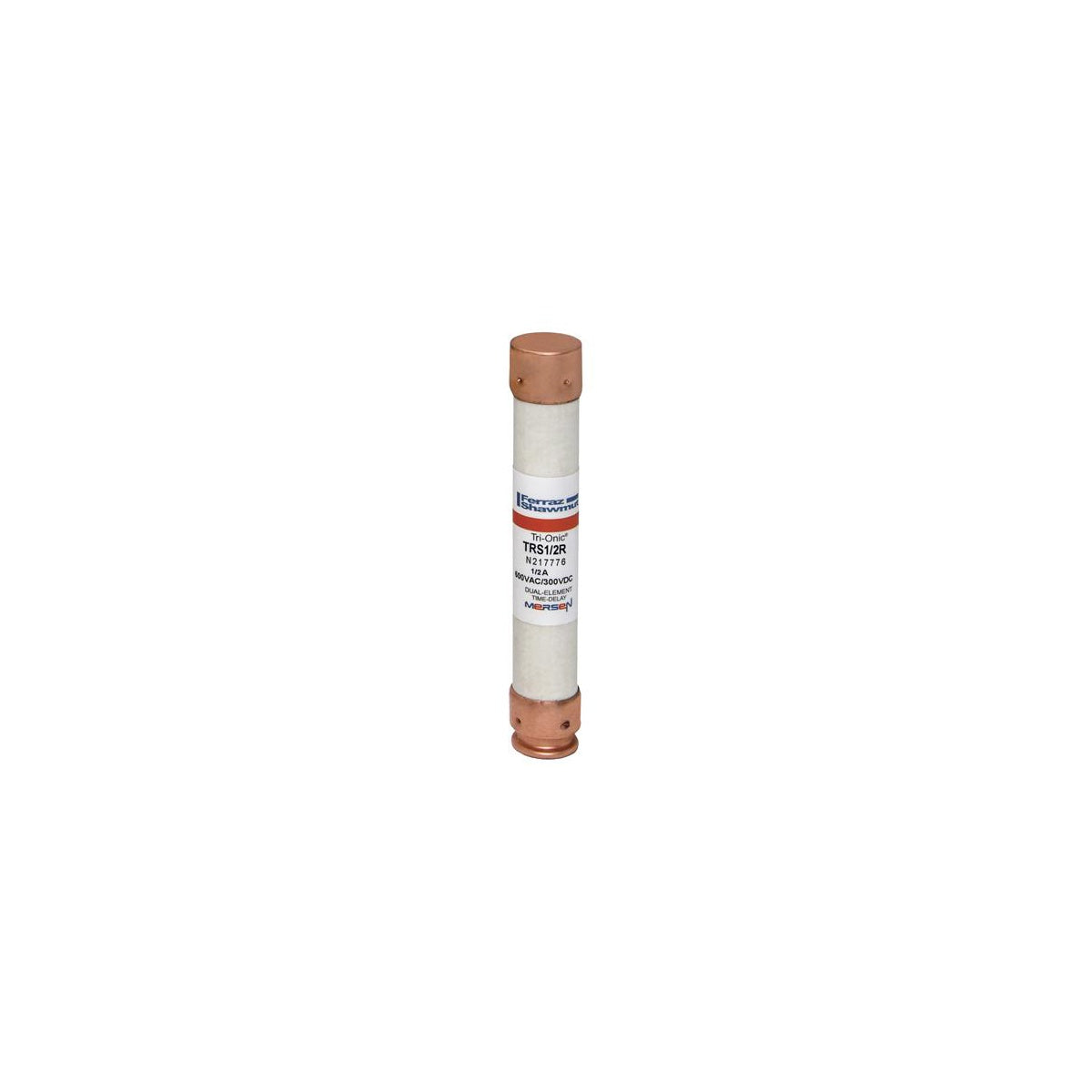

Fuse Tri-Onic® 600V 0.5A Time-Delay Class RK5 TRS Series
SKU: #197768
Part: #TRS1/2R
UPC: 782001748555

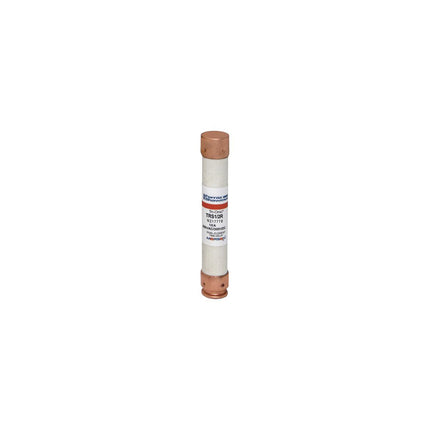

Fuse Tri-Onic® 600V 0.5A Time-Delay Class RK5 TRS Series
SKU: #197768
Part: #TRS1/2R
UPC: 782001748555
Description
Fuse Tri-Onic® 600V 0.5A Time-Delay Class RK5 TRS Series Fuse
The Fuse Tri-Onic® 600V 0.5A Time-Delay Class RK5 TRS Series is designed for overcurrent protection in motor circuits, mains feeders, branch circuits, transformers, and service entrance equipment. This current-limiting time-delay fuse features proven time-delay characteristics to safely manage harmless starting and inrush currents typical in motors and transformers. It is suitable for electrical distributors and switchgear suppliers requiring reliable protection components in their lighting solutions and wire and cable systems.
Specifications
- Amperage Rating: 0.5 A
- Voltage Rating: 600 V AC
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Fuse Class: Class RK5
- Dimensions: Length 5 in, Diameter 0.81 in, Width 0.81 in, Height 0.81 in
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Product Weight: 0.1370 lbs
- Manufacturer Part Number: TRS1/2R
- Manufacturer: Mersen
Features
- Time-delay for motor start-ups and transformer inrush currents without nuisance opening
- Current-limiting for low peak let-thru current
- AC & DC rated
- Rejection-style design prevents replacement errors when used with recommended fuse blocks
- Easy-to-read label for quick brand recognition and replacement
- Metal-embossed date and catalog number for traceability and lasting identification
- Fiberglass body provides dimensional stability in harsh industrial settings
- High-grade silica filler ensures fast arc quenching and high current limitation
