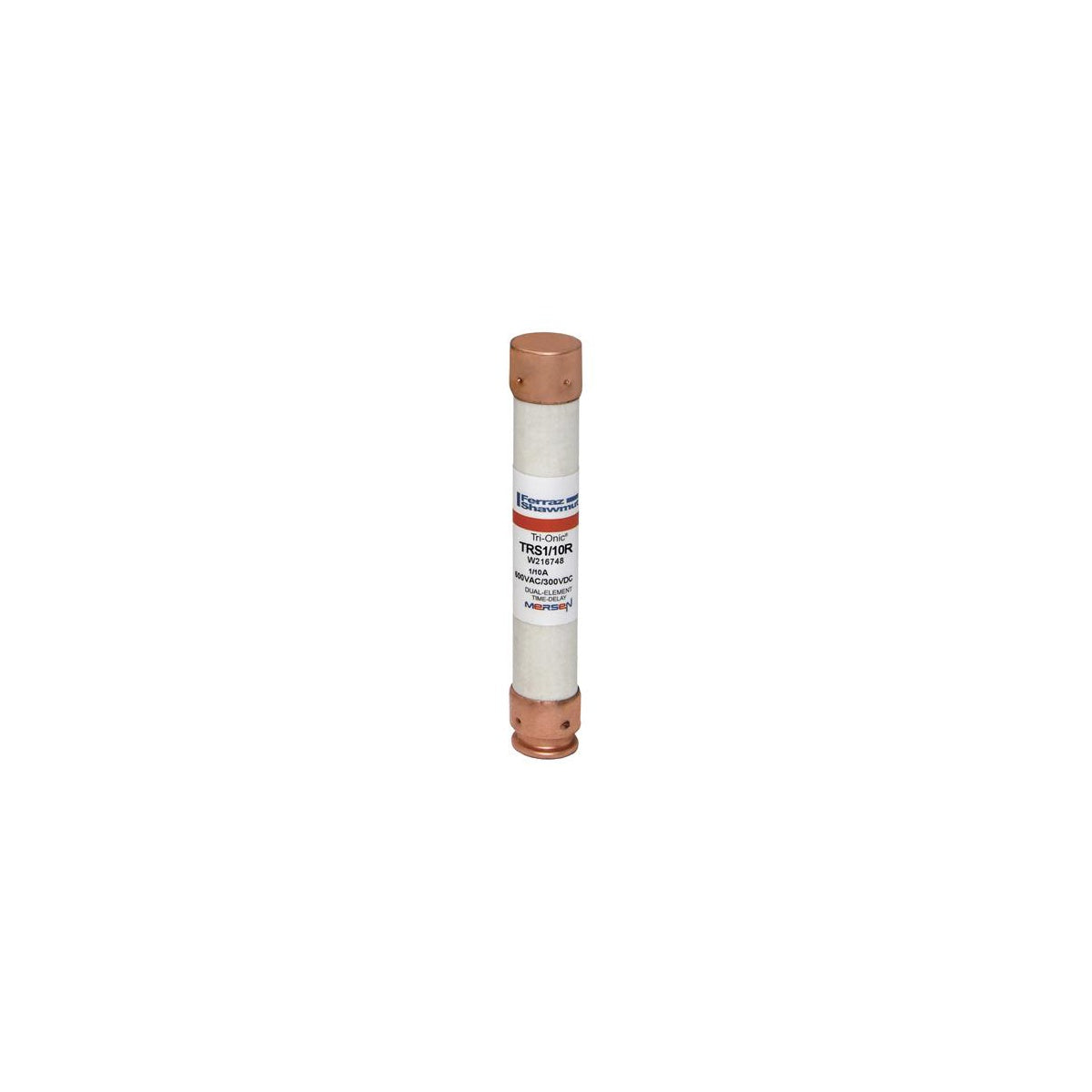

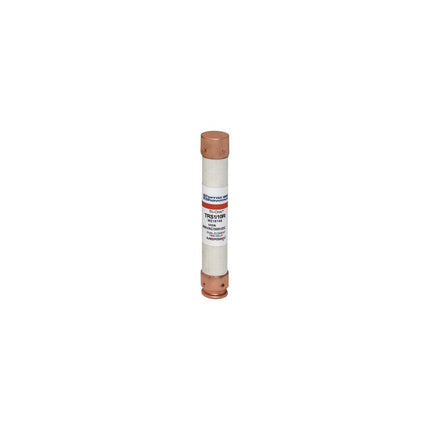

Fuse Tri-Onic® 600V 0.1A Time-Delay Class RK5 TRS Series
SKU: #197765
Part: #TRS1/10R
UPC: 782001748500
Fuse Tri-Onic® 600V 0.1A Time-Delay Class RK5 TRS Series
SKU: #197765
Part: #TRS1/10R
UPC: 782001748500
Description
Fuse Tri-Onic® 600V 0.1A Time-Delay Class RK5 TRS Series
The Fuse Tri-Onic® 600V 0.1A Time-Delay Class RK5 TRS Series by Mersen is engineered for overcurrent protection in motor circuits, mains feeders, branch circuits, transformers, and service entrance equipment. This time-delay fuse safely handles motor start-up and transformer inrush currents, making it suitable for general-purpose electrical distribution and lighting solutions. It features a clip mounting type and ferrule connection, designed for reliable use in industrial electrical installations.
Specifications
- Amperage Rating: 0.1 A
- Voltage Rating: 600V AC
- Fuse Class: Class RK5
- Interrupt Rating: 200 kA
- Frequency: 50 hertz
- Dimensions (L x W x H): 5 in x 0.81 in x 0.81 in
- Diameter: 0.81 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: PolyTube
- Product Weight: 0.1370 lbs
- Manufacturer Part #: TRS1/10R
- Manufacturer: Mersen
Features
- Time-delay characteristic to accommodate harmless motor starting and transformer inrush currents
- Current-limiting design reduces peak let-thru current
- UL/CSA listed to standard 248-12, ensuring compliance with industry safety standards
- Fiberglass body for dimensional stability in harsh industrial environments
- Metal-embossed catalog number and date for traceability and identification
- Rejection-style design to prevent replacement errors when used with recommended fuse blocks
- High-grade silica filler for fast arc quenching and high current limitation
