Fuse Tri-Onic® 250V 8A Time-Delay Midget TRM Series
SKU: #197745
Part: #TRM8
UPC: 782001746537
Fuse Tri-Onic® 250V 8A Time-Delay Midget TRM Series
SKU: #197745
Part: #TRM8
UPC: 782001746537
Description

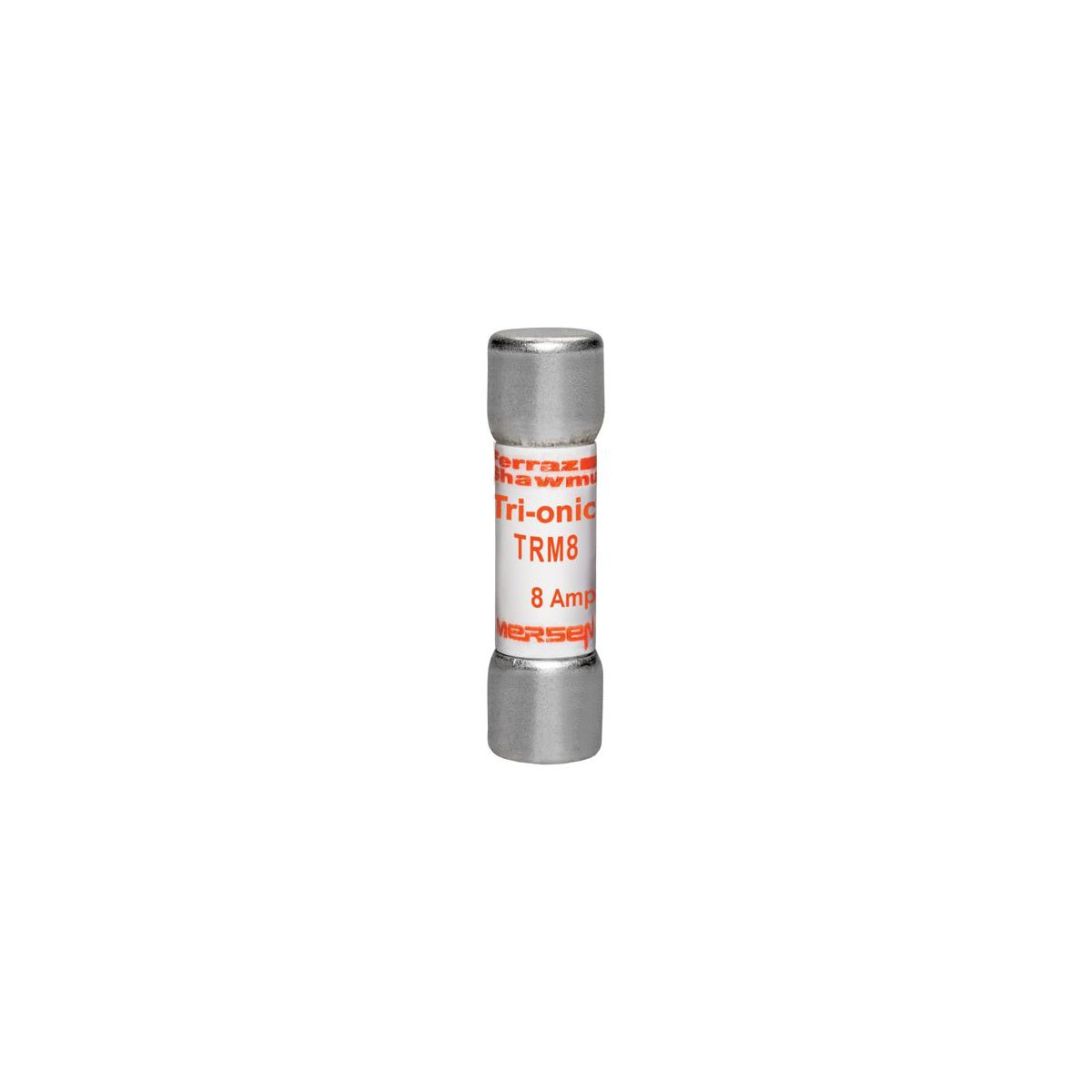

Fuse Tri-Onic® 250V 8A Time-Delay Midget TRM Series – Time-Delay Midget Fuse
The Tri-Onic® TRM time-delay midget fuse is designed for supplemental protection in electrical applications such as small motors, small transformers, lighting circuits, and control circuits. Rated at 250 volts AC and 8 amperes, this fuse provides a 12-second time-delay at 200% rating to accommodate high inrush currents typical in these applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable protection solutions. Not intended for branch circuit protection.
Specifications
- Voltage Rating: 250 VAC
- Amperage Rating: 8 A
- Interrupt Rating: 10 kA
- Fuse Class: Midget
- Dimensions: 1.5 in length × 0.41 in diameter
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0130 lbs
- Manufacturer Part Number: TRM8
Features
- Time-delay design for circuits with high inrush current
- Wide range of ampere ratings available from 1/10 to 30 A (specific product is 8 A)
- Compatible with UltraSafe™ fuse holders
- Compact size suitable for midget fuse blocks (10mm × 38mm)
- UL listed to standard 248-14 and CSA certified to Standard C22.2 No. 248.14
