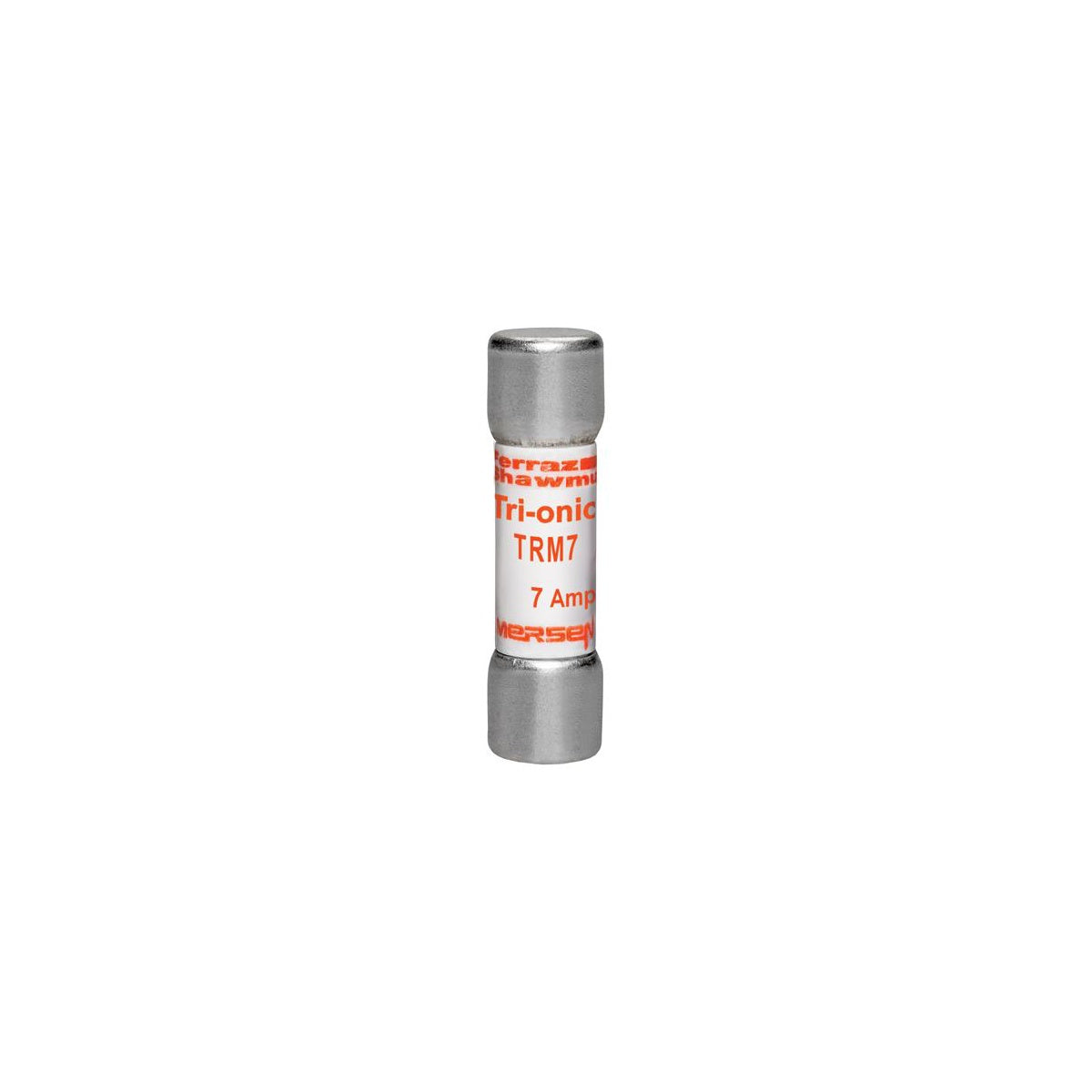

Fuse Tri-Onic® 250V 7A Time-Delay Midget TRM Series

Tri-Onic® TRM time-delay midget fuses are designed for supplemental protection in electrical distributor and lighting solutions applications, particularly suitable for small motors, small transformers, lighting circuits, and control circuits. Rated at 250 volts AC with a 7 ampere rating, these fuses provide a 12-second time-delay at 200% of the rated current to accommodate high inrush loads. They are ideal components for wire and cable protection in industrial and commercial switchgear supplier contexts.

Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 7 A
• Interrupt Rating: 10 kA
• Fuse Class: Midget
• Dimensions: 1.5 in (Length) x 0.41 in (Diameter)
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0130 lbs
• Manufacturer: Mersen
• Manufacturer Part #: TRM7

Features

• Time-delay for circuits with high inrush current
• Supplemental protection for small motors and transformers
• Wide range of ampere ratings available (1/10 to 30A)
• Compatible with UltraSafe™ fuse holders
• Compact 1 1/2" x 13/32" (10mm x 38mm) size
• UL listed to standard 248-14 and CSA certified to Standard C22.2 No. 248.14
