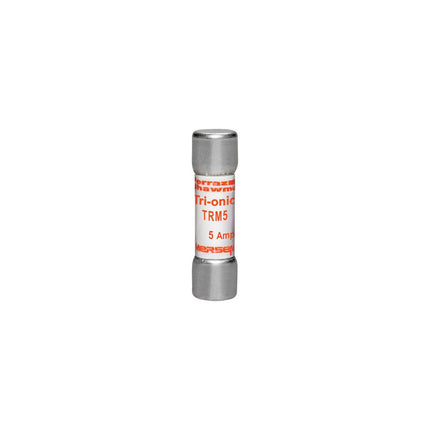

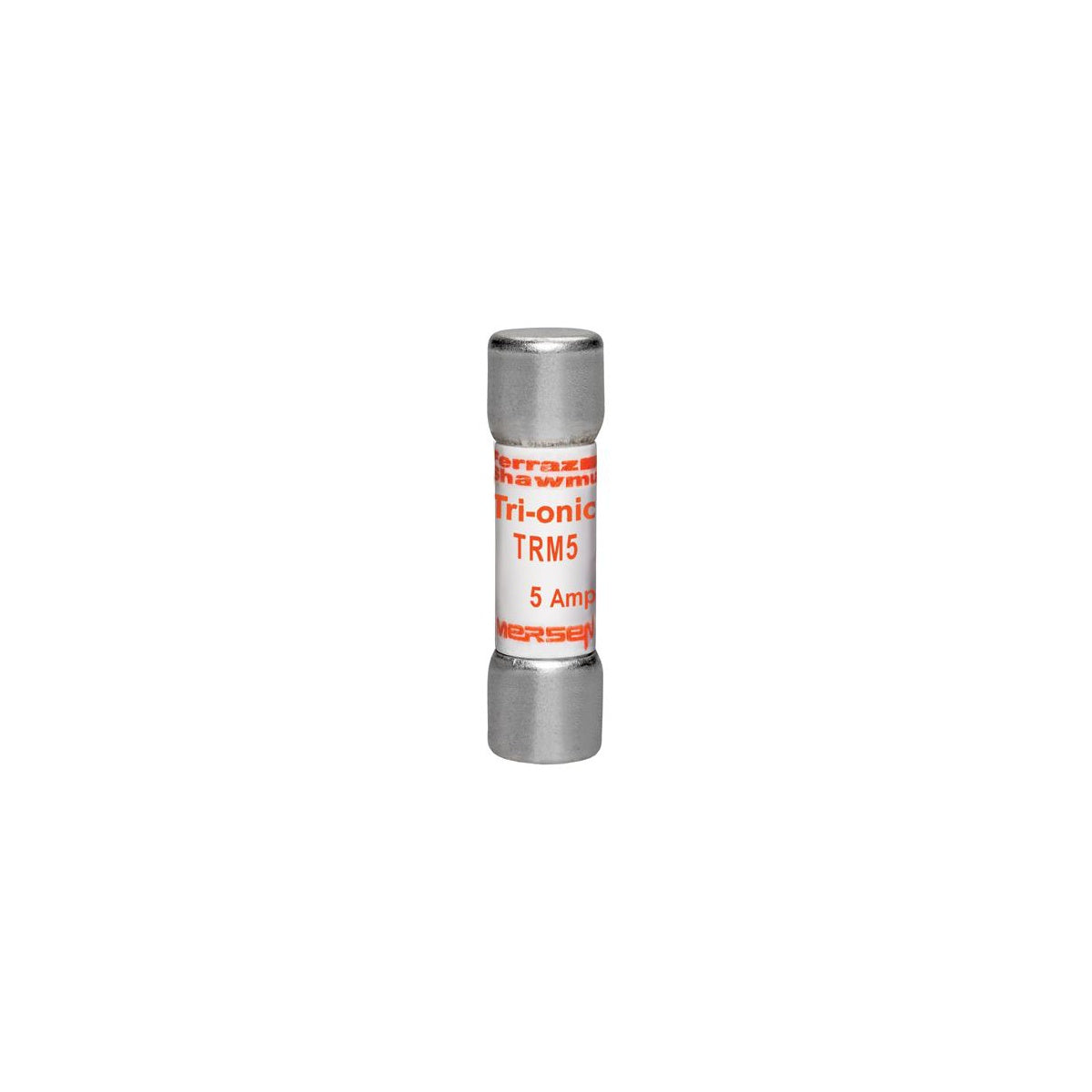

Fuse Tri-Onic® 250V 5A Time-Delay Midget TRM Series

Tri-Onic® TRM time-delay midget fuses are designed for supplemental protection in electrical distributor and lighting solutions applications involving small motors, small transformers, lighting circuits, and control circuits. Rated at 250 volts AC with a 5 ampere rating, these fuses provide a 12-second time-delay at 200% overload to accommodate high inrush currents typical in such applications. They are suitable for wire and cable protection but are not intended for branch circuit protection. As a switchgear supplier component, these fuses offer reliable performance with a 10 kA interrupt rating.

Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 5 A
• Interrupt Rating: 10 kA
• Fuse Class: Midget
• Dimensions: 1.5 in (Length) x 0.41 in (Diameter/Width/Height)
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0130 lbs
• Manufacturer Part Number: TRM5
• Manufacturer: Mersen

Features

• Time-delay characteristic to handle high inrush currents
• Wide range of ampere ratings available (1/10 to 30A) for various applications
• Compact 1 1/2" x 13/32" (10mm x 38mm) size for easy integration
• Compatible with UltraSafe™ fuse holders
• UL listed to standard 248-14 and CSA certified to standard C22.2 No. 248.14
