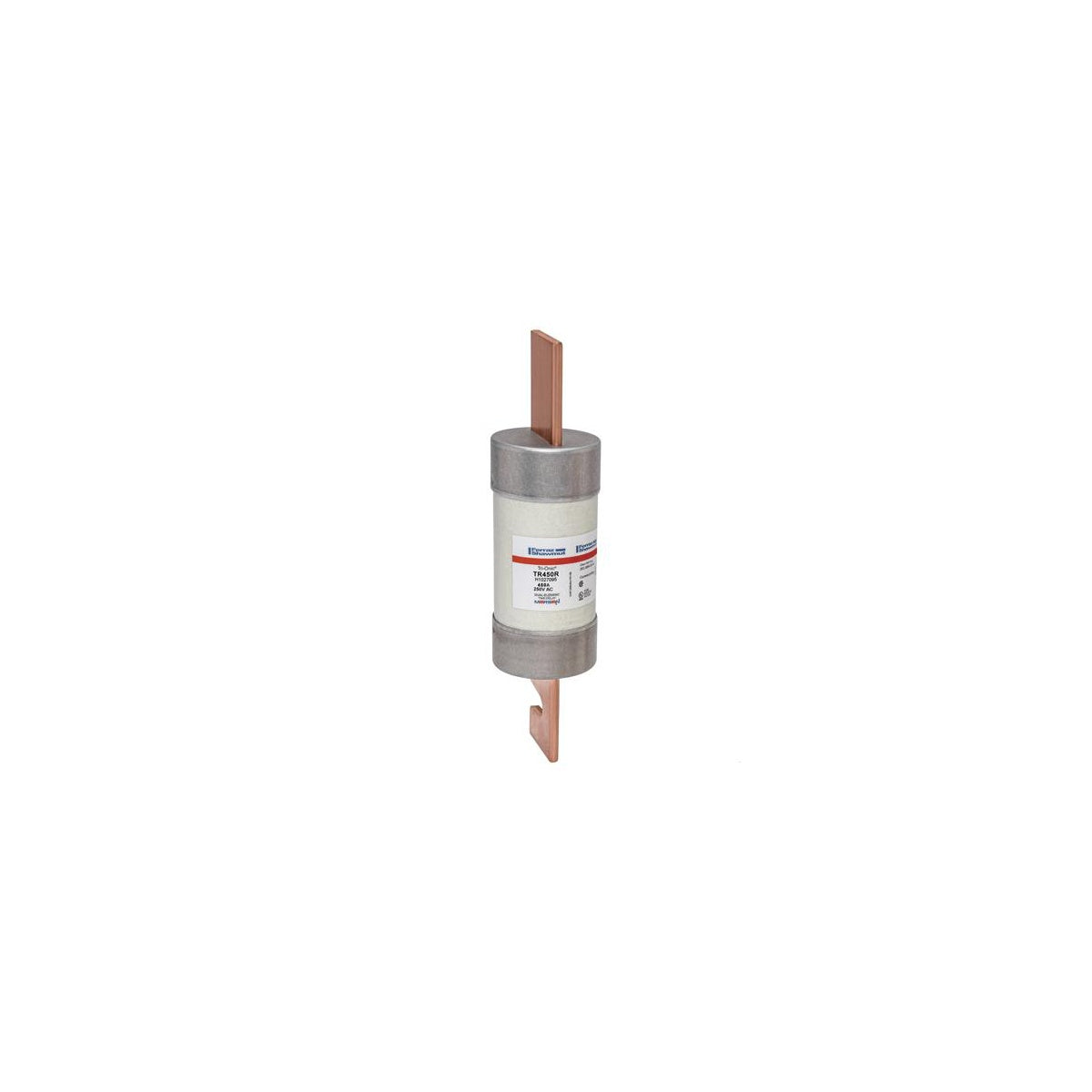

Fuse Tri-Onic® 250V 450A Time-Delay Class RK5 TR Series
SKU: #197518
Part: #TR450R
UPC: 782001748180
Fuse Tri-Onic® 250V 450A Time-Delay Class RK5 TR Series
SKU: #197518
Part: #TR450R
UPC: 782001748180
Total Price: $112.81 per each Sold in increments of 1 each
Description
Fuse Tri-Onic® 250V 450A Time-Delay Class RK5 TR Series – Electrical Overcurrent Protection
The Fuse Tri-Onic® 250V 450A Time-Delay Class RK5 TR Series is designed for precise overcurrent protection in motor circuits, mains feeders, branch circuits, transformers, and service entrance equipment. This fuse features time-delay characteristics that accommodate harmless motor starting and transformer inrush currents, making it suitable for use by electrical distributors and switchgear suppliers in various industrial and commercial electrical applications.
Specifications
- Amperage Rating: 450 A
- Voltage Rating: 250 V
- Interrupt Rating: 200 kA
- Fuse Class: Class RK5
- Frequency: 50 hertz
- Dimensions (L x W x H): 10.38 in x 2.56 in x 2.56 in
- Diameter: 2.56 inches
- Weight: 2.9330 lbs
- Connection Type: Blade
- Mounting Type: Clip
- Insulation Material: PolyTube
- Manufacturer Part Number: TR450R
- Manufacturer: Mersen
Features
- Time-delay design for handling motor starting and transformer inrush currents
- Current-limiting capability for enhanced circuit protection
- Clip mounting for easy installation
- Durable PolyTube insulation for reliable electrical isolation
