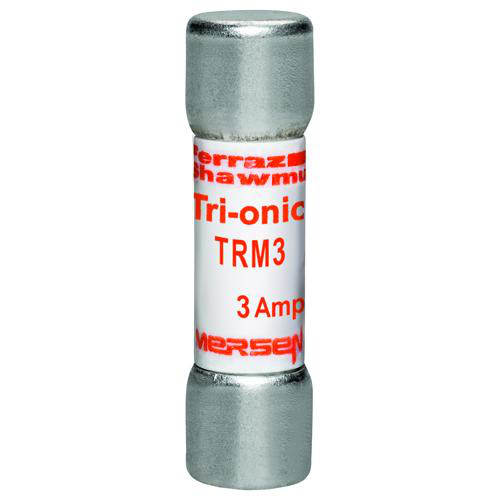

Features

• Numerous ratings for a wide variety of applications
• 250VAC rating in all sizes up to 30A
• Time-delay for circuits with high inrush currrent
• Can be used with UltraSafeTM fuse holders
• 1 1/2" x 13/32" (10mm x 38mm) dimensions

Applications

• Small motors
• Small transformers
• Lighting circuits
• Control circuits

Approvals & Standards

• UL listed to standard 248-14 File E33925
• CSA Certified to Standard C22.2 No. 248.14

Specifications

• Rated voltage AC UL: 250 V
• Ampere Rating: 3 A
• ROHS Compliant: Yes
• Fuse Class: Midget
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Body/Insulating Material: GMG

Product Dimensions

• Product Weight: 0.012 lb
• Product Diameter: 0.41 in
• Product Length: 1.5 in

Packaging Dimensions

• Sell Pack Quantity: 10 Each
• Sell Pack Weight: 0.13 lb
• Sell Pack Width: 0.88 in
• Sell Pack Length: 1.62 in
• Sell Pack Height: 2.12 in
