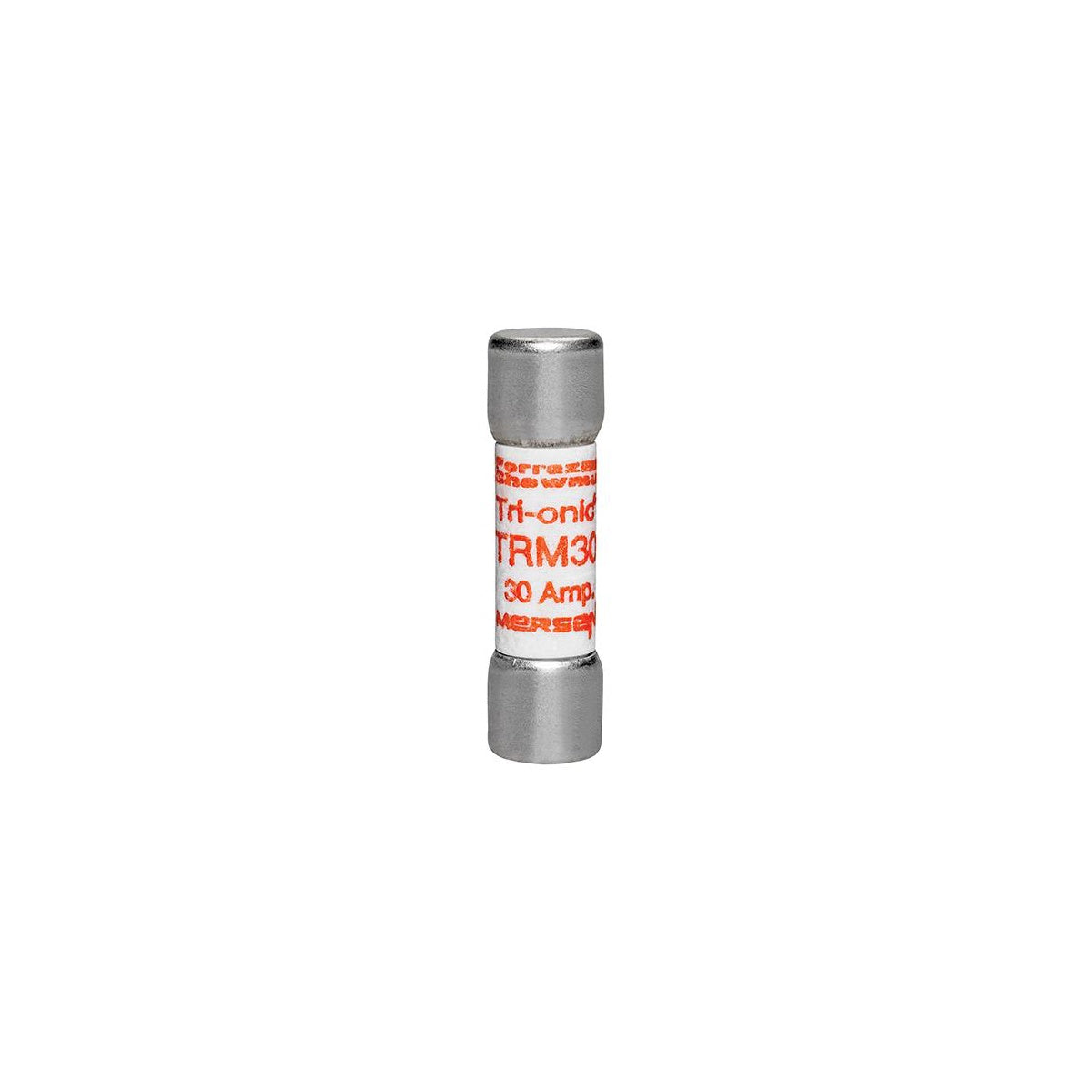

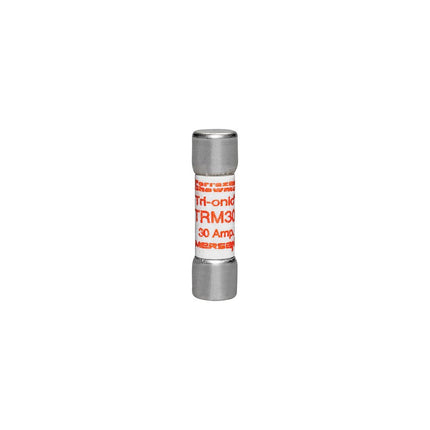

Fuse Tri-Onic® 250V 30A Time-Delay Midget TRM Series - Time-Delay Midget Fuse

Tri-Onic® TRM time-delay midget fuses are designed for supplemental protection in electrical applications such as small motors, small transformers, lighting circuits, and control circuits. Rated at 250 volts AC with ampere ratings from 1/10 to 30A, these fuses provide a 12-second time-delay at 200% rating to accommodate high inrush currents. They are suitable for use by electrical distributors and switchgear suppliers requiring reliable protection for wire and cable circuits. These fuses are not intended for branch circuit protection.

Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 30 A
• Interrupt Rating: 10 kA
• Fuse Class: Midget
• Dimensions: 1.5 in Length x 0.41 in Diameter (10 mm x 38 mm)
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0130 lbs
• Manufacturer: Mersen
• Manufacturer Part #: TRM30

Features

• Time-delay design for circuits with high inrush current
• Wide range of ampere ratings from 1/10 to 30A
• 250 VAC rating across all sizes up to 30A
• Compatible with UltraSafe™ fuse holders
• Compact midget size for versatile applications
• UL listed to standard 248-14 (File E33925)
• CSA Certified to Standard C22.2 No. 248.14

Downloads & Links

• Curves
• Spec Sheet
• Spec Sheet FR
• Drawings
