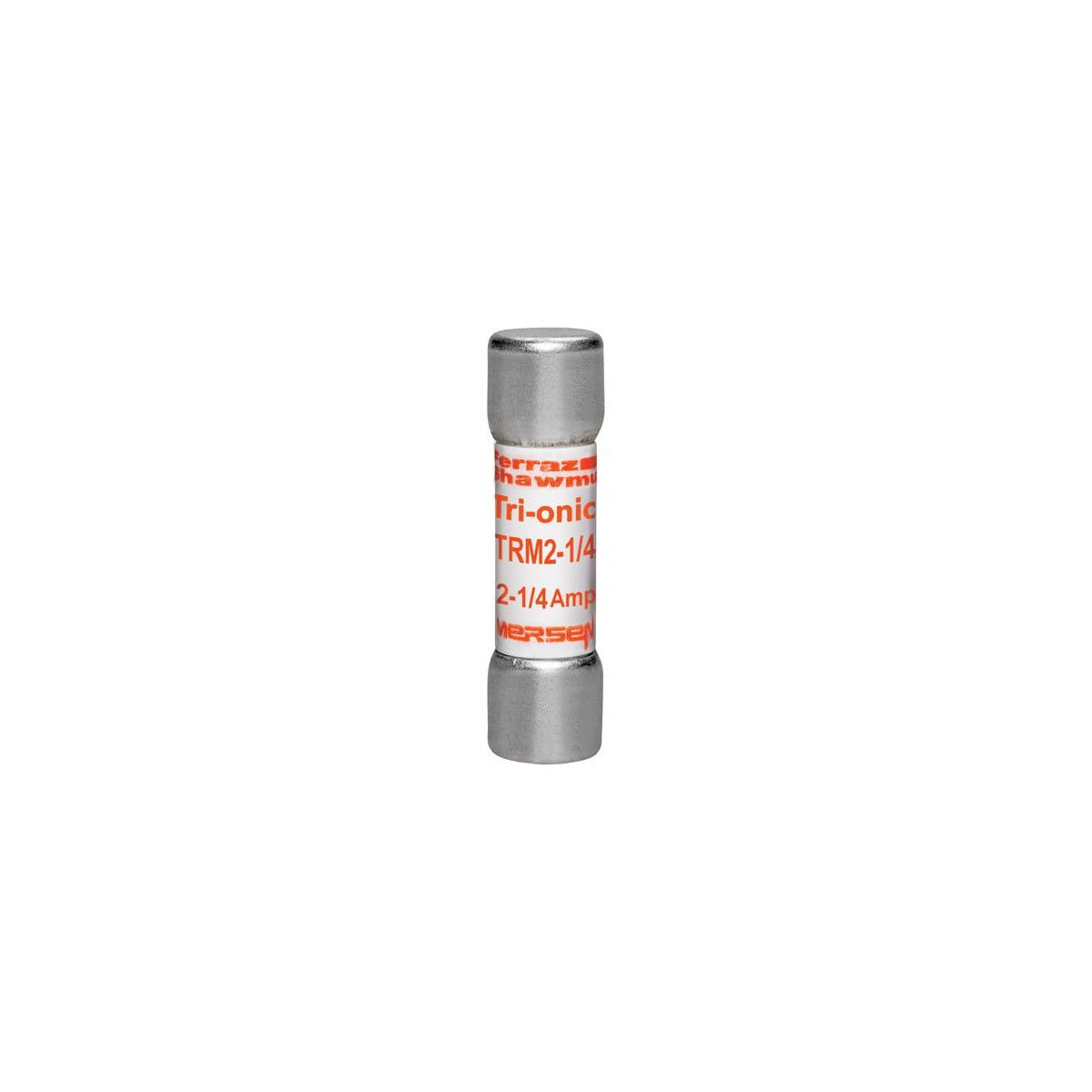

Fuse Tri-Onic® 250V 2.25A Time-Delay Midget TRM Series
SKU: #197689
Part: #TRM2-1/4
UPC: 782001743314
Fuse Tri-Onic® 250V 2.25A Time-Delay Midget TRM Series
SKU: #197689
Part: #TRM2-1/4
UPC: 782001743314
Description
Fuse Tri-Onic® 250V 2.25A Time-Delay Midget TRM Series
The Fuse Tri-Onic® TRM series by Mersen is a time-delay midget fuse rated for 250 volts AC, designed for supplemental protection in electrical applications involving small motors, small transformers, lighting circuits, and control circuits. This fuse provides 12 seconds of time-delay at 200% of its amperage rating to accommodate high inrush current loads, making it suitable for wire and cable protection in specialized electrical distribution and lighting solutions. It is not intended for branch circuit protection.
Specifications
- Voltage Rating: 250 VAC
- Amperage Rating: 2.25 A
- Interrupt Rating: 10 kA
- Fuse Class: Midget
- Dimensions: 1.5 in (length) x 0.41 in (width) x 0.41 in (height)
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0130 lbs
- Manufacturer Part Number: TRM2-1/4
- Manufacturer: Mersen
Features
- Time-delay design for circuits with high inrush current
- Wide range of amperage ratings available (1/10 to 30A)
- 250VAC rating across all sizes up to 30A
- Compatible with UltraSafe™ fuse holders
- Compact midget fuse size (10mm x 38mm)
