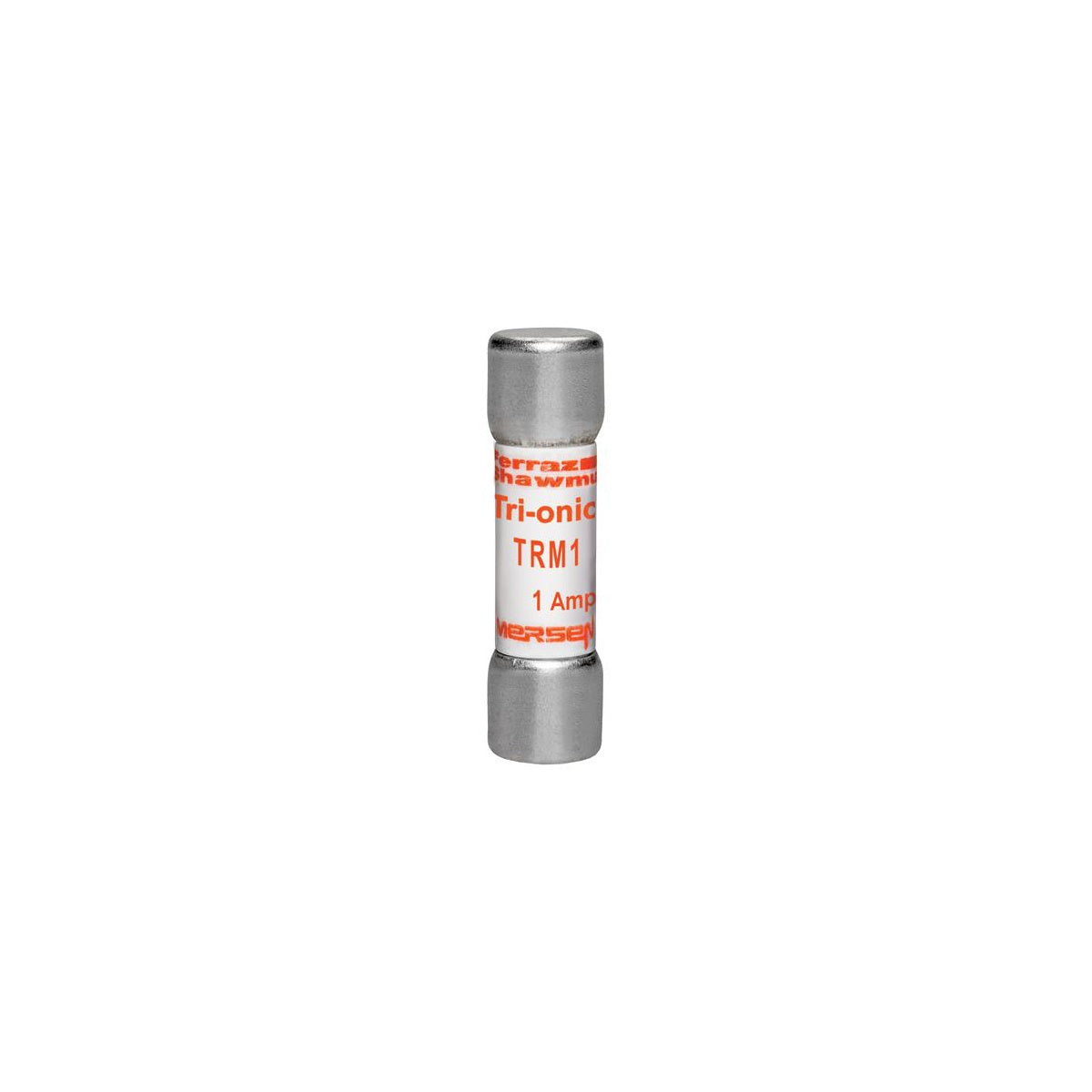

Fuse Tri-Onic® 250V 1A Time-Delay Midget TRM Series

The Tri-Onic® TRM time-delay midget fuse is designed for supplemental protection in electrical applications with high inrush currents. Rated at 250 volts AC and 1 ampere, it is suitable for small motors, small transformers, lighting circuits, and control circuits. This fuse is ideal for electrical distributors and switchgear suppliers requiring reliable protection in wire and cable systems with moderate current demands.

Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 1 A
• Interrupt Rating: 10 kA
• Fuse Class: Midget
• Dimensions: 1.5 in (Length) x 0.41 in (Diameter)
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0130 lbs

Features

• Time-delay design with 12 seconds delay at 200% rating for protection of high inrush loads
• Wide range of ampere ratings available (1/10 to 30A), with this model at 1A
• Compatible with UltraSafe™ fuse holders
• Compact size suitable for space-constrained applications
• UL Listed to standard 248-14 and CSA Certified to standard C22.2 No. 248.14
