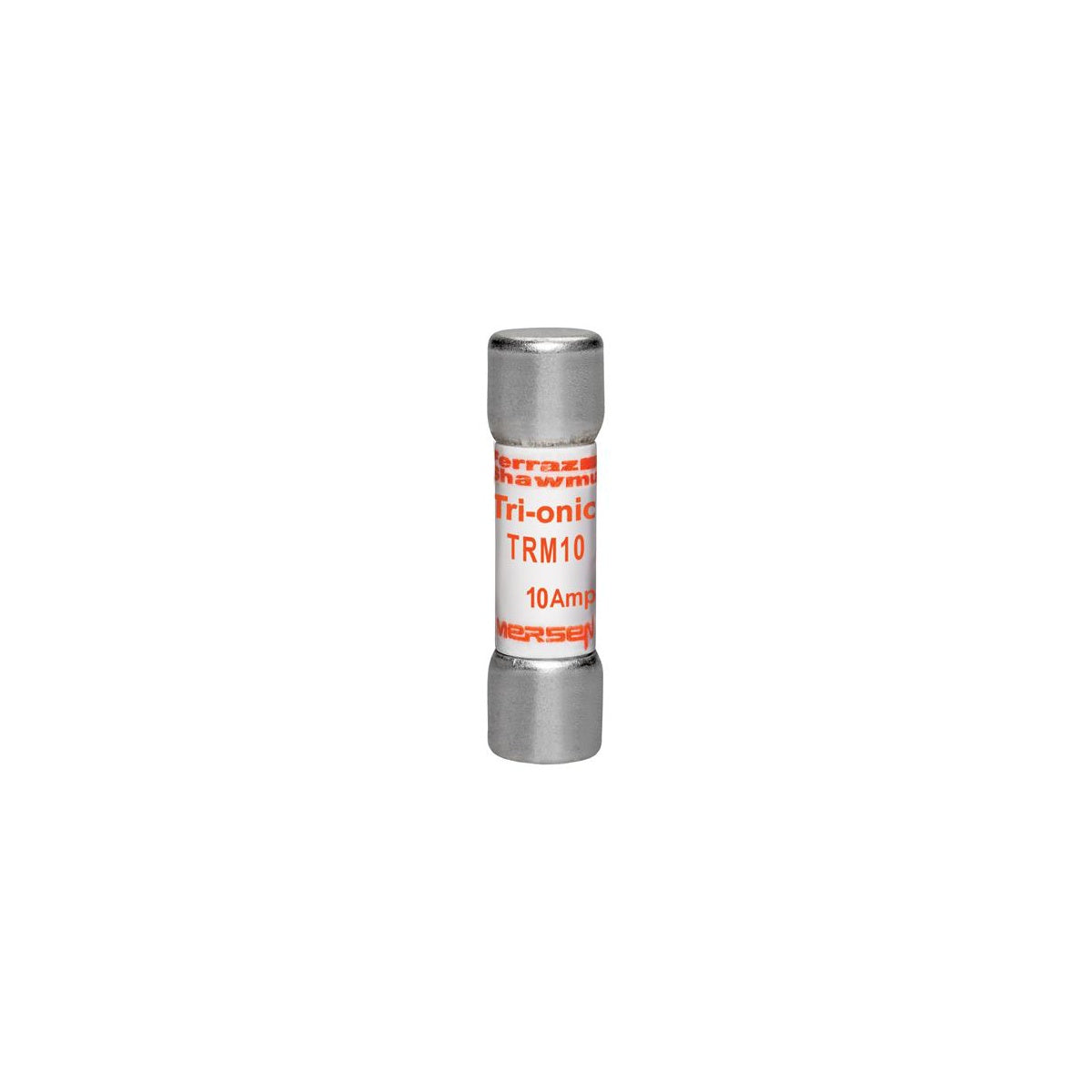

Fuse Tri-Onic® 250V 10A Time-Delay Midget TRM Series

The Fuse Tri-Onic® TRM Series is a time-delay midget fuse designed for supplemental protection in electrical applications involving small motors, small transformers, lighting circuits, and control circuits. Rated at 250 volts AC with amperage ratings up to 30A, this fuse is suitable for circuits with high inrush current, providing a 12-second time-delay at 200% rating. It is intended for use in specialized electrical distribution and lighting solutions where reliable protection is required but is not designed for branch circuit protection.

Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 10 A
• Interrupt Rating: 10 kA
• Fuse Class: Midget
• Dimensions: 1.5 in (Length) x 0.41 in (Diameter)
• Mounting Type: Clip
• Connection Type: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0130 lbs
• Manufacturer: Mersen
• Manufacturer Part Number: TRM10

Features

• Time-delay design for protection of circuits with high inrush current
• Rated for 250 VAC in all sizes up to 30A
• Provides supplemental protection for small motors, small transformers, and other high inrush loads
• Compatible with UltraSafe™ fuse holders
• Compact size with 1 1/2" x 13/32" (10mm x 38mm) dimensions
