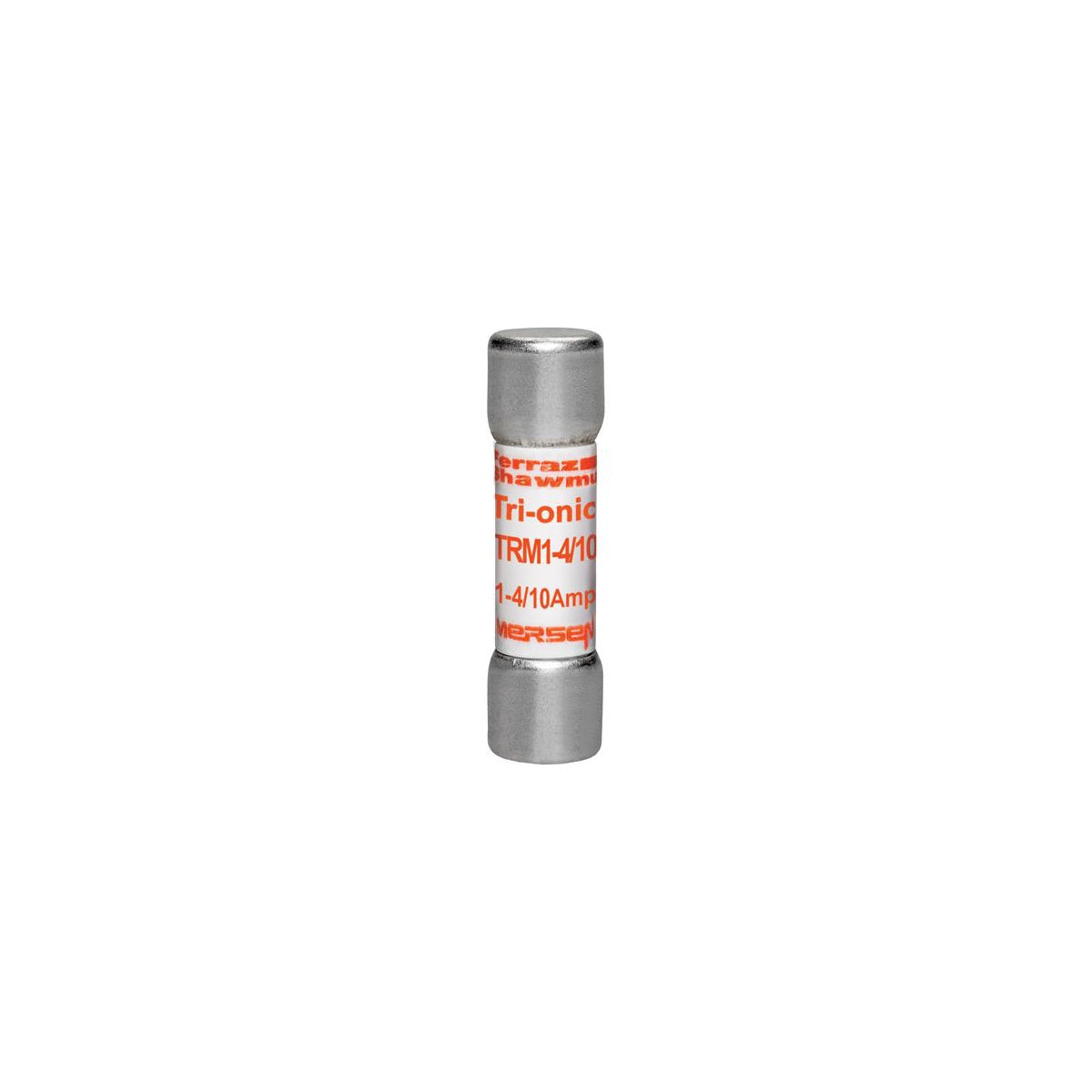

Fuse Tri-Onic® 250V 1.4A Time-Delay Midget TRM Series
SKU: #373450
Part: #TRM1-4/10
UPC: 782001743239
Fuse Tri-Onic® 250V 1.4A Time-Delay Midget TRM Series
SKU: #373450
Part: #TRM1-4/10
UPC: 782001743239
Description
Fuse Tri-Onic® 250V 1.4A Time-Delay Midget TRM Series – Time-Delay Midget Fuse
The Fuse Tri-Onic® TRM Series is a time-delay midget fuse rated at 250 volts AC, designed for supplemental protection in electrical applications involving small motors, small transformers, lighting circuits, and control circuits. Its 12-second time-delay at 200% rating allows it to handle high inrush currents effectively, making it suitable for use in specialized electrical distributor and lighting solutions contexts. This fuse is not intended for branch circuit protection.
Specifications
- Voltage Rating: 250 VAC
- Amperage Rating: 1.4 A
- Interrupt Rating: 10 kA
- Fuse Class: Midget
- Dimensions: 1.5 in (Length) x 0.41 in (Width) x 0.41 in (Height)
- Diameter: 0.41 inches
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0130 lbs
- Manufacturer Part Number: TRM1-4/10
- Manufacturer: Mersen
Features
- Time-delay characteristic for circuits with high inrush current
- Rated for 250V AC in all sizes up to 30A
- Provides supplemental protection for small motors and transformers
- Compact midget size with standardized 10mm x 38mm dimensions
- Compatible with UltraSafe™ fuse holders
