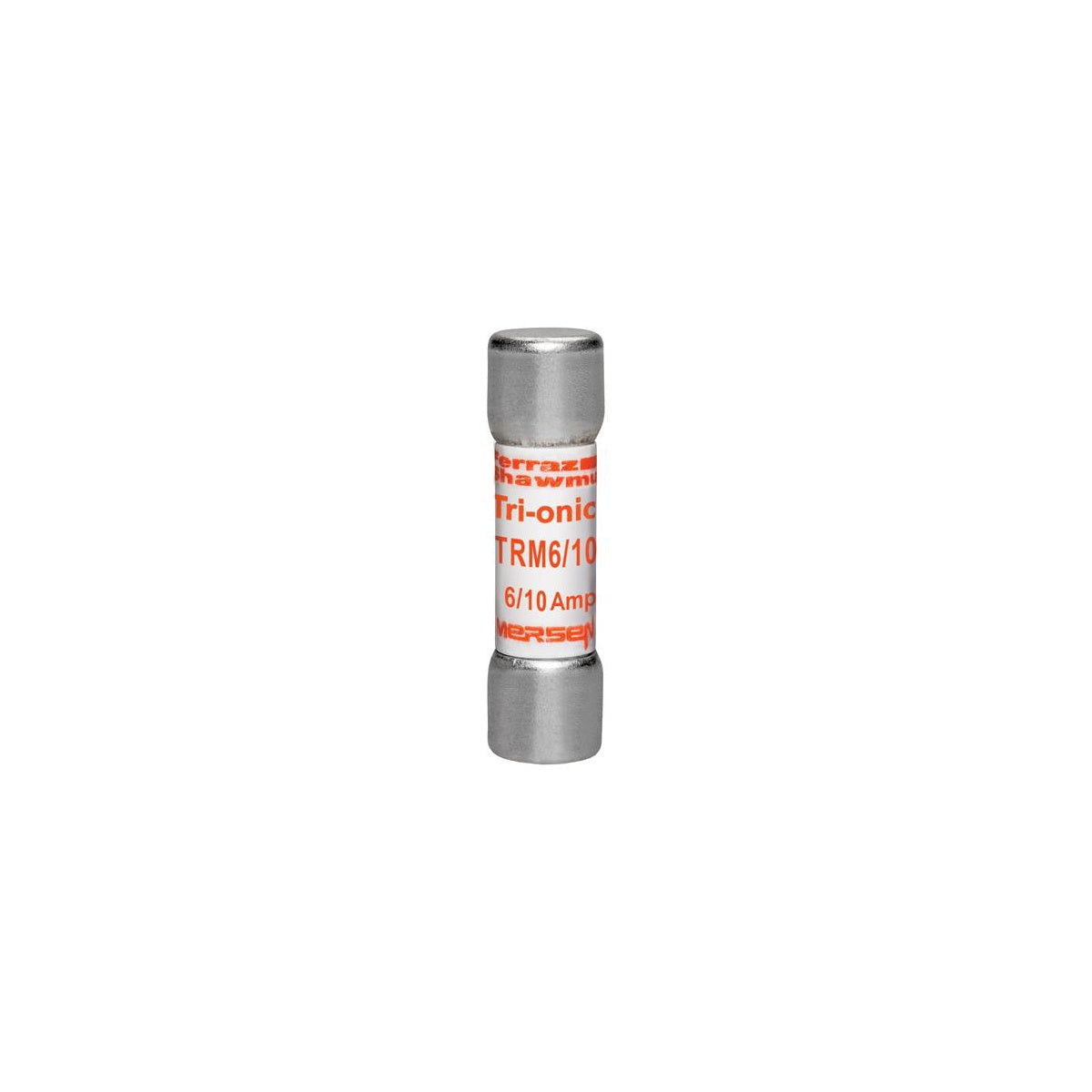

Fuse Tri-Onic® 250V 0.6A Time-Delay Midget TRM Series
SKU: #197738
Part: #TRM6/10
UPC: 782001743130
Fuse Tri-Onic® 250V 0.6A Time-Delay Midget TRM Series
SKU: #197738
Part: #TRM6/10
UPC: 782001743130
Description
Fuse Tri-Onic® 250V 0.6A Time-Delay Midget TRM Series - Time-Delay Midget Fuse
The Mersen Fuse Tri-Onic® TRM Series is a time-delay midget fuse rated for 250 volts AC, designed for supplemental protection in electrical applications involving small motors, small transformers, lighting circuits, and control circuits. This fuse offers a 12-second time-delay at 200% of its amperage rating, making it suitable for circuits with high inrush currents. It is a reliable component for electrical distributors and switchgear suppliers requiring precise protection in wire and cable systems.
Specifications
- Voltage Rating: 250 VAC
- Amperage Rating: 0.6 A
- Interrupt Rating: 10 kA
- Fuse Class: Midget
- Dimensions: 1.5 in length x 0.41 in diameter
- Mounting Type: Clip
- Connection: Ferrule
- Insulation Material: GMG
- Product Weight: 0.0130 lbs
Features
- Time-delay characteristic for circuits with high inrush current
- Rated for use up to 30A (this specific model is 0.6A)
- Provides supplemental protection for small motors and transformers
- Compatible with UltraSafe™ fuse holders
- Compact midget size (10mm x 38mm) suitable for space-constrained applications
- UL Listed and CSA Certified for safety and compliance
