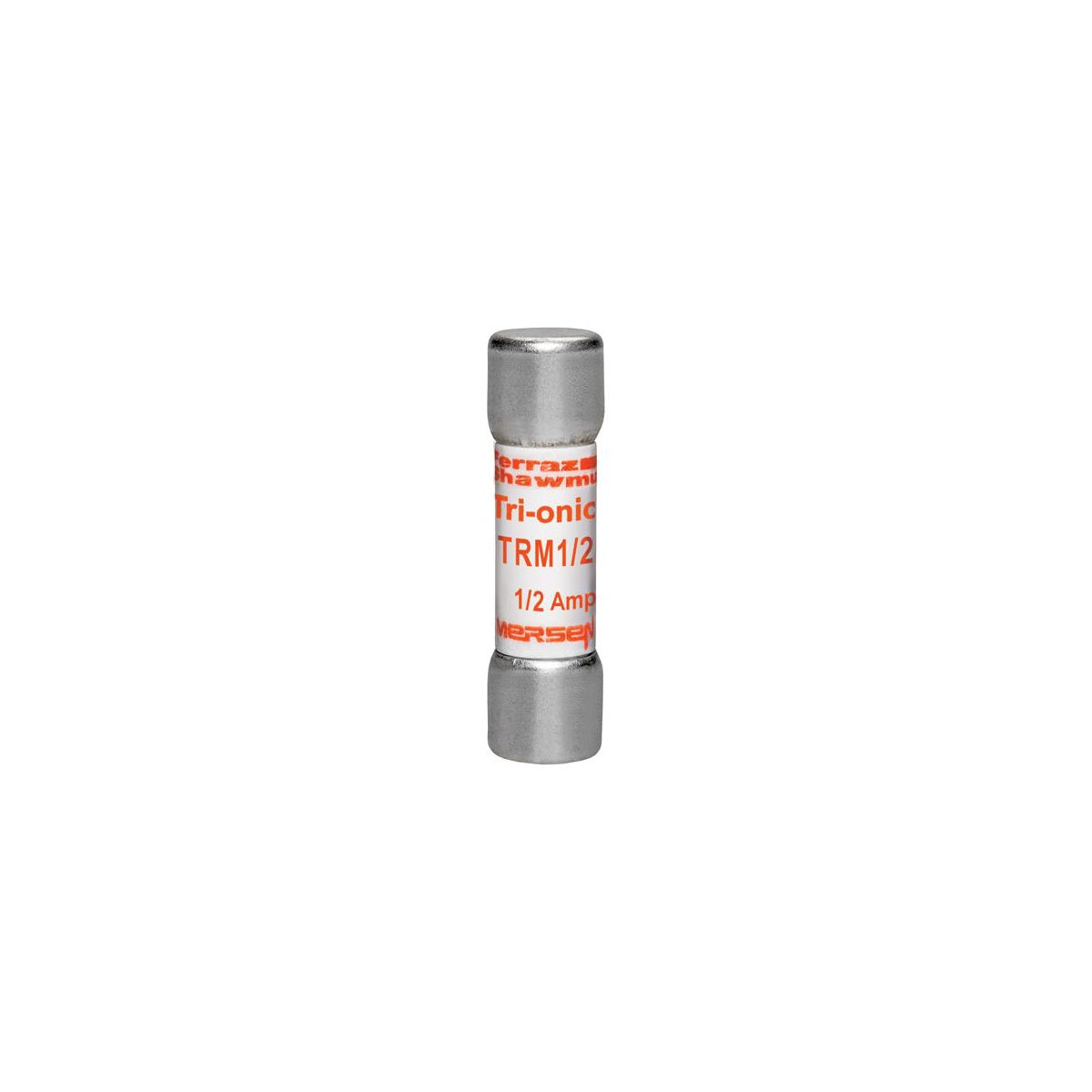

Fuse Tri-Onic® 250V 0.5A Time-Delay Midget TRM Series

Tri-Onic® TRM time-delay midget fuses are designed for supplemental protection in electrical applications involving small motors, small transformers, lighting circuits, and control circuits. Rated at 250 volts AC, these fuses provide reliable time-delay protection to accommodate high inrush currents typical in such loads. Suitable for electrical distributors and switchgear suppliers requiring precise protection components within wire and cable systems.

Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 0.5 A
• Interrupt Rating: 10 kA
• Fuse Class: Midget
• Dimensions: 1.5 in (length) x 0.41 in (diameter)
• Mounting Type: Clip
• Connection: Ferrule
• Insulation Material: GMG
• Product Weight: 0.0130 lbs
• Manufacturer Part Number: TRM1/2

Features

• 12 seconds time-delay at 200% rating for protection of high inrush loads
• Wide amperage range available from 1/10 to 30A (this unit is 0.5A)
• 250 VAC rating for all sizes up to 30A
• Compatible with UltraSafe™ fuse holders
• Compact 1 1/2" x 13/32" (10mm x 38mm) dimensions for versatile installation
• UL listed to standard 248-14 and CSA certified to C22.2 No. 248.14
