Fuse Holders 600V 30A Class CC 3-pole No Indicator
SKU: #198156
Part: #USCC3
UPC: 782001829902
Fuse Holders 600V 30A Class CC 3-pole No Indicator
SKU: #198156
Part: #USCC3
UPC: 782001829902
Description

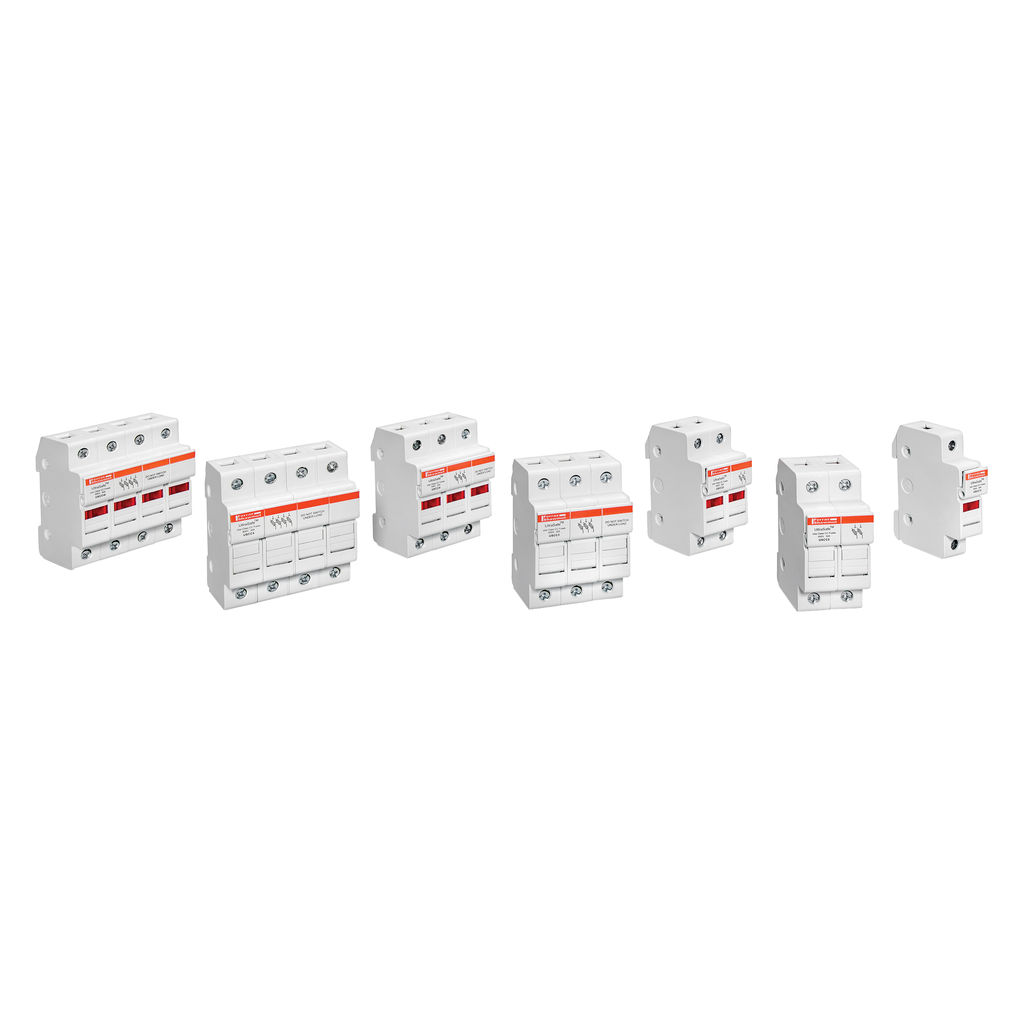

Fuse Holders 600V 30A Class CC 3-pole No Indicator – Modular Fuse Holders
The Mersen Fuse Holders 600V 30A Class CC 3-pole No Indicator are designed for safe and compact fuse mounting in electrical distribution, control circuits, and lighting solutions. These modular fuse holders support all circuits up to 600 volts AC and DC circuits up to 1000 volts DC, including photovoltaic applications. Ideal for electrical distributors and switchgear suppliers, they accommodate Class CC fuses with a 30 ampere rating and provide a secure, tool-free fuse change experience with finger-safe IP20 protection.
Specifications
- Manufacturer: Mersen
- Manufacturer Part #: USCC3
- Class: Class CC
- Amperage Rating: 30 A
- Voltage Rating: 600 VAC/DC Maximum
- Number of Poles: 3-pole
- Material: Glass Filled Polycarbonate
- Mounting: DIN Rail
- Connection Type: Pressure Plate
- Frequency: 50 hertz
- Maximum Operating Temperature: 80 degrees Celsius
- Dimensions (L x W x H): 3.07 in x 2.07 in x 2.32 in
- Product Weight: 0.43 lbs
- Country of Origin: China
Features
- Finger-safe IP20 protection compliant with IEC and DIN standards
- Compact design saving up to 15% mounting space
- Tool-free, quick fuse replacement with flick-of-a-finger operation
- Durable polyamide body with exceptional insulating properties
- Snap-on installation onto 35mm DIN rail for efficient panel building
- Compatible with Class CC fuses chosen for Type “2” No Damage protection
