Fuse Holders 600V 30A Class CC 2-pole Light Indicator – Modular Fuse Holders

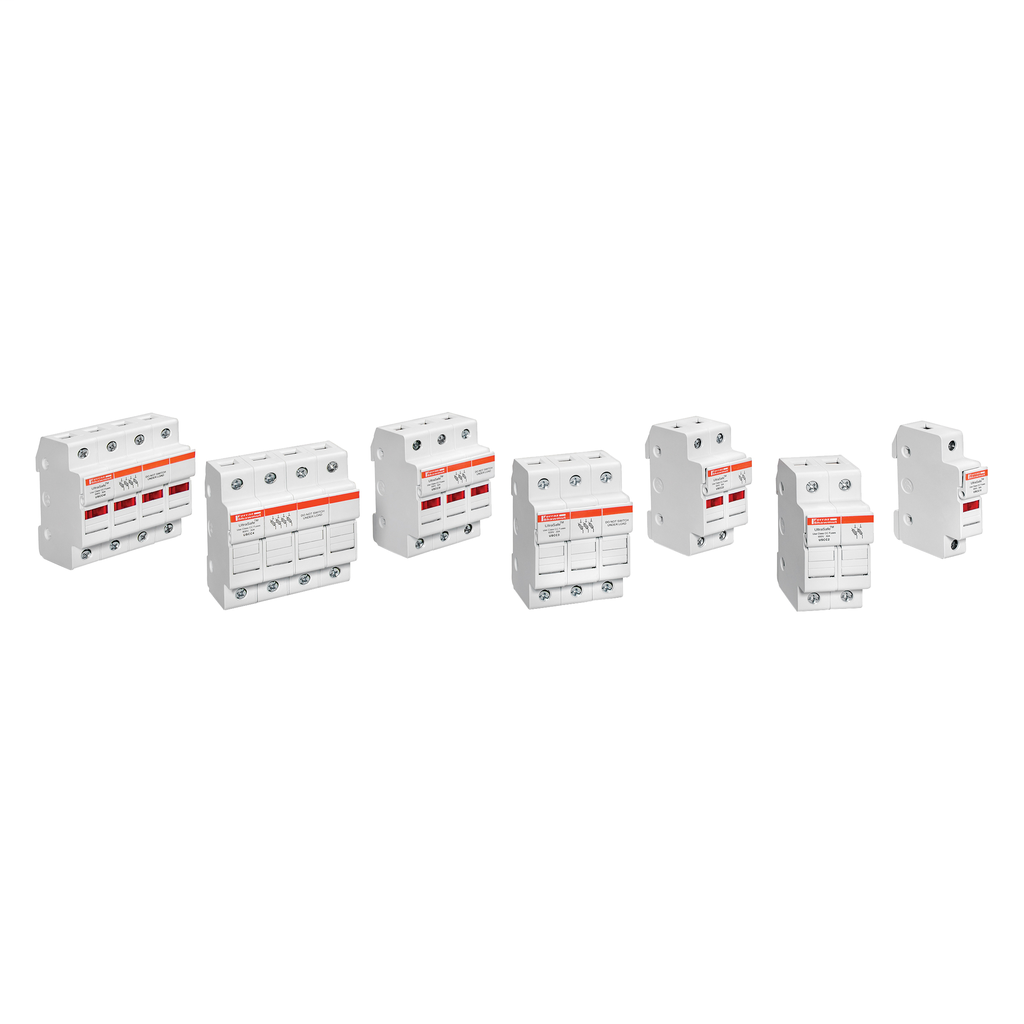

The Mersen Fuse Holders 600V 30A Class CC 2-pole Light Indicator provide a compact and safe solution for electrical distributors and switchgear suppliers needing reliable fuse holders for circuits up to 600 volts. Designed for use with Class CC fuses, these modular holders support up to 30 amperes and feature an optional visual blown-fuse indicator for quick fault detection. Ideal for motor, control circuit, transformer, and photovoltaic applications, they enable efficient panel building with DIN rail mounting and space-saving design.

Specifications

• Application: All circuits up to 600 volts for motors, control circuits, transformers, etc.; DC circuits up to 1000VDC including photovoltaic applications; Non-load disconnect
• Amperage Rating: 30 A
• Class: Class CC
• Number of Poles: 2-pole
• Material: Glass Filled Polycarbonate
• Mounting: DIN Rail
• Connection: Pressure Plate
• Frequency: 50 hertz
• Dimensions (L x W x H): 3.07 in x 1.38 in x 2.32 in
• Max. Operating Temperature: 80 degrees Celsius
• Weight: 0.2800 lbs
• Country of Origin: China
• Manufacturer Part #: USCC2I

Features

• Finger-safe IP20 protection compliant with IEC and DIN standards for safe fuse changing
• Optional visual blown-fuse indicator lens (red) for easy status monitoring
• Compact design saves up to 15% mounting space
• Quick, tool-free fuse replacement
• Durable polyamide body with exceptional insulating properties
• Compatible with Class CC fuses chosen for Type "2" No Damage protection
• Snap-on installation to standard 35mm DIN rail for efficient panel assembly
